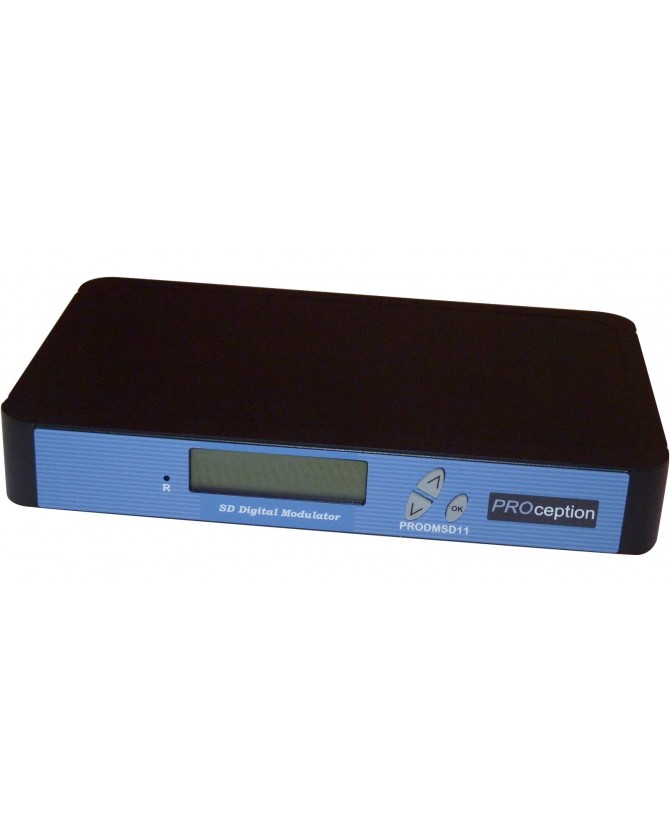

Proception - PRODMSD11

Item Code: PRODMSD11

Brand: Proception

ProCeption - PRODMSD11

Products description

The PROception Digital Modulator is perfect for multi-video distribution solutions in both home entertainment system and commercial/institutional markets. Use for converting any composite A/V analogue signals into a DVB-T multiplex for viewing on a digital TV system.

Installations and applications include hotels, motels, sports bars, restaurants, hospitals, casinos, business and university campuses, etc.

Typical applications would include CCTV single / quad output, locally produced video, distribution of Freesat, Sky, Virgin, BT, DVD, PC, CCTV etc.

The channel produced appears in the DTT channel listing along with the other TV channels.

Features:

• Converts a composite A/V signal into a flexible DVB-T Multiplex.

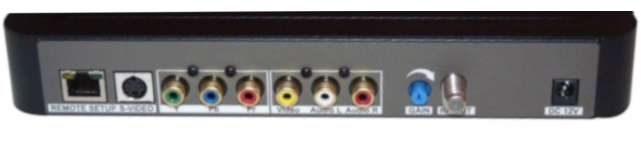

• S-Video, Component and Composite inputs.
• Fully programmable via LCD control (on front panel) or via GUI interface.
• All interfaces designed to be clear, simple and user-friendly. Easy to install with factory pre-set for a typical installation
• Output Level 105 dBuV.
• Includes both manual gain control (+/- 20 dB) and software gain adjustment of (+/- 20 dB) giving total range capability of (+/- 40 dB) to eliminate problems due to high signal strength.
• LCN Function, fully agile setting.
• Easy integration into an existing network.
• RJ45 port for easy setup from remote location.
• Cool & silent operation.
• 2K & 8K Carrier Modes.
• Firmware up-gradeable.

Specifications
