Optical TV - Optical to dSCR Converter (sky Q), Global D000199

Item Code : D000199

Special Notice: 98.00

Special Notice: 98.00

Product Details

Global Invacom™   Optical Fibre TV - Optical to Coax Converter

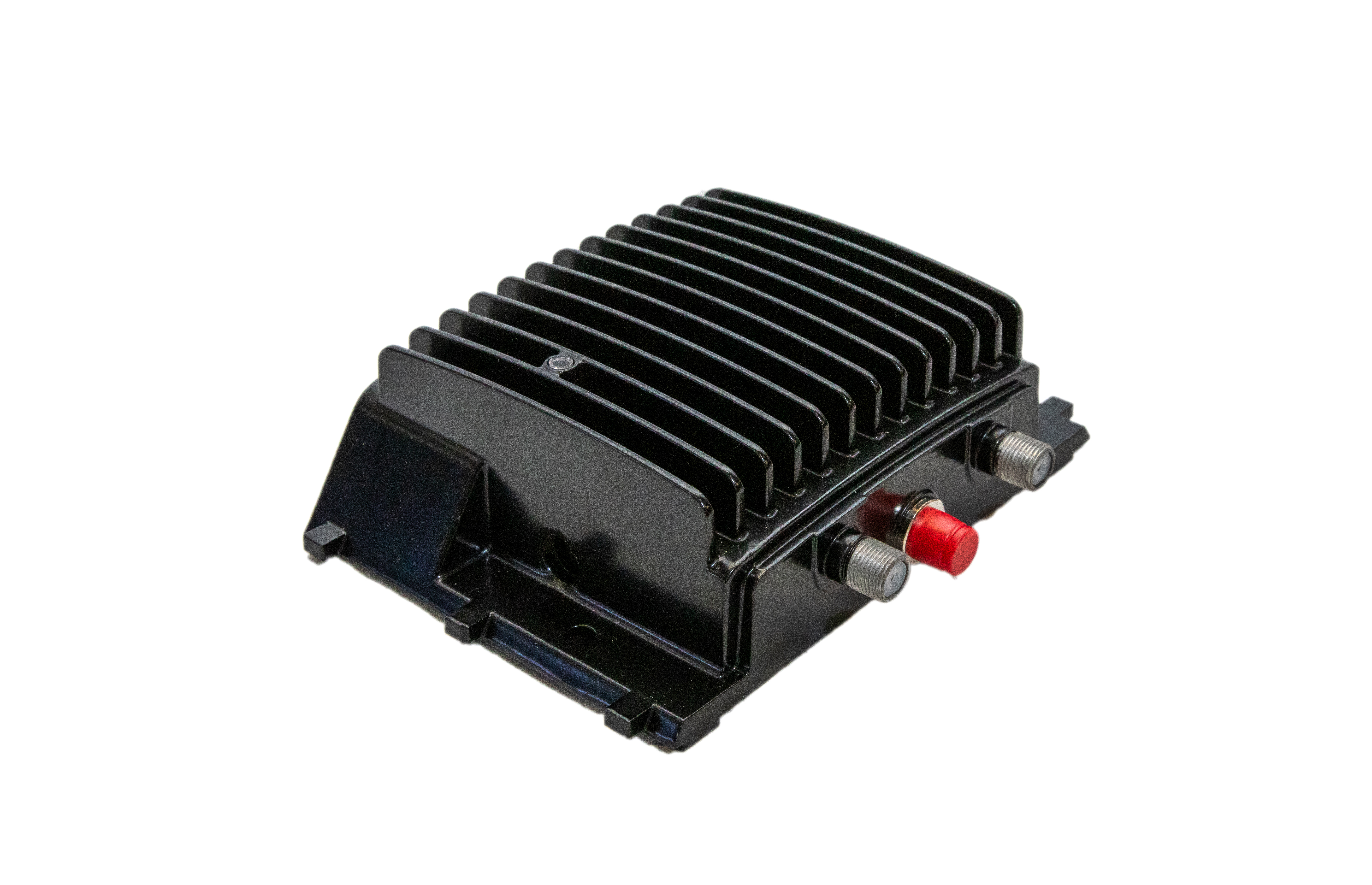

Global Invacom - Optical TV - Optical to dSCR Converter (sky Q), Global D000199

Item Code: D000199

Brand: Global Invacom

Manufacturer: Global Invacom


The dSCR GTU converts optical power to RF power (4 satellite bands and FM,DAB,DTT ). The terrestrial signals are overlaid onto both output ports.

The dSCR GTU unit has built in AGC which allows a wide dynamic range of optical levels without affecting output power and quality. One LED indicator allows the user to monitor the status of the unit.

The dSCR GTU unit D000199 will work in legacy, analogue SCR (aSCR) and digital SCR (dSCR) modes.


  • Optical to RF convertor (Satellite and FM,DAB,DTT )
  • Compatible with SKY Q, EN50494, EN50607, freesat, SKY SCR & SKY Classic/Legacy
  • Automatic Gain Control (AGC)
  • LED Status indication for diagnostics
  • Discrete stylised design for home installs


Product Part No. dSCR GTU D000199
Satellite (Electrical) RF frequency 950-2150MHz
Output impedance 75Ω
Return loss 10dB
Gain variation across band 10dB
Nominal output level (Legacy) 75dBµV additional variation can occur due to satellite transmitted signal levels.
Nominal output level (dSCR) 72dBµV
Terrestrial rejection 35dB
DTT, DAB & FM (Electrical) RF frequency DTT 470-790MHz
RF frequency DAB 174-240MHz
RF frequency FM 88-108MHz
Nominal impedance 75Ω
Return loss 8dB
Nominal DTT output 71dBµV For 6 multiplexes
Gain variation across band 5dB
950-2150MHz rejection 35dB
FM.DAB,DTT & Satellite (Optical) Optical wavelength 1100nm to 1650nm
Optical input power (typical) -12dBm -3dBm For systems with 19.2dB optical budget
Control signals (Legacy only) Vertical select voltage 11.5-14.0V, 13V nominal
Horizontal select voltage 16-19V, 18V nominal
Low band no tone
High band 22KHz tone
DC specification Input voltage 20V
Current consumption 430mA max
Connectors Output F x 2
Power supply 2.1mm Jack
Optical input FC/PC
Environmental Specification Operating temperature 0°C to +50°C
Storage temperature -40°C to +70°C
Standards Cenelec EN 50607
Cenelec EN 50494
Optical cabling Fibre type Single mode
Standard GI - approved G657a
Dimensions Size (W x H x D) 134mm x 105mm x 43mm
Size with cover (W x H x D) 136mm x 135mm x 46mm with Cover
Weight 450g excluding PSU
Specifications subject to change without notice
