Triax™   Optical Fibre TV - Optical to Coax Converter

Triax - Optical TV - Optical to Coax Quad Converter, Triax TVC 06

Item Code: TVC 06

Brand: Triax

Manufacturer: Triax

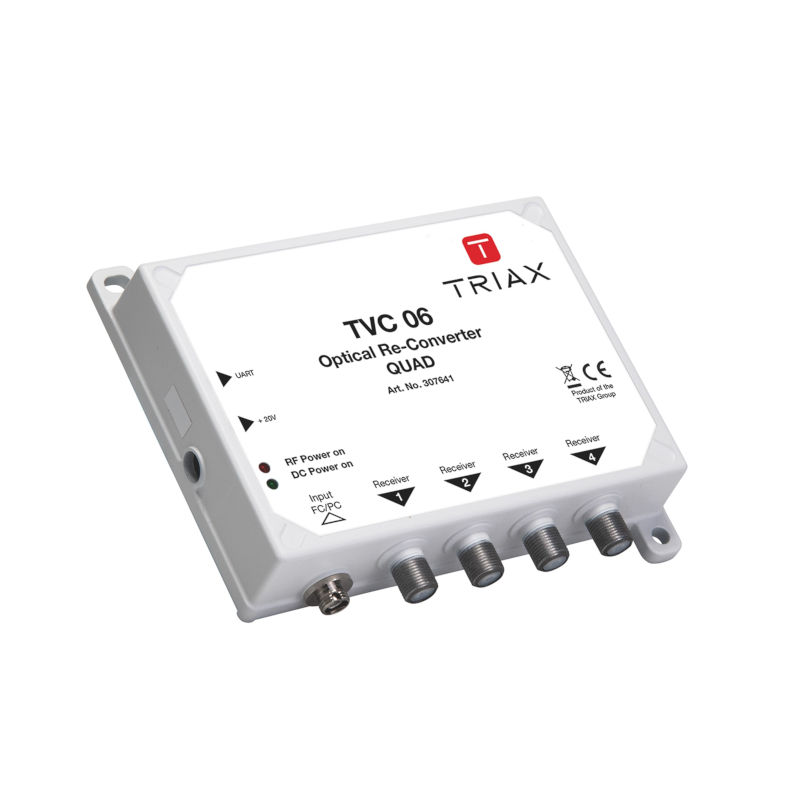

TVC 06 Re-converter Quad

The TVC 06 is a mini optical-to-coax converter, which convert the frequency stacked optical signal provided from an Opto-LNB TOL or a TOU232-Kit (IRS 1) sidecar unit into four switched universal coax signals like a Quad LNB. The converters also provide a coax DTT/DAB/FM signal diplexed onto each output when it is inserted into the optical transmitter TOU 232 SA.


  • Built in AGC which allows a wide dynamic range of the optical signals on Fibre input with less deviation of the RF output level and signal quality.
  • Two LED indicators display operational status.
  • Easy mounting via a wall baseplate.
  • Power supply via RF outputs from SAT receivers
  • Optional external power supply for continuous operation available.


EAN Number 5702663076419
Optical budget for PON (max.) 19.0(@TOL 32, TOU 232) - 22.0(@TOL 64) dB
Optical splitting in PON (max.) 32(@TOL 32, TOU 232) - 64(@TOL 64)
Optical input power -12.0(@TOL32,TOU232) -13.5...0(@TOL 64) dBm
Wavelength 1310/1550 nm
Output level SAT 75 dBµV
Output level TER 65 dBµV
Horizontal High band (4.4 to 5.45 GHz) 1100...2150 (>15.5V 22KHz) MHz
Vertical High band (1.95 to 3.0 GHz) 1100...2150 (>14.5V 22KHz) MHz
Horizontal Low band (3.4 to 4.4 GHz) 950...1950 (>15.5V) MHz
Vertical Low band (0.95 to 1.95 GHz) 950...1950 (>14.5V) MHz
AGC (Automatic Gain Control) 30 dB
RF frequency range, horizontal polarities 3.4...5.45 GHz
RF frequency range, vertical polarities 0.95...3.0 GHz
TER frequency range DTT 470...854 MHz
TER frequency range DAB 174...241 MHz
TER frequency range FM 87...108 MHz
Return Loss 10 dB
Impedance 75 Ω
DC Operating voltage 10...20 VDC
DC Current consumption 125 (225mA@10V) mA
External PSU Optional

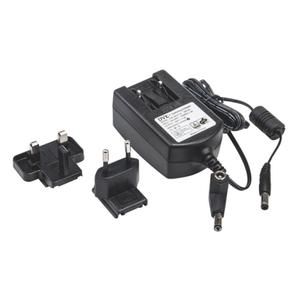

External PSU item ID 307657 (TPS323-20Vdc/1.2A)
Temperature - operating -10...+60 °C
Connector Type Optical - FC/PC
Output connectors 4xF (4 x SAT+TER)
Connector IN Optical - FC/PC
Connector OUT F-female (4xSAT+TER)
Dimensions product (H x D x W) 128x94x27 mm
Packaging Height 0,030 m
Packaging Width 0,145 m
Packaging Depth 0,120 m
Packaging Volume 0,001 m3
Net Weight 0,370 kg
Tara Weight 0,030 kg
Total Weight 0,400 kg
