Optical Fibre TV - Optical to Coax Converter
Global Invacom - Optical TV - GTU Mark 3 Optical to Coax Quatro Converter, Global
Item Code: D000188
Brand: Global Invacom
Manufacturer: Global Invacom
Description

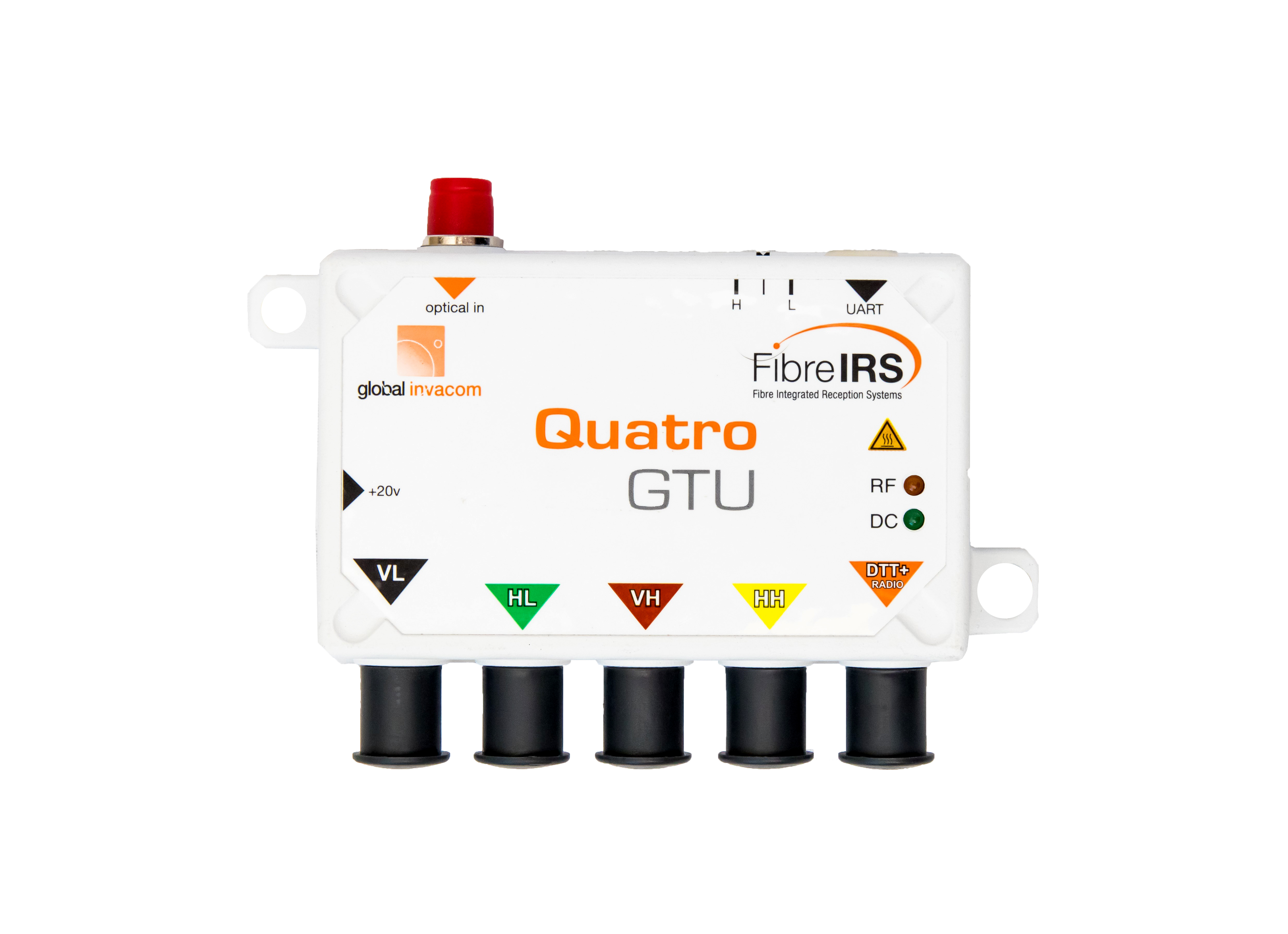

The FibreIRS GTU converter type Quatro D000188, is an optical power to RF converter.
The Quatro D000188 Re-converter has built in AGC which allows a wide dynamic range of optical powers without affecting RF output power and quality. Two LED indicators allow the user to monitor the status of the unit.
The Quatro D000188 Re-converter is for use with a multiswitch as it has dedicated outputs for each of the satellite bands - Vertical Lowband, Horizontal Lowband, Vertical Highband , Horizontal Highband and terrestrial to include FM Radio ,DAB Radio & DTT Digital TV.
The Quatro D000188 Re-converter can be powered via the satellite outputs from say a multiswitch and the optical source signal can be from either an Optical LNB or the ODU32.
Features
- Optical to RF convertor (Satellite and FM,DAB,DTT )
- Quatro version D000188
- Automatic Gain Control (AGC)
- Powered by STB or PSU
- Frequency Morphing Technology (FMT) for Worldwide use
Specification
| Product Part No. | Quad GTU | D000187 | ||
| Quatro GTU | D000188 | |||
| Satellite (Electrical) | RF frequency range | 950-2150MHz | ||
| Output impedance | 75Ω | |||
| Return loss | 10dB | |||
| Gain variation across band | 5dB | |||
| Nominal output level Quad | 75dBµV For 30 transponders (additional variation can occur due to satellite transmitted signal levels) | |||
| Nominal output level Quatro | 79dBµV For 30 transponders (additional variation can occur due to satellite transmitted signal levels) | |||
| Terrestrial rejection | 35dB | |||
| DTT, DAB & FM (Electrical) | RF frequency DTT | 470-790MHz | ||
| RF frequency DAB | 174-240MHz | |||
| RF frequency FM | 88-108MHz | |||
| Nominal impedance | 75Ω | |||
| Return loss | 10dB | |||
| Nominal DTT output Quad | 71dBµV For 6 multiplexes | |||
| Nominal DTT output Quatro | 78dBµV For 6 multiplexes | |||
| Gain variation across band | 5dB | |||
| 950-2150MHz rejection | 35dB | |||
| FM.DAB,DTT & Satellite (Optical) | Optical wavelength | 1100nm to 1650nm | ||
| Optical input power (typical) | -12dBm -3dBm For systems with 19.2dB optical budget | |||
| DC specification | Input voltage range | 10.5V to 21V For both direct or line powering | ||
| Current consumption (Quad) | 235mA max @10.5V for RX1 and Rx2 only (line powered) | |||
| Current consumption (Quad) | 235mA max @10.5V for RX3 and Rx4 only (line powered) | |||
| Total Current consumption (Quad) | 470mA max @ 10.5V (direct power) | |||
| Current consumption (Quatro) | 490mA max @10.5V | |||
| Connectors | Quad output | F x 4 | ||
| Quatro output | F x 5 | |||
| Power supply | 2.1mm Jack | |||
| Optical input | FC/PC | |||
| Environmental Specification | Operating temperature | -15°C to +50°C | ||
| Storage temperature | -20°C to +70°C | |||
| Optical cabling | Fibre type | Single mode | ||
| Standard | GI - approved G657a | |||
| Dimensions | Size Quad | 128.7mm x 116.5mm x 27mm | ||
| Size Quatro | 120.8mm x 80.1mm x 26.3mm | |||
| Weight Quad | 325g | |||
| Weight Quatro | 175g | |||
| Software (GUI) for Frequency Morphing | Supported operating systems | WinXP, Win7, Linux, Mac OS | ||
| Interface | UART | |||
| Note: Specifications subject to change without notice | ||||
