Optical TV, 1 Way 10.9dB Passive Tap, TOS 02D, 1090 FC/PC
Item Code : TOS 02D 1090 - 307730
Product Details
Optical Fibre TV - Passive Optical Tap

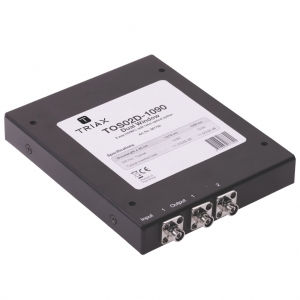

Triax - Optical TV, 1 Way 10.9dB Passive Tap, TOS 02D, 1090 FC/PC
Item Code: TOS 02D 1090 - 307730
Brand: Triax
Manufacturer: Triax
Description
TOS 02 D-2080
The TRIAX fibre optical TOS passive splitter/coupler units. Build passive optical networks (PON) in virtually any size and split ratio. Using any combination of the 2-way optical taps, passive optical networks can be realized that satisfy almost any requirement for network coverage.
TOS 02 D-1090 is an unbalanced 10.9/0.9dB FBT couplers with FC/PC connectors in a valid metal sheet housing.
Specification
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702663077300 |
| CHARACTERISTICS | |
| Type | OPTO Coupler unbalanced |
| Coupling Ratio (OPTO) | 10/90 % |
| Wavelength | 1310/1550 nm |
| Wavelength bandwidth | ± 40 MHz |
| LOSS | |
| Insertion loss (typ.) | 10.9/0.9 dB |
| CONNECTORS | |
| Connector Type | Optical - FC/PC |
| Number of inputs | 1 |
| Number of outputs | 2 |
| MECHANICAL | |
| Dimensions product (H x D x W) | 150x20x114 mm |
| Packing QTY | 1 |
| Packaging Height | 0,043 m |
| Packaging Width | 0,155 m |
| Packaging Depth | 0,215 m |
| Packaging Volume | 0,001 m3 |
| Net Weight | 0,214 kg |
| Tara Weight | 0,066 kg |
| Total Weight | 0,280 kg |
