Optical TV, 1 Way 10.9dB Passive Tap, F813000, 1090 FC/PC

Item Code : F813000



Product Details

Global Invacom™   Optical Fibre TV - Passive Optical Tap

Global Invacom - Optical TV, 1 Way 10.9dB Passive Tap, F813000, 1090 FC/PC

Item Code: F813000

Brand: Global Invacom

Manufacturer: Global Invacom


Description

F813000

The Global Invacom fibre optical passive Tap/Coupler unit. Will enable a passive optical networks (PON) in virtually any size and split ratio. Using taps in association with splitters in a combination design to create a passive optical network to meet and satisfy almost any requirement.

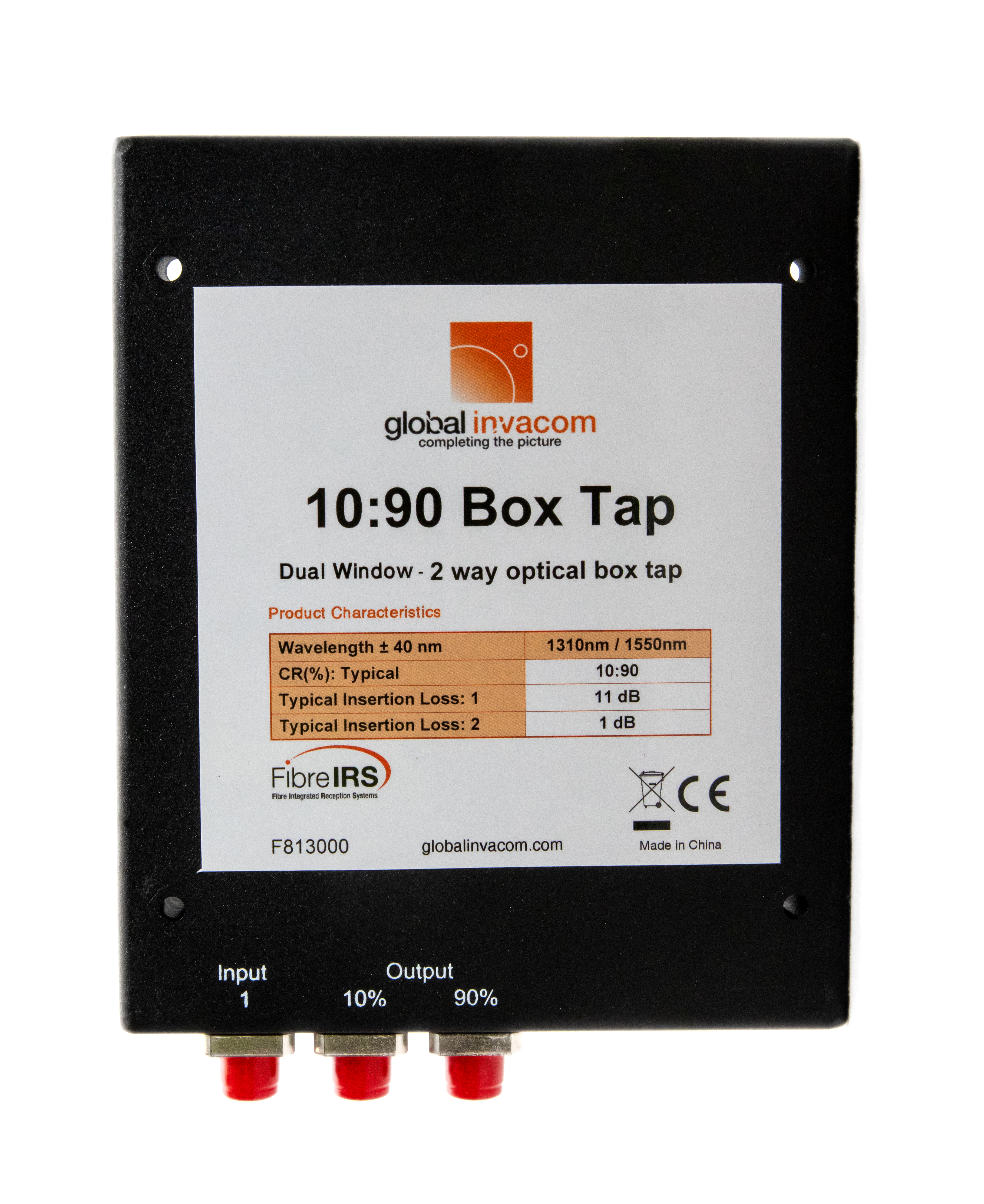

F813000 is an unbalanced 10.9/0.9dB coupler with FC/PC connectors in a valid metal sheet housing.

Specification

Technical Specifications
Product Part No. 10:90 box tap F813000
Common specification Operating Wavelength 1310-1550nm +-40
Thermal Stability <= 0.1dB
Directivity >= 55dB
Insertion loss Port 1 10.0 - 11.2dB
Insertion loss Port 2 1.0 - 1.2dB
Environmental specification Operating temperature -40 to 80 °C
Connectors Input / Output FC/PC
Dimensions Size 148 x 115 x 21 mm
