Optical TV, 2 Way Passive Splitter, F700336, 2-way FC/PC
Item Code : F700336
Product Details
Optical Fibre TV - Passive Optical Splitter
Global Invacom - Optical TV, 2 Way Passive Splitter, F700336, 2-way FC/PC
Item Code: F700336
Brand: Global Invacom
Manufacturer: Global Invacom
Description

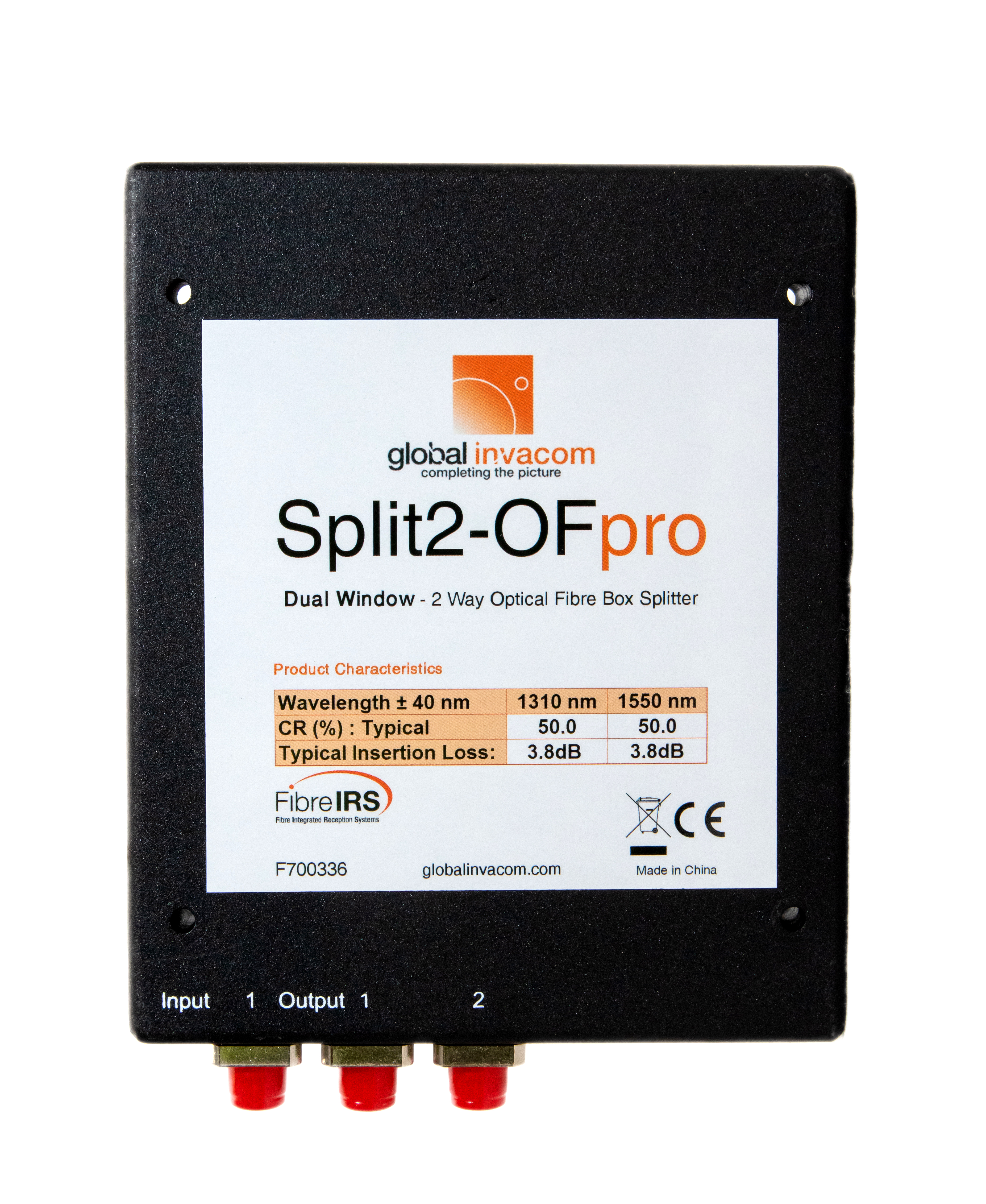

F700336- Dual Optical splitter
The Global Invacom fibre optical passive splitter unit, will enable a passive optical networks (PON) to be achieved in virtually any size and split ratio with Global Invacom Spliters and Taps.
F700336 are balanced couplers with FC/PC connectors in a metal sheet housing.
Specification
| Technical Specifications | ||||
|---|---|---|---|---|
| Product Part No. | 2 way optical box splitter | F700336 | ||
| Common specifications | Operating wavelength | 1310 to 1550nm ±40nm | ||
| Thermal stability | ≤ 0.2dB | |||
| Directivity | ≥ 50dB | |||
| Insertion loss | 3.65 - 4.0dB | |||
| Environmental specification | Operating temperature | -40 to 75°C | ||
| Connectors | Input / Output | FC/PC | ||
| Dimensions | Size | 148 x 115 x 21 mm | ||
