Optical TV - Satellite Fullband Stacking LNB, Triax TWL01
Item Code : TWL 01
Product Details
Optical Fibre TV - Full Band LNB
Triax - Optical TV - Satellite Fullband Stacking LNB, Triax TWL01
Item Code: TWL 01
Brand: Triax
Manufacturer: Triax
Description

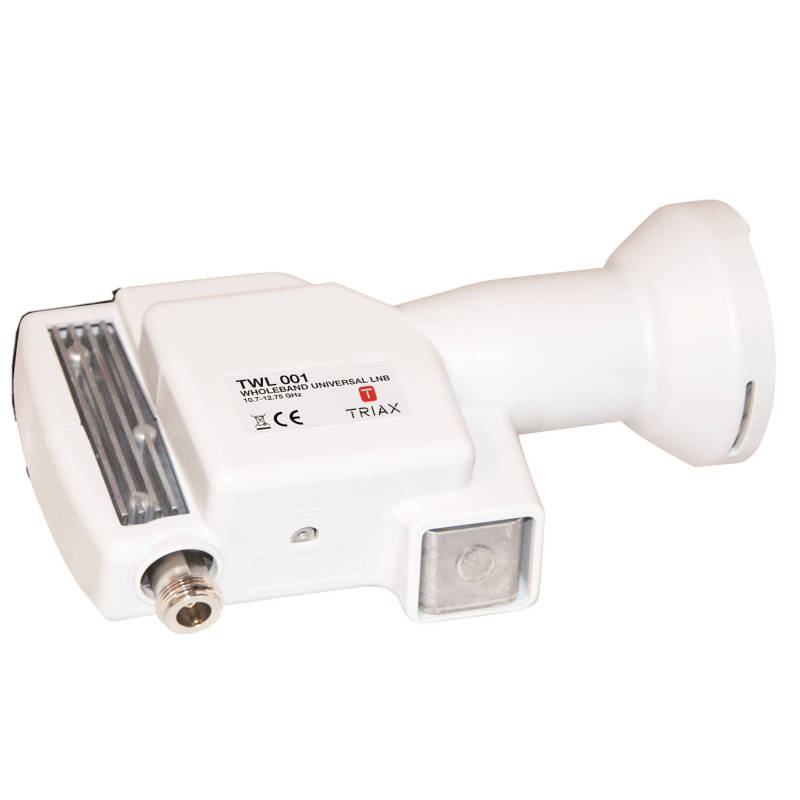

TRIAX TWL 01 Stacking LNB
The TWL01 LNB, a part of the TOU232-Kit, constantly receives all 4 Ku-Band polarities, and uses a frequency stacking technique to put all four SAT-IF polarities into one large broadband frequency range of 950 to 5450 MHz. This signal is transmitted via a High Quality RF-cable TUC xx to an external optical transmittier unit TOU 232 SA (called a Sidecar). The lengths of the TUC coaxial cable between the two components should not be more than 10 m.
Related Items
| Satellite Dish | ||
|---|---|---|
| Satellite Dish |
70cm Fibre Glass Satellite Dish , Triax DAP 711 RAL 7016 (dark Gray)
Item code: DAP 711 | |
Specification
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702663076129 |
| CHARACTERISTICS | |
| LNB type | Opto |
| Feedhorn diameter | 40 mm |
| Reception frequency range | 10,7 - 12,75 GHz |
| Reception polarization | horizontal & vertical |
| SAT-IF range, full stacked on coax output | 0.95 - 5.450 GHz |
| SAT-IF vertical band, stacked VL + VH | 0.950 - 3.0 GHz |
| SAT-IF horizontal band, stacked HL + HH | 3.4 - 5.45 GHz |
| L.O. frequency, vertical | 9.75 GHz |
| L.O. frequency, horisontal | 7.3 GHz |
| Image frequency rejection (min.) | 40 dB |
| Spurious in SAT-IF band | -25 dBc |
| GAIN | |
| Gain | 62 - 72 dB |
| Noise figure (typical) | 0.5 dB |
| ISOLATION | |
| Cross polar isolation (typ.) | 30 dB |
| OPERATIONAL | |
| DC Current consumption | < 450 mA |
| Temperature - operating | -30 to +60 °C |
| Temperature - storage | -40 to +70 °C |
| CONNECTORS | |
| Connector IN | N-connector 50 Ohm |
| Connector power supply | N, through SAT-IF output |
| MECHANICAL | |
| Packaging Height | 0,075 m |
| Packaging Width | 0,108 m |
| Packaging Depth | 0,177 m |
| Packaging Volume | 0,001 m3 |
| Net Weight | 0,434 kg |
| Tara Weight | 0,044 kg |
| Total Weight | 0,478 kg |
