Optical TV - LNB to include Optical Transmitter, Global F925004

Item Code : F925004



Product Details

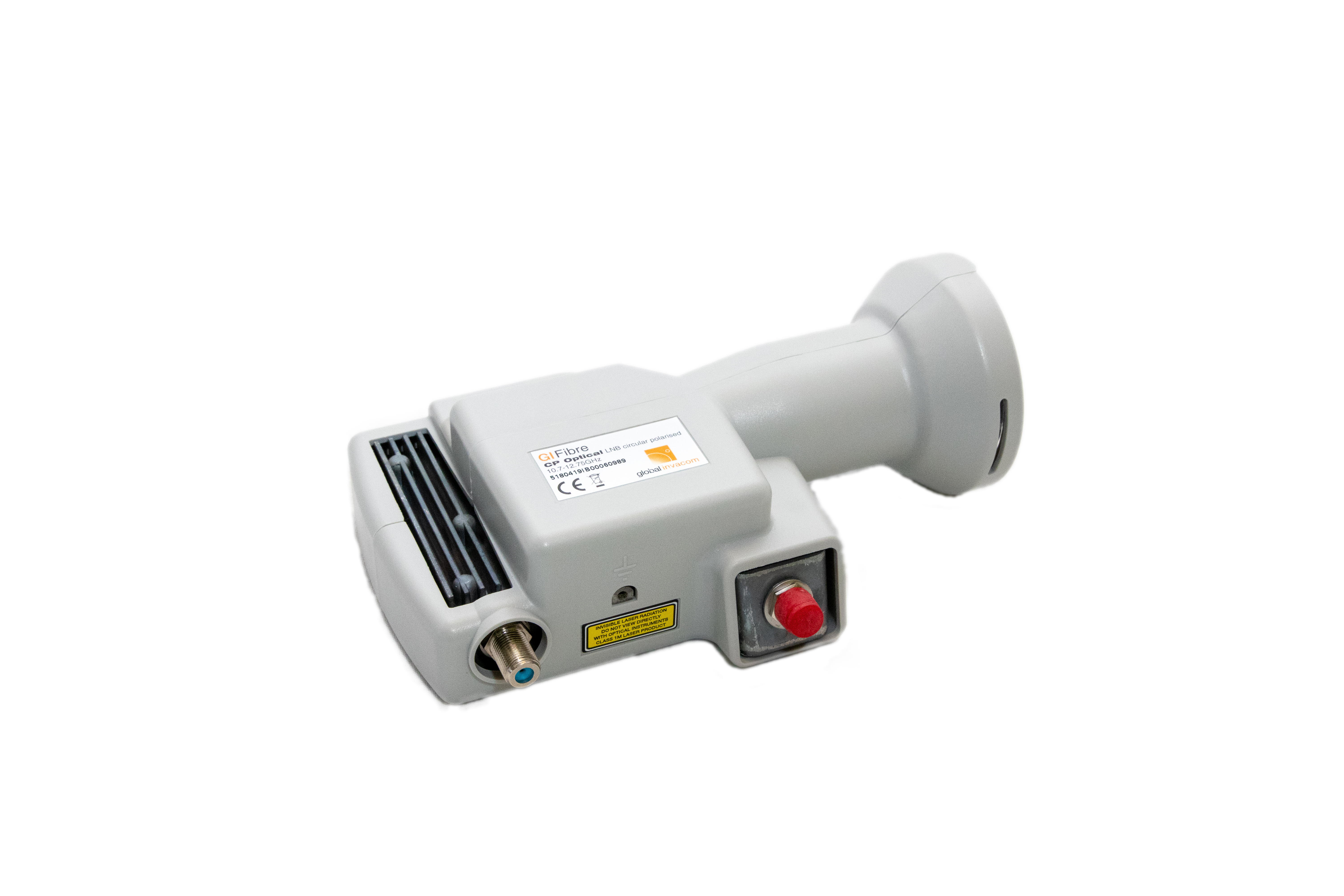

Global Invacom™   Optical Fibre TV, LNB - Optical Transmitter Component

Global Invacom - Optical TV - LNB to include Optical Transmitter, Global F925004

Item Code: F925004

Brand: Global Invacom

Manufacturer: Global Invacom


Description

This innovative new design uses patented technology to frequency stack both horizontal and vertical polarities, creating a single IF frequency range of 950MHz - 5.45GHz. The newly created single band is then frequency modulated optically and output using a 1310nm laser.

The FibreMDU Optical Output LNB radically changes how satellite IF signals are dealt with compared with conventional Universal LNBs.

This innovative new design uses patented technology to frequency stack both horizontal and vertical polarities, creating a single IF frequency range of 950MHz - 5.45GHz. The newly created single band is then frequency modulated optically and output using a 1310nm laser internal to the Optical Output LNB.

Powered separately the Optical LNB takes the required <450mA from a standard 12v supply utilising a standard female F type connector.

Fibre connection is made via a standard FC/PC connector feeding the passive distribution network on single mode fibre optic cable.

With an optical output of +/- 6.5 dBm the GI FibreMDU Optical Output LNB is easily capable of driving up to 32 GI FibreMDU converters (see GI FibreMDU specification sheet) located within a 10km radius.

Features

  • Converts all 4 Universal IF bands to a single optical output (H/H - H/L - V/H - V/L = Single Optical Output)
  • Capable of supplying all converted signals to 32 distributed points spread over a 10 kilometer radius
  • 40mm Feed Horne for an offset Dish

Specification

INPUT FREQUENCY 10.7-12.75GHz linearly polarised horizontal
10.7-12.75GHz linearly polarised vertical).
OUTPUT FREQUENCY 950 MHz - 5.45 GHz. Modulated laser at 1310nm.
OPTICAL OUTPUT POWER nominal at 25°C, ± 2dBm over full temperature range. 7dBm
NOISE FIGURE Typical at 25°C 0.5dB
Max at 25°C 1.1
Typ Over Temperature 0.7dB
Max Over Temperature 1.3dB
GAIN Max gain: at room temperature. 72 dB
Min Gain: at room temperature. 62 dB
Gain variation over temperature (-30° to + 60°C): +/- 2dB
Gain flatness (0.95 to 5.45 GHz): 5 dB per band
GAIN RIPPLE The gain ripple per 26MHz bandwidth must be less than ±0.5dB.
PHASE NOISE 1KHz -55dBc/Hz
10KHz -80dBc/Hz
100KHz -100dBc/Hz
1MHz -110dBc/Hz
LOCAL OSCILLATOR STABILITY -40° to +60°C ±2 MHz
10 Year Life ±4 MHz
CURRENT CONSUMPTION Current consumption < 450 mA.
IMAGE REJECTION minimum 40dB
CROSS POLAR ISOLATION Typically 30dB
Minimum 25dB
OUTPUT CONNECTORS Optical Connector FC/PC
SUPPLY VOLTAGE Nominal Supply Voltage 12Volts
TEMPERATURE RANGES -30°C to +60°C
LNB MECHANICAL INTERFACE Satellite dish using a 40mm clamp.
