Optical TV - LNB to include Optical Transmitter, Triax TOL 64

Item Code : TOL 64

Product Details

Triax™   Optical Fibre TV, LNB - Optical Transmitter Component

Triax - Optical TV - LNB to include Optical Transmitter, Triax TOL 64

Item Code: TOL 64

Brand: Triax

Manufacturer: Triax

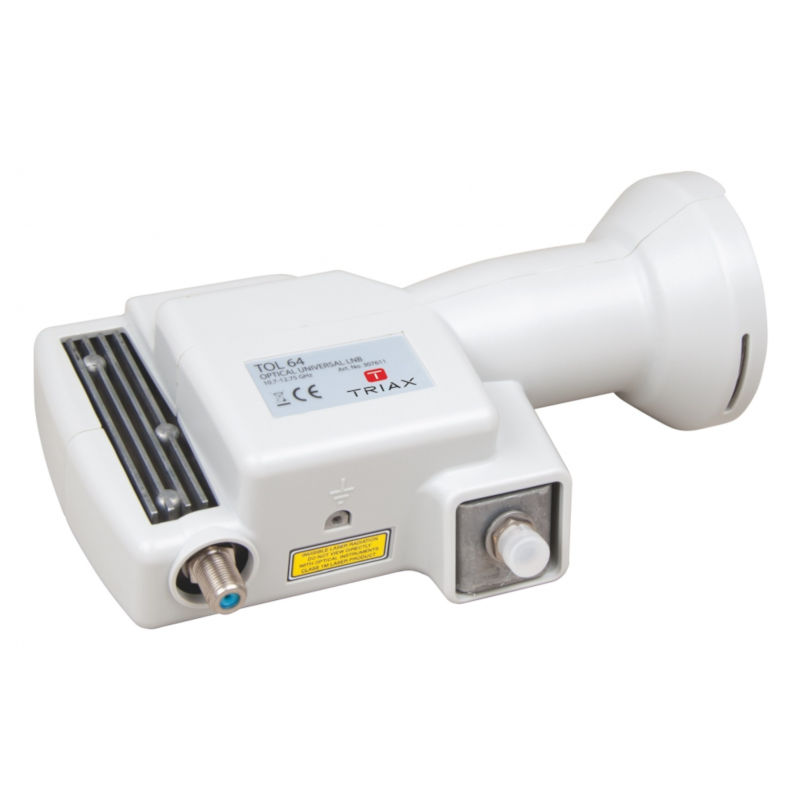

TOL 64 Stacking LNB

The TRIAX TOL64 Optical LNB is a high quality, high performance universal LNB, that, in addition to excellent LNB performance, provides a 1310 nm wideband optical output where all four satellite polarities are stacked into one frequency range (950-5450 MHz). Using modern laser technology this frequency range can be transmitted via a single laser over a very large distance, at a link budget that can sustain splitting into 64 ways.

This allows a system setup that can drive a fairly large Passive Optical Network (PON) before the signal is finally fed into a number of optical re-converters for traditional coax distribution. The stacking/de-stacking technology provides a very cost efficient solution, as a single laser carries the full four satellite polarities in one optical cable. This, in contrast to traditional fibre optical solutions that require one laser per polarity, is a substantial cost saving, without compromising satellite signals, range nor quality.

This means that not only is the investment into fibre optical cables kept at an absolute minimum, the full PON benefit from the same savings too. The Optical LNB is DC power sourced via a coax cable and an F-connector. Power supply is included in the kit. A high-quality FC/PC type fibre optical connector is used for optimum outdoor performance.


EAN Number 5702663076112
Optical output level (nom. @ 25 °C) 8.5 dBm
Optical budget for PON (max.) 22 dB
Optical splitting in PON (max.) 64
LNB type Opto
Wavelength 1310 nm
Laser class 1M
Feedhorn diameter 40 mm
Reception frequency range 10.7 - 12.75 GHz
Reception polarization horizontal & vertical
SAT-IF vertical band, stacked VL + VH 0.950 - 3.0 GHz
SAT-IF horizontal band, stacked HL + HH 3.4 - 5.45 GHz
L.O. frequency, vertical 9.75 GHz
L.O. frequency, horisontal 7.3 GHz
Image frequency rejection (min.) 40 dB
Spurious in SAT-IF band -25 dBc
Fibre link distance max. (subject to PON loss) 10 km
Gain 62 - 72 dB
Noise figure (typical) 0.5 dB
Cross polar isolation (typ.) 30 dB
DC Operating voltage 20 VDC
DC Current consumption < 300 mA
External PSU Included
External PSU item ID 307657 (TPS323-20Vdc/1.2A)
Temperature - operating -30 ... +60 °C
Temperature - storage -40 ... +70 °C
Connector OUT Optical - FC/PC
Connector power supply F-female
Dimensions product (H x D x W) 173 x 108 x 68 mm
Packaging Height 0,070 m
Packaging Width 0,190 m
Packaging Depth 0,120 m
Packaging Volume 0,002 m3
Net Weight 0,641 kg
Tara Weight 0,051 kg
Total Weight 0,692 kg
