ProPSU11F

Item Code : RF Line Power Supply 12V 100mA



Special Notice: None

Special Notice: None

Product Details

Proception™   Power Supplies

Proception - ProPSU11F

Item Code: RF Line Power Supply 12V 100mA

Brand: Proception

Manufacturer: Blake UK

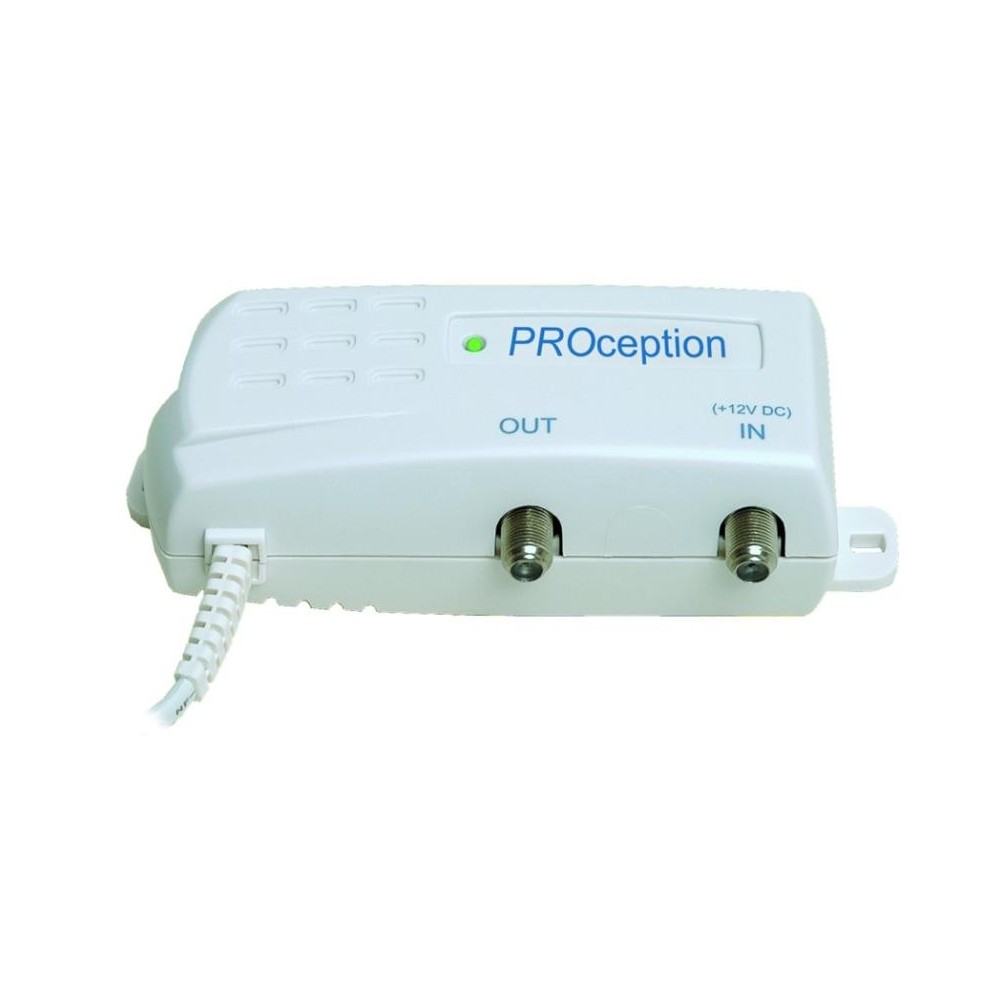

RF Line Power Supply 12V 100mA

Description

High-quality 12 volt coaxical in-line power unit for use with the PROception range of masthead amplifiers and similar applications. The unit utilise an efficient cooling-running mains transformers, fitted with an approved thermal fuse for overheat protection. The two-colour power indicator LED gives immediate warning of an output short-circuit condition. Regulation is maintained over the full 207-253 V AC supply voltage range, for any output current up to the maximum of 100 mA.

Designs independently certified to relevant safety standard BS EN 60065.

Features

  • Fully-screened RF modules, compliant with EMC standards (BS EN 55013 & BS EN 50083-2).
  • Low RF insertion loss and excellent 75 Ω impedance matching.
  • Passes return path signals, allowing use in IR eye systems (proPSU11F MK 2 only).
  • Electronic long-term short-circuit protection with two-colour LED indication.

Specification

Product Code ProPSU11F MK2
Input one
Output one
Insertion Loss 0.6dB
Power Output Voltage: 12Volts
Maximum Current: 100mA
Short circuit warning Yes
Signal Frequency Range 5-862MHz
Mains Plug fitted with UK Plug of rectangular pins to BS1363
Applications Power Supply for Mast Head Amplifiers.
