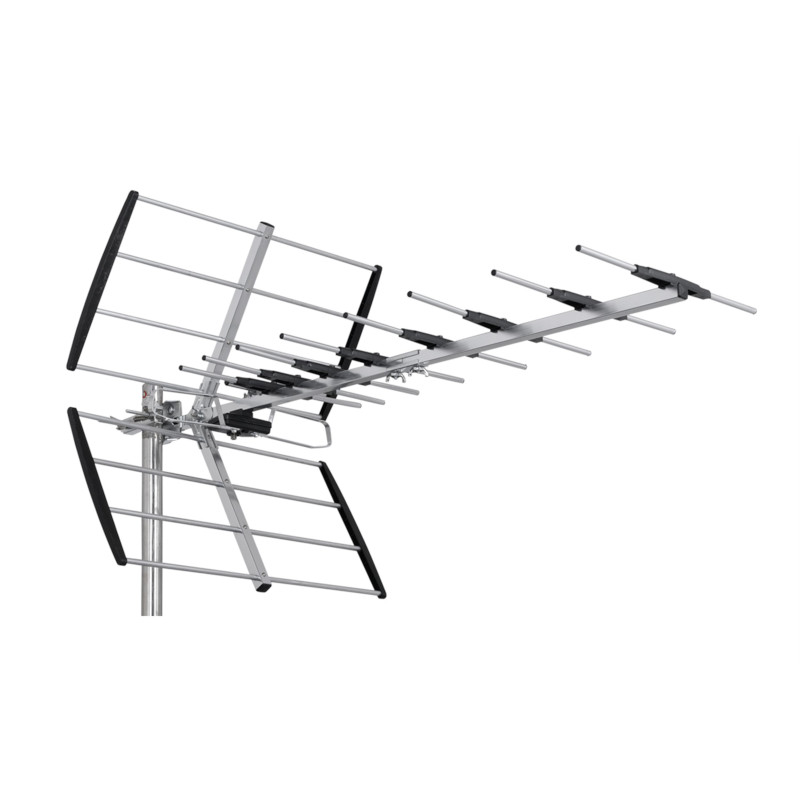

LTE QR12 T, 17 Element Full Wave Yargi TV Aerial,
Item Code : 108169 - LTE QR12 T
Product Details
Terrestrial TV Aerial
Wolsey - LTE QR12 T, 17 Element Full Wave Yargi TV Aerial,
Item Code: 108169 - LTE QR12 T
Brand: Wolsey
Manufacturer: Triax
LTE QR12 T
Description
This Full Wave Yargi TV Aerial Modal QR12 is of high gain with compact design. This TV Aerial can be assembled without Tools with features of 'Quick lock' dipole and reflector. Its strong, rugged construction ensures a long service life, the coax cable connection to the TV Aerial is made to the F-Connector dipole housing. The TV aerial hasexcellent Front to Back Ratio and performance across the whole of the UHF band.
Features
- Frequency: 470...790 MHz
- Channel: 21-60 (wideband)
- Impedance: 75ohm
- Number of Elements: 17
- Gain: 14 dBi
- Front to back ratio: >20..26dB
- Length: 1010mm
Specification
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702661081699 |
| CHARACTERISTICS | |
| Type | QR 12 T |
| FREQUENCY | |
| Band | B IV/V UHF |
| Channels | 21...60 |
| Frequency range UHF | 470...790 MHz |
| LTE protection | 800 |
| GAIN | |
| Gain | 14 dBi |
| LOSS | |
| Rejection @ 821 MHz (LTE D6) | <2.14dBi dB |
| ELECTRICAL | |
| Front to back ratio - horisontal | >20...26 dB |
| Impedance | 75 Ω |
| CONNECTORS | |
| Connector Type | F-female |
| MECHANICAL | |
| Elements | 12 |
| Beamwidth horisontal | ± 18 ° |
| Bracketry | Rear Mount |
| Construction type | Quick Lock Relector |
| Main material | Aluminium |
| Individual brown box | 1 |
| Product Length | 1010 mm |
| Product Width | 555 mm |
| Packing QTY | 1 |
| Net Weight | 1,520 kg |
| Total Weight | 1,520 kg |
