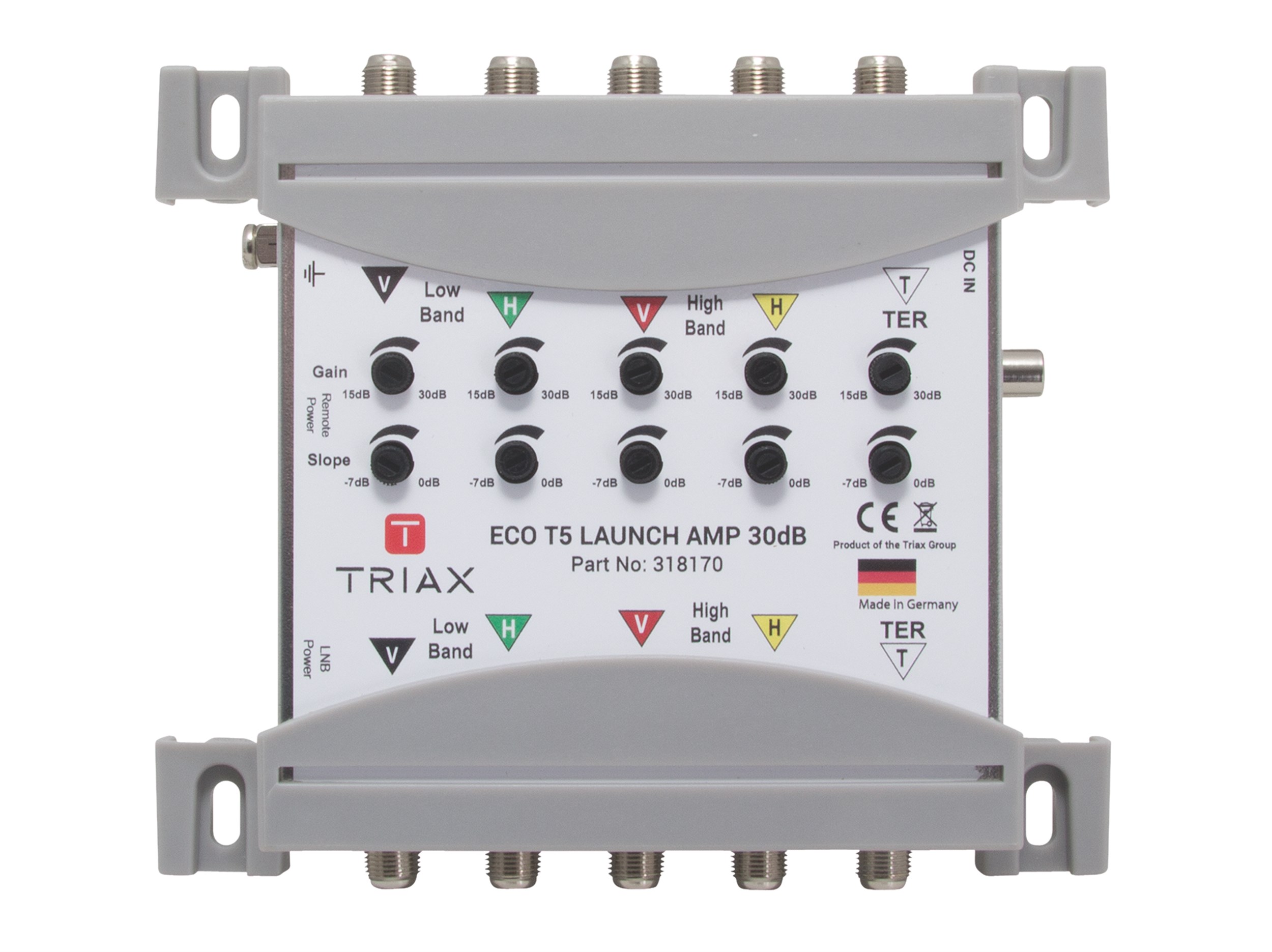

Triax Eco T5 Launch Amplifier
The T5 Launch Amplifier with 30dB Gain per amplifier of 1 x Terrestrial and 4 x Satellite, The five Launch Amplifier System has 5 In 5 Out fitted with F Type Ports, the unit has high interference immunity by fully screened housing.
Specifications
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702663181700 |
| CHARACTERISTICS | |
| Type. | 4SAT+1TERR Launch Amp |
| Max. output level SAT @ -35 dB IMD3 | 118 dBµV |
| Max. output level TER @ -60dB IMD3 | 112 dBµV |
| FREQUENCY | |
| Frequency range TER | 40...790 MHz |
| Frequency range SAT | 950...2400 MHz |
| GAIN | |
| Gain - SAT (with 5 dB slope) | 30 dB |
| Gain - TER | 30 dB |
| ISOLATION | |
| Isolation TER to SAT | < 30 dB |
| ELECTRICAL | |
| Impedance | 75 Ω |
| OPERATIONAL | |
| LINE power DC voltage (max.) | 15 VDC |
| LINE power current (max.) | 600 mA |
| DC Operating voltage | 15 VDC |
| DC Current consumption | 600 mA |
| External PSU item ID | 318151 |
| Temperature range | -20...70 °C |
| CONNECTORS | |
| Connector Type | F-female |
| Connector DC | F-female |
| Number of inputs | 5 |
| MECHANICAL | |
| Product Depth | 62 mm |
| Product Width | 140 mm |
| Product Length | 160 mm |
| Net Weight | 0,480 kg |
| Tara Weight | 0,115 kg |
| Total Weight | 0,595 kg |
