Triax - Eco T5 ADJ TAP 2-way
Item Code : 318161
Product Details
Triax - Eco T5 Multiswitch System
Triax - Triax - Eco T5 ADJ TAP 2-way
Item Code: 318161
Brand: Triax
Manufacturer: Triax

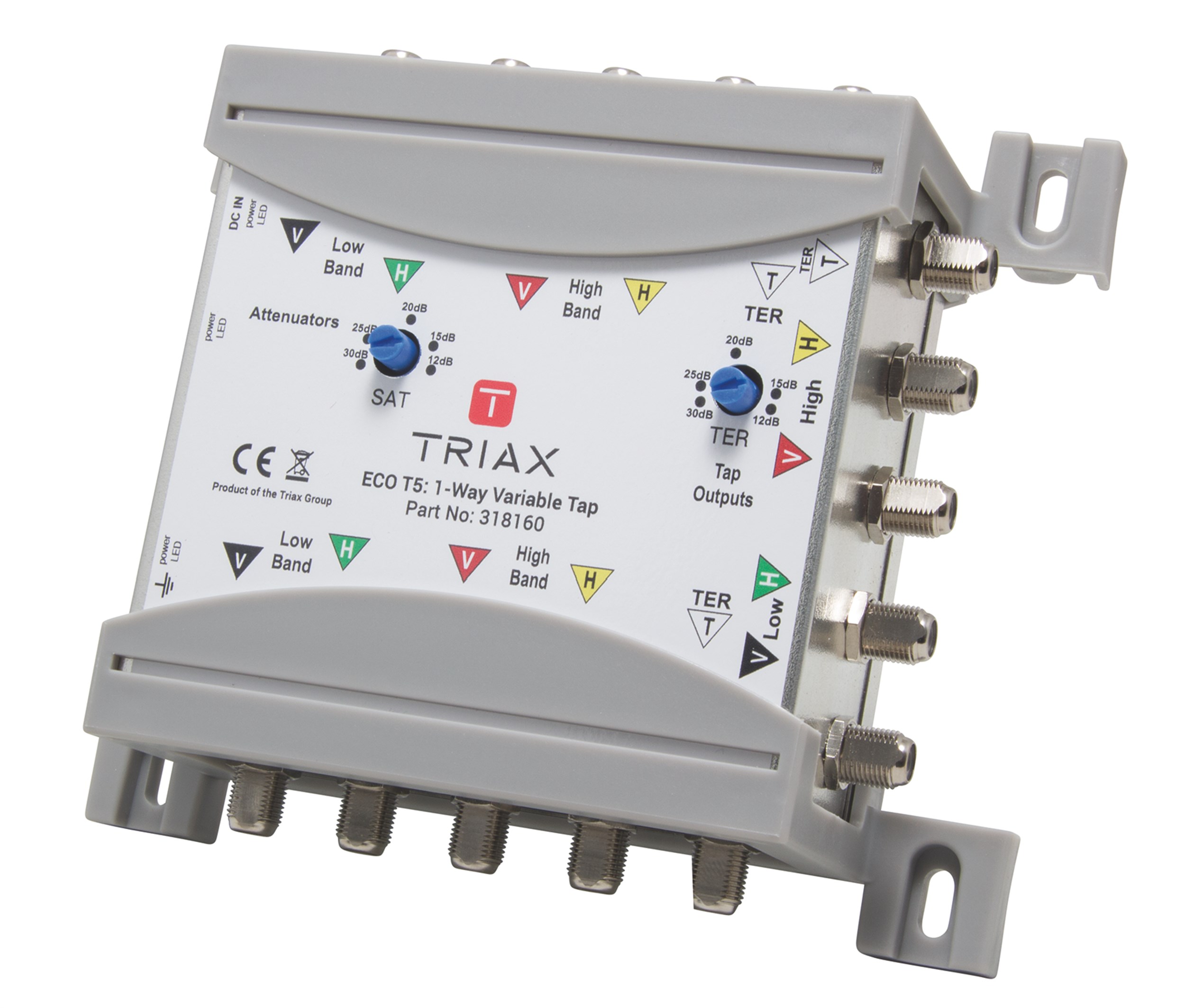

Triax Eco T5 Adjustable
Simplifiy your IRS Installations with the new adjustable tapThe T5 Adjustable Tap for Satellite 30 to 12dB attenuation and terrestrial 30 to 12dB attenuation via a selector pots designed with the latest chipset technology for excellent linearity across all polarities.
This Tap is used to balance system power levels.
Specifications
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702663181618 |
| CHARACTERISTICS | |
| Type. | T5 Adj TAP, 2 way |
| FREQUENCY | |
| Frequency range SAT | 950...2400 MHz |
| Frequency range TER | 40...790 MHz |
| LOSS | |
| Tap loss SAT | SAT1: 12...30 dB |
| Tap loss TER | TER1: 12...30 (@+/-1dB steps) TER2: 7 dB |
| Insertion loss - SAT | 2...4 +/-1 dB |
| Insertion loss - TER | 3.5+/-1 dB |
| ELECTRICAL | |
| Impedance | 75 Ω |
| OPERATIONAL | |
| Temperature range | -20...70 °C |
| External PSU item ID | xxxxxx |
| DC Operating voltage | 15 VDC |
| DC Current consumption | < 35 mA |
| LINE power current (max.) | 35 mA |
| LINE power DC voltage (max.) | 15 VDC |
| CONNECTORS | |
| Connector Type | F-female |
| Connector DC | F-female |
| Colour coding of IF and TER inputs | VL=Black, VH=Red, HL=Green, HH=Yellow |
| Number of inputs | 5 |
| MECHANICAL | |
| Product Depth | 62 mm |
| Total Weight | 0,590 kg |
| Product Length | 160 mm |
| Net Weight | 0,465 kg |
| Tara Weight | 0,125 kg |
| Product Width | 140 mm |
