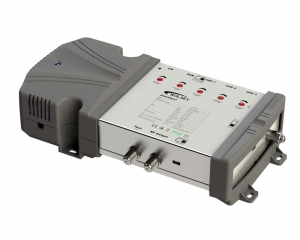

Wolsey - Amethyst TV Radio Launch Amplifier 45dB

Item Code: 371000

Brand: Wolsey

Manufacturer: Triax

Description

The Amethyst Launch Amplifier has a gain of 47dB with output power of 121dBuVolts

There are 5 filtered inputs specifically tuned for the services of :-

1. FM Radio, 88 to 108 MHz.
2. DAB Radio, 217 to 230MHz
3. UHF TV, 470 to 790MHz
4. UHF TV, 470 to 790MHz
5. UHF TV, 470 to 790MHz


The UHF TV input is capable of powering a pre-Amplifier.

• Multiband Amplifier
• Variable Gain Control 0-20 dB on All Inputs
• Switchable Filtering Control
• Masthead Line Power Supply with Short Circuit Protection
• Test -30dB
• Earth Bonding Point

Specifications

ORDER INFORMATION
EAN Number	5702663710009
CHARACTERISTICS
Max. output level	121dBuV (UHF) dBµV
Test point	-30dB dB
FREQUENCY
Frequency range BI/FM	88-108 MHz
Frequency range BIII/DAB	217-230 MHz
Frequency range DAB	217-230 MHz
Frequency range FM	88...108 MHz
Frequency range	88...862 MHz
Frequency range UHF	470-790 MHz
GAIN
Gain	40dB (FM/DAB) dB
Gain - UHF	47dB (UHF 1,2,3) dB
Noise figure UHF	6dB dB
Noise figure VHF	6dB dB
LOSS
Attenuation - adjustable	0-20 dB
ELECTRICAL
Impedance	75 Ω
OPERATIONAL
LED indicator	Yes
LINE power current (max.)	100 mA
LINE power DC voltage (max.)	12 Switchable VDC
AC Supply voltage	230 / 50Hz VAC
Power Consumption (typ.)	9.5 W
CONNECTORS
Connector Type	F-female
Number of outputs	2 (Full and Test)
Number of inputs	5
MECHANICAL
Product Depth	55 mm
Total Weight	0,740 kg
Product Length	232 mm
Net Weight	0,635 kg
Packing QTY	1
Remarks	Screened AmplifierSwitchable LTE FilterSwitchable 10dB output attenuation.
Tara Weight	0,105 kg
Product Width	135 mm
