TdSCR 508 Multiswitch
Item Code : 318 183
Product Details
Triax - dSCR Multiswitch System (Sky Q Compatible)

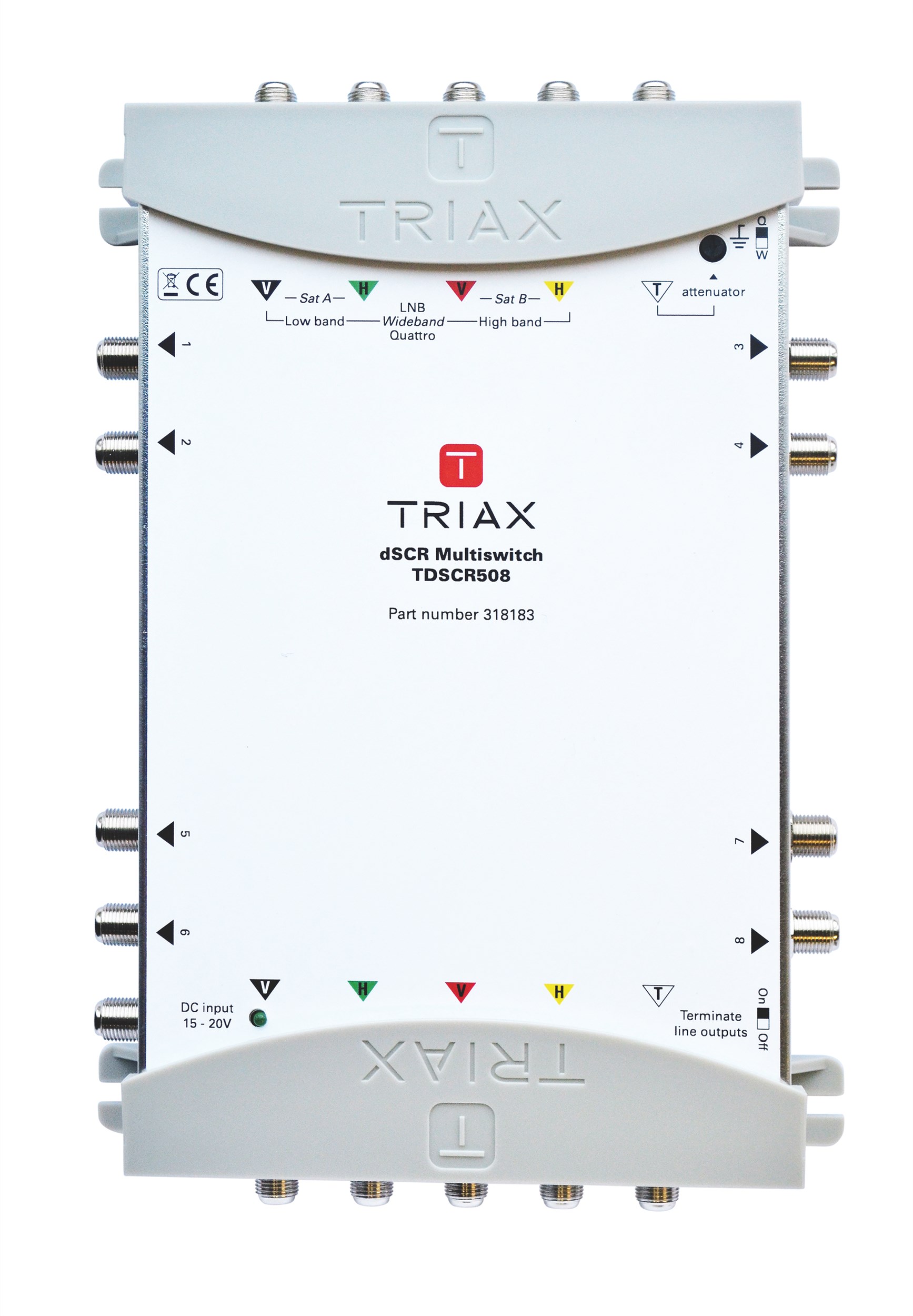

Triax - TdSCR 508 Multiswitch
Item Code: 318 183
Bar Code: 5702663181830
Brand: Triax
Manufacturer: Triax
Triax TdSCR 508 Multiswitch
- 4 Cascadeable LNB inputs from 1 universal Quattro LNB or 2 wideband LNB's
- 1 Cascadeable Terrestrial trunk input
- 1 level adjuster for Terrestrial signals
- 8 SCR/legacy outputs
- 1 DC input for switch, line and LNB powering
Specifications
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702663181830 |
| CHARACTERISTICS | |
| Input level | 70...100 (dSCR/legacy) dBµV |
| Output level | 85 (dSCR/legacy) (AGC -25dBm) dBµV |
| LNB power supply max. | 15...20 V/DC |
| LNB current max. | 1000 mA |
| FREQUENCY | |
| Frequency range TER | 40...790, active MHz |
| Frequency range SAT | dSCR/legacy: 950...2150 - Wideband: 290...2340 MHz |
| LOSS | |
| Through loss TER | typ. -5 dB |
| Through loss SAT | typ. -3 dB |
| Insertion loss - TER | typ.0 dB |
| Attenuation TER | 0...20 dB |
| ISOLATION | |
| Isolation cross polarisation H/V | 25 dB |
| RETURN LOSS | |
| Return Loss | 10 dB |
| ELECTRICAL | |
| Impedance | 75 Ω |
| OPERATIONAL | |
| DC Current consumption | 1500 (@15V) mA |
| External PSU | Optional |
| Temperature range | -20...+50 °C |
| CONNECTORS | |
| Connector Type | F-female |
| Connector DC | F-female |
| Number of inputs | 4 SAT (1x quattro + 2x wideband) + 1 TERR |
| Number of outputs | 8 |
| MECHANICAL | |
| Packing QTY | 1 |
| Packaging Height | 0,130 m |
| Packaging Width | 0,110 m |
| Packaging Depth | 0,057 m |
| Packaging Volume | 0,001 m3 |
| Net Weight | 0,980 kg |
| Total Weight | 0,980 kg |
| Remarks | User band frequencies SKY UK EN50607 EN50494 (Auto selection) |
