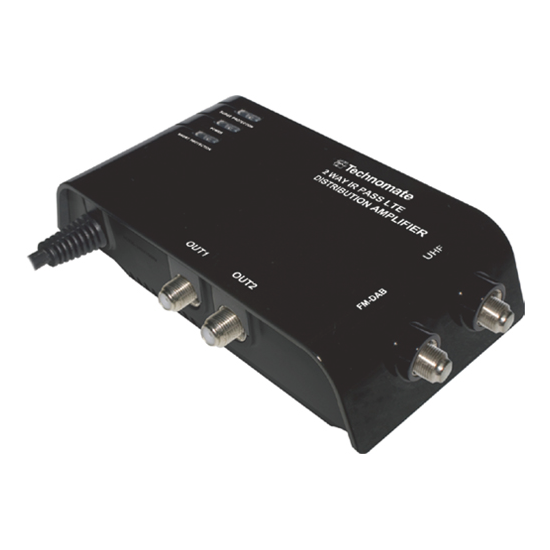

Technomate - 2 Way Radio TV Amplifier with IR Pass

Item Code : TM-2 AMP B



Product Details

Technomate™   Technomate: Multi-Tapped Terrestrial Amplifier

Technomate - Technomate - 2 Way Radio TV Amplifier with IR Pass

Item Code: TM-2 AMP B

Brand: Technomate

Manufacturer: Technomate


Description

The TM-2 AMP B is a bypass mains-powered amplifier to distribute radio and TV signals (UHF, FM & DAB) to multiple televisions.

As well as splitting an input signal to two outputs, it can be used as a signal booster.

It will split and distribute the signal from an aerial, freeview or satellite device.

It is also compatible with TV-Links (Magic Eyes).

A built-in LTE filter is included to eliminate 4G LTE interference.

Features

  • 2 Inputs, 2 Outputs
  • Bypass - IR Return
  • LTE Protected
  • VHF: 47-230 MHz
  • UHF: 470-862 MHz
  • Noise: <3.8dB
  • Output Level: 97dBμV
  • Gain: 12dB
  • Isolation between Outputs: 22dB
  • Return Path Frequency: 5-25MHz
  • Short Circuit Protection on each output
  • Power on LED
  • Screened Housing
  • F-Connectors
  • Easy to mount fixing
  • Mains Powered
  • 9VDC/15mA on Outputs
