MOD 103 T
Item Code : MOD 103 T
Description
MOD103T HDMI to COFDM Modulator
Watch + control HD content at each TV location using existing coax cable infrastructure
Features
- New compact design
- All inputs and outputs on one side for ease of installation
- Full HD Video and HDMI Loop through
- IR Control when used with Digital Links and IR Pass Amplifiers
- Enhanced viewing experience
- Combine multiple modulators together for more HD channels on your network – watch different sources on different TV’s
- Output combined with existing RF signals
- RF Output level control
- Fully agile output
- IR Emitter required at HDMI source (supplied)
- Compatible with HDMI sources
- Ideal solution for domestic and commercial installations

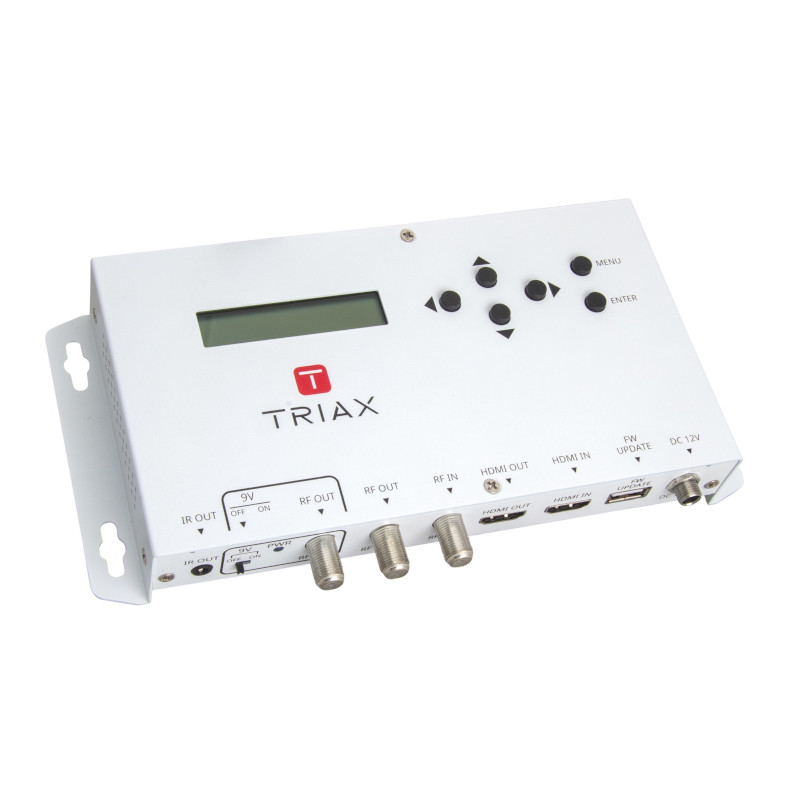

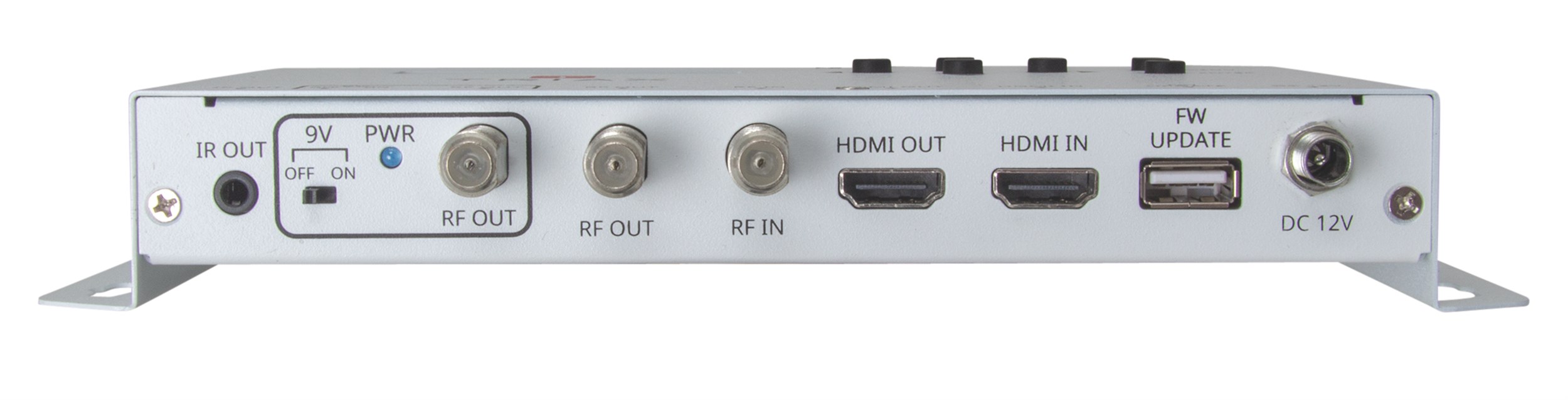

Images of Modulator MOD 103 T
|
|
|
Specification
Specifications
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702663001282 |
| CHARACTERISTICS | |
| Video Input | HDMI |
| Audio Input | Stereo, HDMI |
| Video resolution | Up to 1080p@30Hz Pixel |
| Video Compression | H.264 4.0 |
| Audio Compression | MPEG-2, AAC |
| Number of carriers | 2K / 8K |
| Guard Interval | 1/4, 1/8, 1/16, 1/32 |
| Constellation | QPSK/16QAM/64QAM |
| Code rate | 1/2, 2/3, 3/4, 5/6, 7/8 |
| Output level | < 95 dBµV |
| MER | <30 dB |
| FREQUENCY | |
| Frequency range | 177...858 MHz |
| Bandwidth | 6/7/8 MHz |
| RETURN LOSS | |
| LCN | 1...999 |
| ELECTRICAL | |
| Impedance | 75 Ω |
| OPERATIONAL | |
| DC Operating voltage | 12 VDC |
| External PSU | Included |
| Service Settings | Serv. Name: Edit service name Serv. ID: 1-65535 |
| Stream Settings | Orig Netw ID: 1-65535 Netw ID: 1-65535 TS ID: 1-65535 Netw Name: Edit Network Name |
| Parameter Settings | Const: QPSK/16QAM/64QAM Code Rate: 5/6, 7/8 Guard Interval: 1/4, 1/8, 1/16, 1/32 Trans Mode: 2K, 8K Bandwidth: 6,7,8 MHz |
| CONNECTORS | |
| Input connector | HDMI, F-terrestrial loop through |
| Connector IN | HDMI female (Type A) |
| Connector OUT | F-female |
| MECHANICAL | |
| Display | LCD panel and buttons |
| Product Height | 106 mm |
| Product Depth | 32 mm |
| Product Width | 220 mm |
| Colour | White |
| Packaging Height | 0,057 m |
| Packaging Width | 0,248 m |
| Packaging Depth | 0,190 m |
| Packaging Volume | 0,003 m3 |
| Net Weight | 0,760 kg |
| Tara Weight | 0,180 kg |
| Total Weight | 0,940 kg |
