SKY Q® + SKY® + FREESAT® - Hybrid LNB
Item Code : VHK6
Description

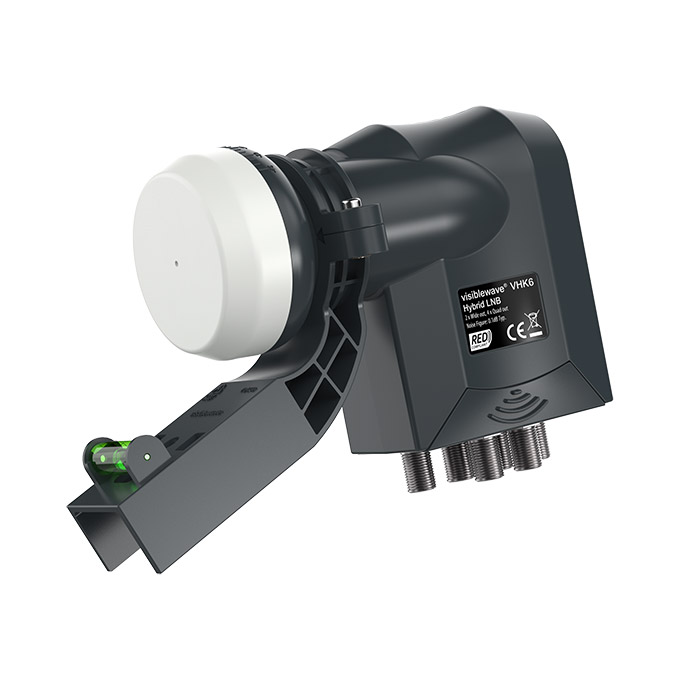

The visiblewave VHK6 is a Hybrid LNB with2 x Wideband outputs that are compatable with Sky Q and
4 x Quad universal outputs that are compatable with Sky+ and Freesat.
Features
- Finished in grey
- Supplied with a SkyTM compatible bracket
- Built-in spirit level
Specification
| Wideband Technical Specification | |
|
Input Frequency |
10.7 ~ 12.75 GHz |
|
Output frequency |
Vertical: 290 ~ 2340 MHz |
|
Horizontal: 290 ~ 2340 MHz |
|
|
L.O. frequencies |
10.41 GHz |
|
L.O. Stability |
+/-0.5 MHz (max) @ Room Temp. +/-1 MHz (max) @ -40°C ~ +60°C |
|
L.O. Phase Noise |
-50dBc/Hz @ 1kHz (max.) -75dBc/Hz @ 10kHz (max.) -100dBc/Hz @ 100kHz (max.) |
|
Noise Figure |
0.1 dB (typ.) |
|
Conversion Gain |
50 dB (min) / 60 dB (max) |
|
Gain Flatness @ 26MHz |
+/-0.5dB (typ.) |
|
Gain Variation |
7dB (max.) @ full band |
|
Cross Polar Isolation |
25 dB (typ.) |
|
Image Rejection |
40 dB (min) |
|
Current Consumption |
0.85W (max.) (70mA @ +12V DC) |
|
Power Voltage |
9 – 19V DC |
|
Connector Type |
75 female F-connector |
|
Output Spurious |
<-60dBm |
|
Operating Temp. |
-40’C ~ +60’C |
|
RED Compliance |
EN 303 372-1 |
| Legacy Technical Specification | |
|
Input frequency |
low band: 10.7 ~ 11.7 GHz |
|
high band: 11.7 ~ 12.75 GHz |
|
|
Feedhorn – Linear |
Optimised for offset dish |
|
Output Frequency |
low band: 950 ~ 1950 MHz |
|
high band: 1100 ~ 2150 MHz |
|
|
Output 1,2,3,4 VSWR |
Ratio 2.0:1 (typ.), 2.5:1 (max.) |
|
L.O. frequencies |
9.75 / 10.6 GHz |
|
L.O. Stability |
0.5 ~ 1.0 MHz |
|
L.O. Phase Noise |
-55dBc/Hz @ 1kHz (max.) -75dBc/Hz @ 10kHz (max.) -90dBc/Hz @ 100kHz (max.) |
|
Conversion Gain |
56 ~ 63 dB @ 25ºC 54 ~ 60 dB @ -40ºC ~ 60ºC |
|
Gain Flatness Over Full Band |
3 dB P-P (typ.), 5 dB P-P (typ.) |
|
Gain Flatness @ 26MHz @ 300MHz |
+/- 0.5 dB P-P (typ.) +/- 4 dB P-P (typ.) |
|
1.7GHz |
-50 dB (typ.) -47 dB (max.) |
|
Noise Figure |
0.3 dB (typ.), 1.0 dB (max.) |
|
Cross Polar Isolation |
18 dB (min.), 20 dB (typ.) |
|
Image Rejection |
37 dB (min), 40 dB (typ.) |
|
Current Consumption |
120mA (typ.), 140mA (max.) |
|
Operating Voltage & |
Vertical 11.5 – 14.5 VDC Horizontal 15.5 – 19 VDC Low-Band 0 KHz High-Band 18 – 26 KHz
|
|
Connector Type |
75 female F-connector |
|
Operating Temp. |
-40’C ~ +60’C |
|
RED Compliance |
EN 303 372-1 |
| Part Number | VHK6 |
|---|
