av:link - av:link - 200 x 200mm, Twin Braced 3 Point Swival Arm, TV Wall Bracket

Item Code: IND201

Brand: av:link

Manufacturer: av:link

Description

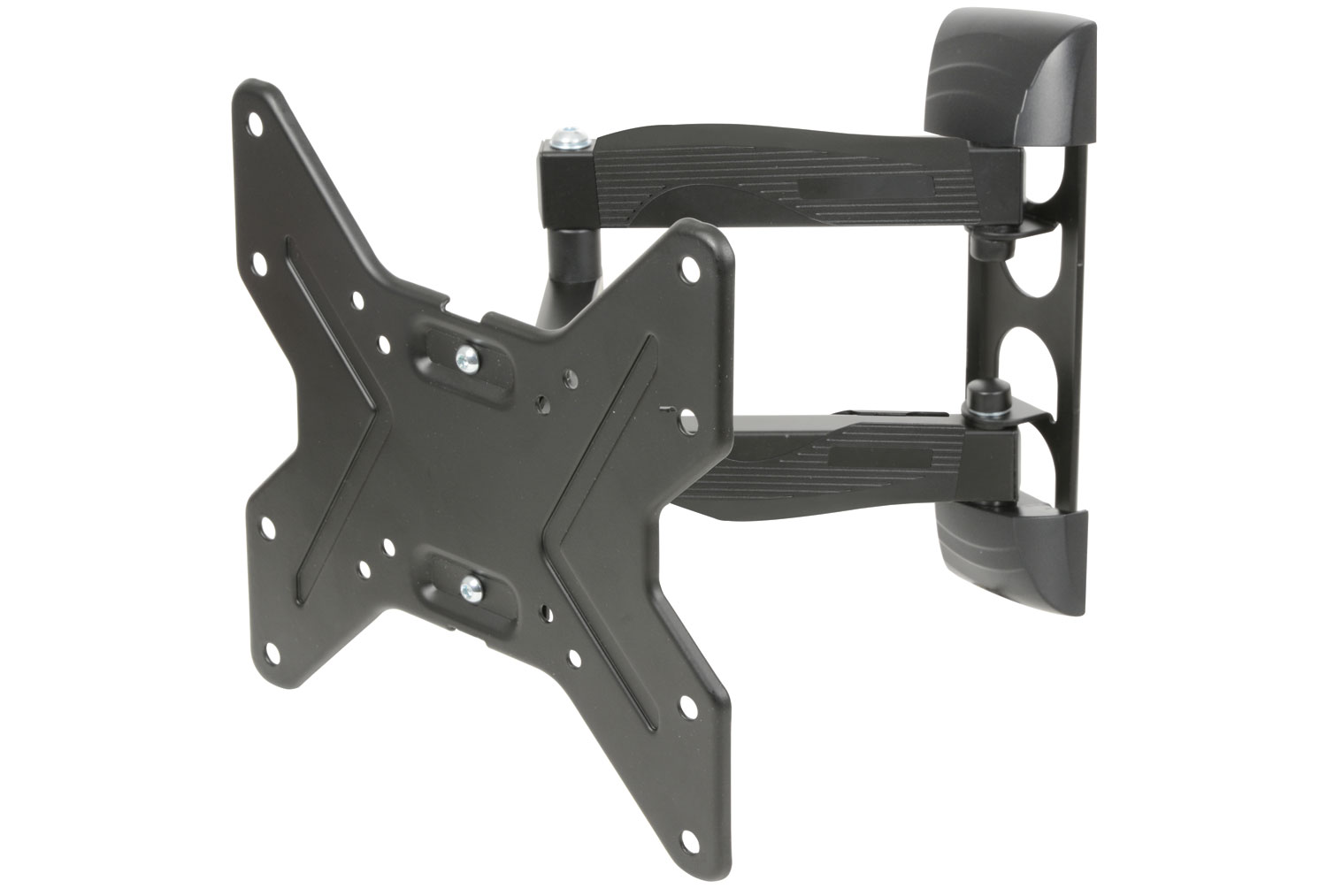

The IND201 is a full motion TV bracket for LCD, Plasma, LED TVs & Monitors. The bracket can come out from the wall as far as 417mm.

You can tilt the bracket from -5° to +10° to adjust your TV 's angle as well as swivel it between +90° to -90°.

Universal mounting pattern fits virtually any 26"-42" flat-panel TV and monitor.

The sleek cable management system keeps cables hidden and neat.

The slide-in VESA plate makes install easier to mount/dismount the bracket.

There's also an anti-theft system (requires padlock).

The TV to bracket fixing screws provided are, 4 x M4 20mm, 4 x M5 20mm, 4 x M6 20mm, 4 x M8 20mm ( caution: select screws as required by your TV Screen; other sizes may be required that are not supplied ? )

Features

• Slim 26"-42" TV Bracket
• Tilt: +15° to -15°
• Swivel: +90° to -90°
• Distance to Wall: 52-342mm
• Max VESA: 200mm x 200mm
• Max Weight: 25kg
• Cable management
• Anti Theft (requires padlock)

Specifications for TV Wall Bracket IND201

Screen sizes	26 to 42 inch
Maximum screw fixing centers for TV Screen	200 x 200mm
VESA fixing system.	75 x 75 100 x 100 200 x 200
Tilt range	+15 to -15 deg.
Swivel range	+90 to -90 deg.
Maximum weight load	25Kg
Distance to wall	52-342mm
Wall foot dimensions	72 x 234mm
Weight	1.76Kg
