av:link - av:link 200 x 200mm TV Wall Bracket

Item Code: ST201

Brand: av:link

Manufacturer: av:link

Description

The ST201 TV Screen wall bracket is easy to install of low profile with tilt mechanism. The wall bracket is suitable for TVs of  17 to 42 inch screen size of weight 30 kilo gram or less. The fixing centers for Bracket to TV screen are universal and suitable for VESA fixing system of 200 x 200mm or less.

TV to bracket fixing screws provided are, 4 x M4 25mm, 4 x M5 25mm, 4 x M6 25mm, 4 x M8 25mm ( caution: select screws as required by your TV Screen; other sizes may be required that are not supplied ? )

Features

• Low profile design
• Compatible with VESA mounting patterns
• Installation hardware included ( suitable for most install situations)

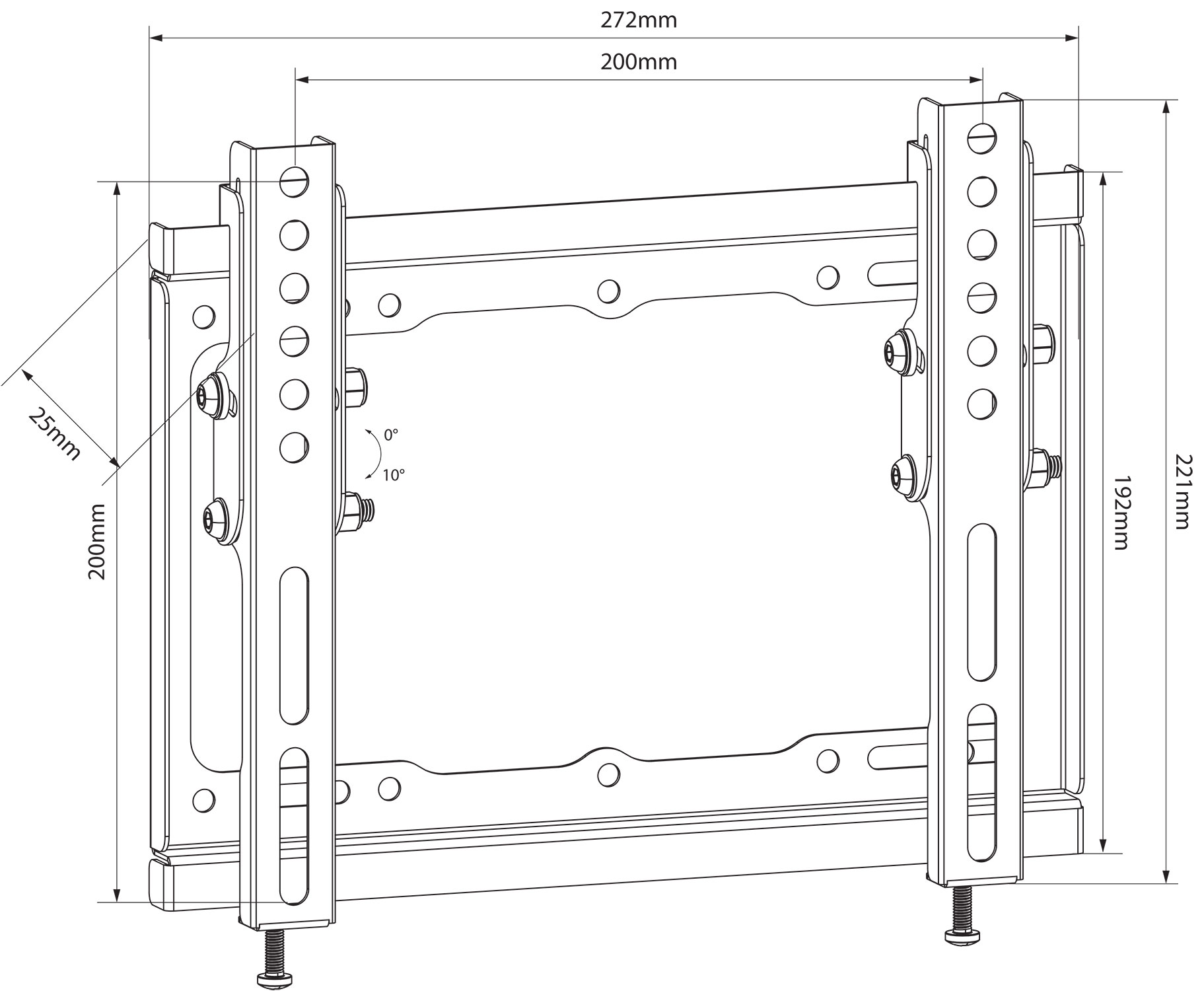

Specifications for TV Wall Bracket ST201

Screen size	17 - 42 inch
Maximum screw fixing centers for TV Screen	200 x 200mm
Maximum VESA fixing system.	200 x 200
Tilt range	0 to 10 deg.
Maximum weight load	20Kg
Distance from wall	25mm
Wall plate dimensions	272 x 192mm
TV bracket dimensions	272 x 221mm
Weight	750g

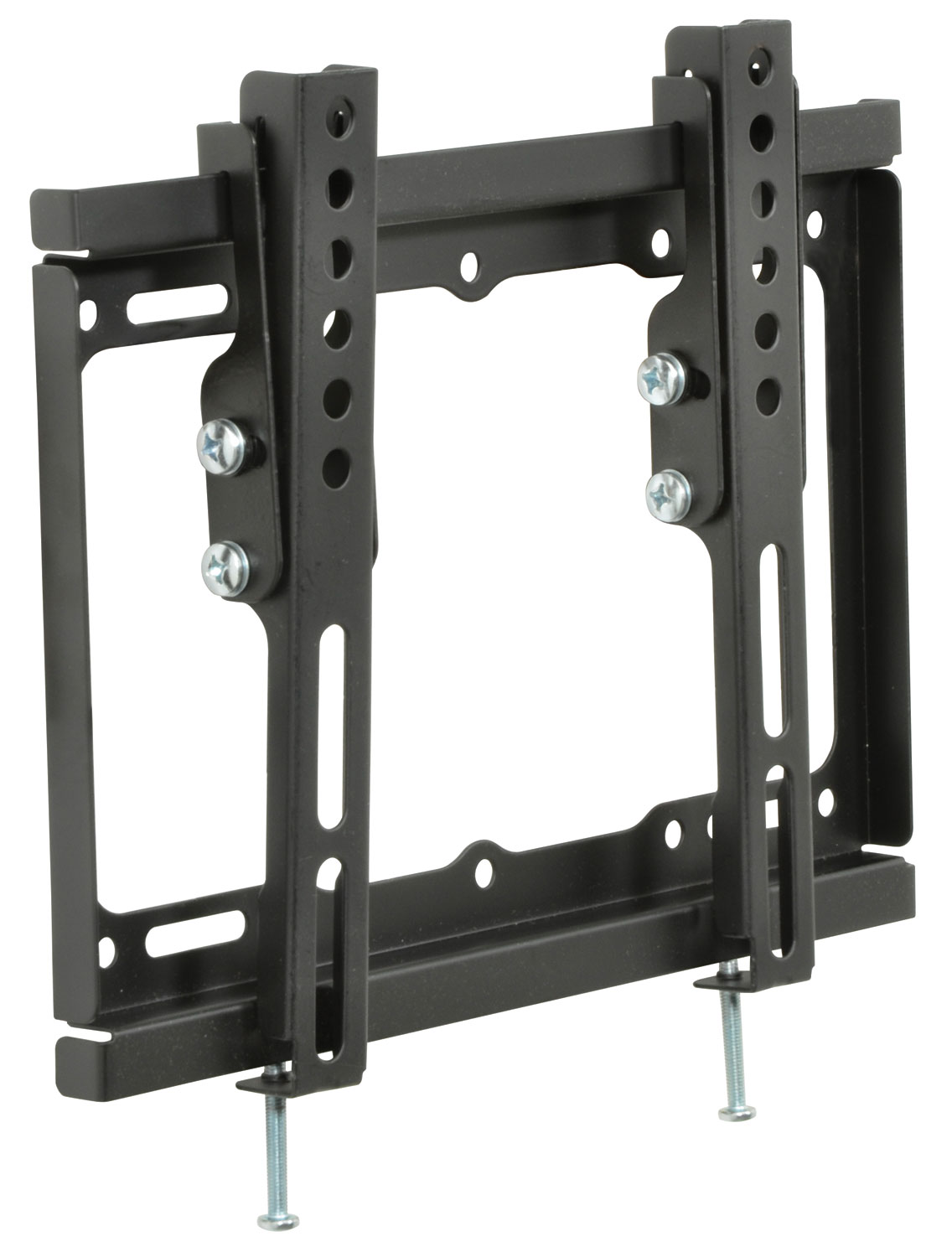

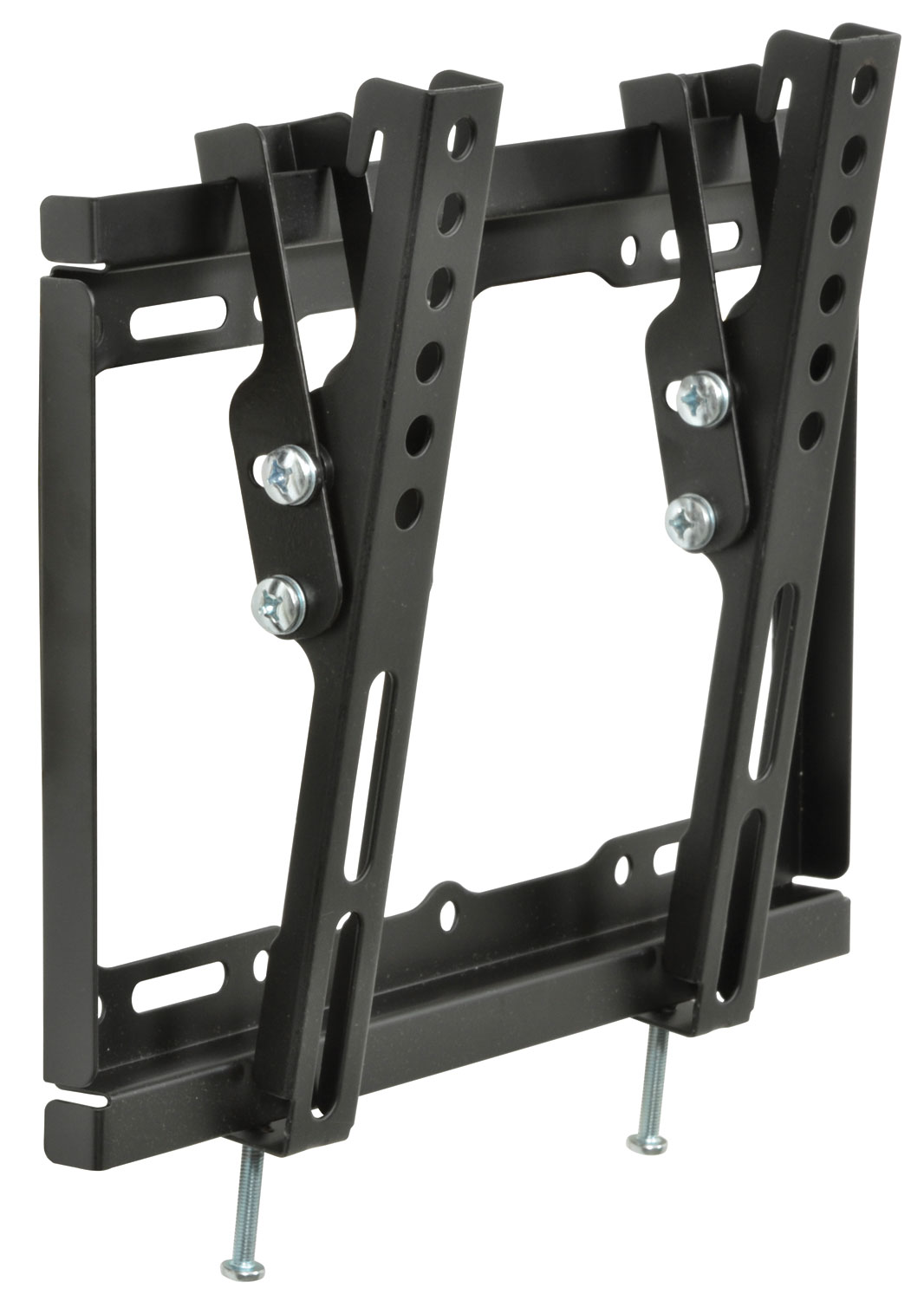

Images of TV Bracket ST201
