400 x 400mm, Twin Braced 3 Point Swival Arm, TV Wall Bracket, 05/054
Item Code : 05/054
TV Wall Brackets, Swivel and Tilt
VonHaus - 400 x 400mm, Twin Braced 3 Point Swival Arm, TV Wall Bracket, 05/054
Item Code: 05/054
Brand: VonHaus
Manufacturer: VonHaus
05/054
Description

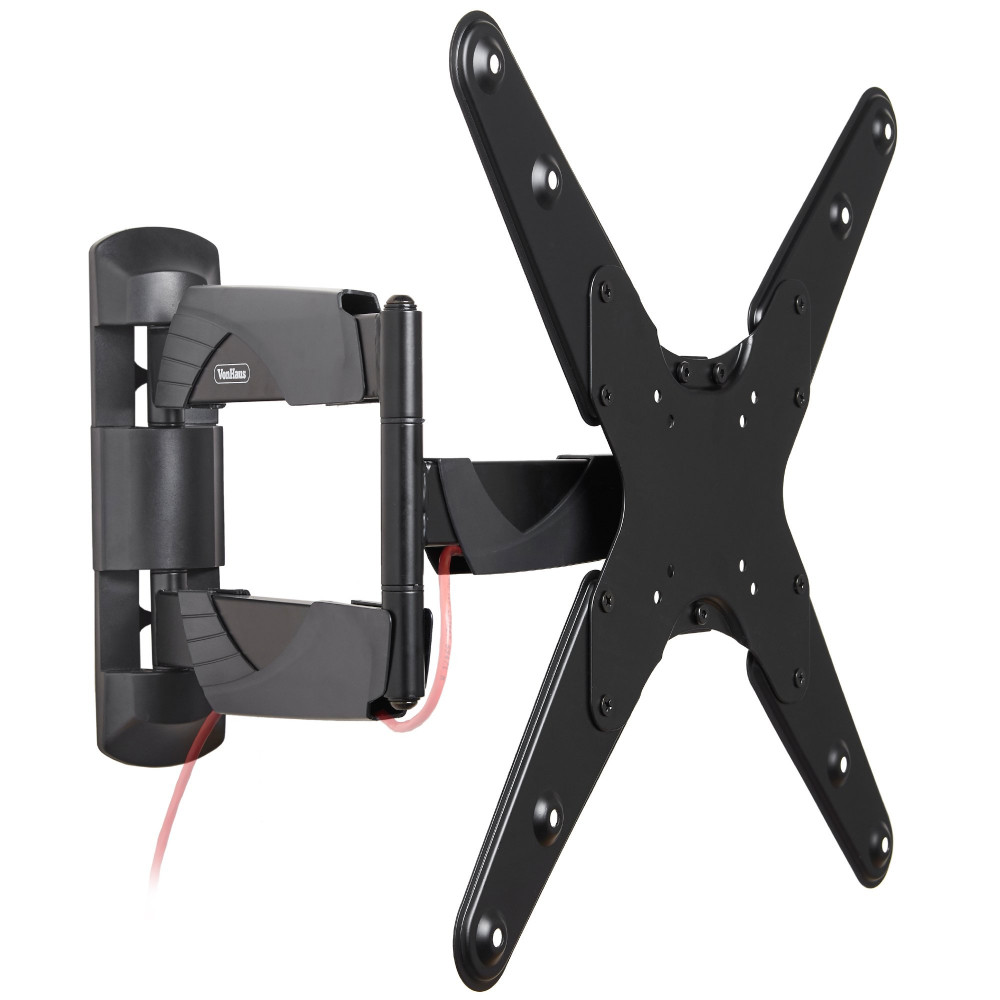

The 05/054 is a full motion TV bracket for LCD, Plasma, LED TVs & Monitors.
When this TV bracket is fully folded, it is only 45mm from the wall. When it is fully extended, it is up to 508mm from the wall.
With a Twin Braced 3-point Swivel Arm system, the TV can be angled left or right by 180 degrees.
The TV bracket also includes a unique tilting mechanism which can be used to angle the TV up and down (-15+10) to ensure you have the ideal viewing angle.Once you get the perfect angle you can lock the TV bracket in place.
Universal mounting pattern fits virtually any 23" - 55" flat-panel TV and monitor of weight 35 kilo gram or less.
The sleek cable management system keeps cables neat.
Features
- Low profile design of 45mm for when not extended.
- Bracket can extend of the wall by upto 508mm
- Forward / Backward Tilt of +10/-15deg.
- Compatible with VESA mounting patterns
Min. 75x75mm
Max.400x400mm - Load Maximum 35Kg
- Installation hardware included ( suitable for most install situations)
Specification
| Screen size | 23 - 55 inch | |
| Maximum screw fixing centers for TV Screen | 400 x 400mm | |
| Maximum VESA fixing system. | 400 x 400 | |
| Tilt range | -15 to +10 deg. | |
| Distance from wall | 45 to 508mm adjustable | |
