Triax - White TV / Radio / Sat

Item Code: 304 262

Brand: Triax

Manufacturer: Triax

Quick Reference links for Triax Euro module System.

Description:

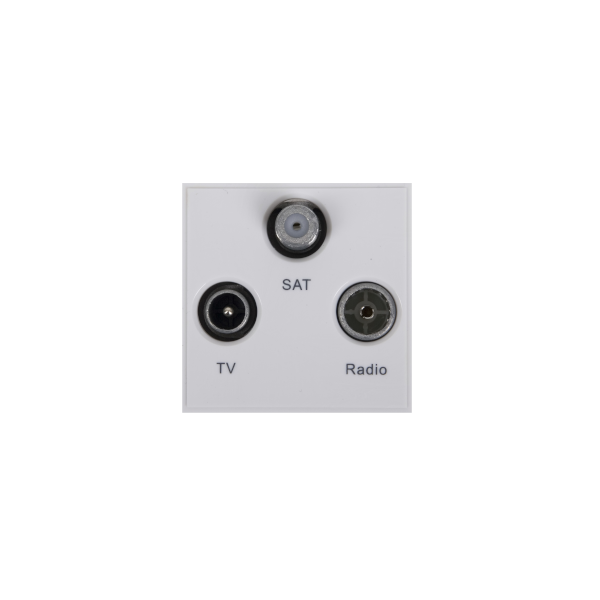

This euro module has 3 ports TV, Sat 1, Radio, and requires one coaxial feed cable. This module has the size name of `Full module` with a size of 50 x 50mm.

Triplexed (TV/Radio/Sat) Module White (50 x 50mm)

Specifications

ORDER INFORMATION
EAN Number	5702663042629
FREQUENCY
Frequency Range FM	87.5...230 MHz
Frequency Range TV	47...68/470...862 MHz
Frequency Range SAT	950...2300 MHz
LOSS
Through Loss IN-FM	3.0 dB
Through Loss IN-TV	2.0 dB
Through Loss IN-SAT	3.0 dB
OPERATIONAL
DC Passthrough SAT	Yes
CONNECTORS
Connector FM	IEC-female
Connector TV	IEC-male
Connector SAT	F-female
MECHANICAL
Design	UK Grid style, 50x50mm
Product Height	50 mm
Product Width	50 mm
Colour	White
Net Weight	0,090 kg
Tara Weight	0,019 kg
Total Weight	0,109 kg
Remarks	Screened Single Terminal and Clamp cable entry Fits 15mm Patress DC through power On SAT
