Triax - White HDMI Socket

Item Code: 304 296

Brand: Triax

Manufacturer: Triax

Quick Reference links for Triax Euro module System.

Description:

This euro module has one port farward facing of HDMI Female Socket (Type A) and a rear access only HDMI Female Socket (Type A), requires one Specialized HDMI cable fitted to the rear with HDMI male plugs. This module has the size name of `Half module` with a size of 25 x 50mm.

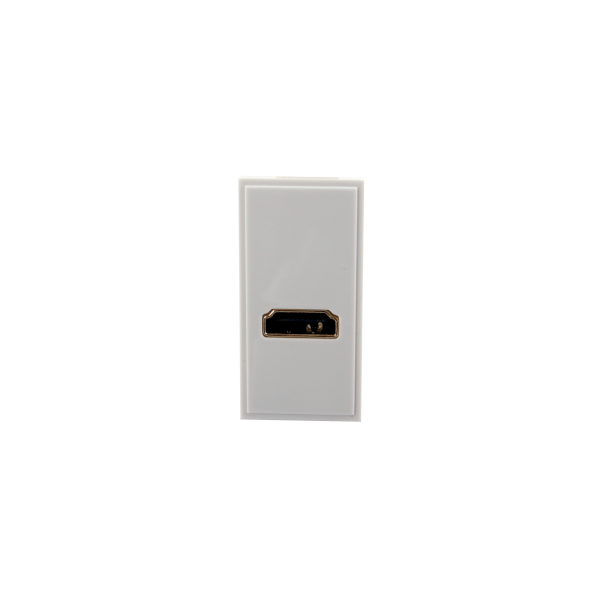

HDMI Module White (50 x 25mm)

Specifications

ORDER INFORMATION
EAN Number	5702663042964
CONNECTORS
Connector HDMI	HDMI female (Type A)
MECHANICAL
Design	UK Grid Style 25x50mm
Product Height	50 mm
Product Width	25 mm
Colour	White
Packaging Height	0,060 m
Packaging Width	0,070 m
Packaging Depth	0,060 m
Net Weight	0,040 kg
Tara Weight	0,015 kg
Total Weight	0,055 kg
Remarks	HDMI Outlet High Speed. Input Connector: Right Angled HDMI Type A (Female) on 125mm flat fly lead.
