Product Details
Triax Euro Module Black
Triax - Triax - Black TV / Sat
Item Code: 304 261
Brand: Triax
Manufacturer: Triax
Triax -Multimedia Euro Module System
This euro module has 2 ports, one port of TV combined Radio and one port of Satellite - requires one coaxial feed cable. This module has the size name of `Full module` with a size of 50 x 50mm.
Product description:

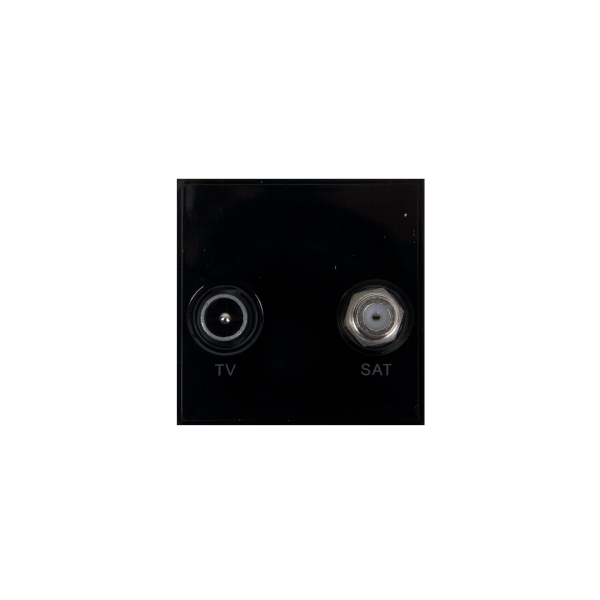

Diplexed (TV/SAT) Module Black (50 x 50mm)
Specifications
ORDER INFORMATION | |
---|---|
EAN Number | 5702663042612 |
FREQUENCY | |
Frequency Range TV | 47...862 MHz |
Frequency Range SAT | 950...2150 (2400MHz) MHz |
LOSS | |
Through Loss IN-TV | 2.0 dB |
Through Loss IN-SAT | 2.5 (3.0@2400MHz) dB |
OPERATIONAL | |
DC Passthrough SAT | Yes |
CONNECTORS | |
Connector TV | IEC-male |
Connector SAT | F-female |
MECHANICAL | |
Design | UK Grid style, 50x50mm |
Product Height | 50 mm |
Product Width | 50 mm |
Colour | Black |
Net Weight | 0,090 kg |
Tara Weight | 0,019 kg |
Total Weight | 0,109 kg |
Remarks | Screened Single Terminal and Clamp cable entry Fits 15mm Patress DC througpower On SAT |
