Triax - Black TV / Radio / Sat
Item Code : 304 263
Product Details
Triax Euro Module Black
Triax - Triax - Black TV / Radio / Sat
Item Code: 304 263
Brand: Triax
Manufacturer: Triax
Triax -Multimedia Euro Module System

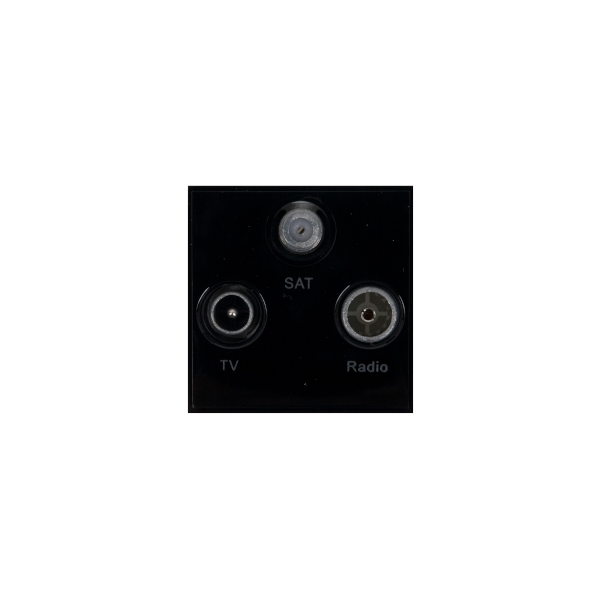

This euro module has 3 ports TV, Sat 1, Radio, and requires one coaxial feed cable. This module has the size name of `Full module` with a size of 50 x 50mm.
Product description:
Triplexed (TV/Radio/Sat) Module Black (50 x 50mm)
Specifications
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702663042636
|
| FREQUENCY | |
| Frequency Range FM | 87.5...230 MHz |
| Frequency Range TV | 47...68/470...862 MHz |
| Frequency Range SAT | 950...2300 MHz |
| LOSS | |
| Through Loss IN-FM | 3.0 dB |
| Through Loss IN-TV | 2.0 dB |
| Through Loss IN-SAT | 3.0 dB |
| OPERATIONAL | |
| DC Pass through SAT | Yes |
| CONNECTORS | |
| Connector FM | IEC-female |
| Connector TV | IEC-male |
| Connector SAT | F-female |
| MECHANICAL | |
| Design | UK Grid style, 50x50mm |
| Product Height | 50 mm |
| Product Width | 50 mm |
| Colour | Black |
| Net Weight | 0,090 kg |
| Tara Weight | 0,019 kg |
| Total Weight | 0,109 kg |
| Remarks | Screened Single Terminal and Clamp cable entry Fits 15mm Patress DC through power On SAT |
