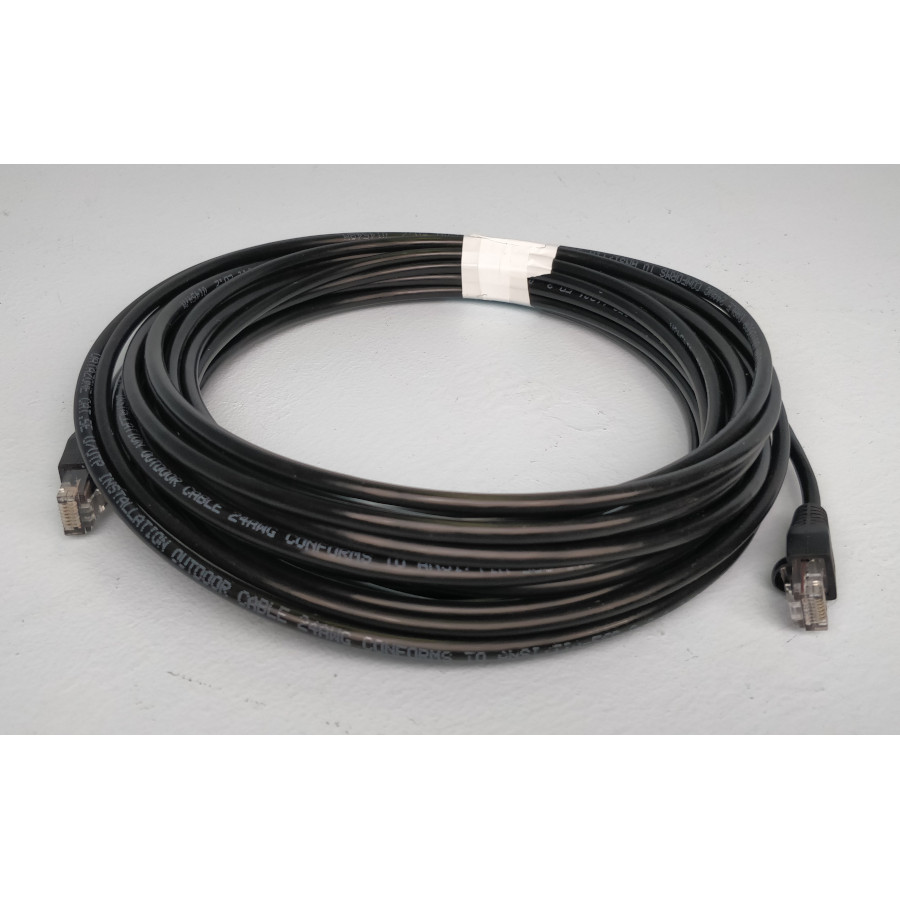

RJ45 CAT5e Copper Outdoor UTP Lead
Item Code : RJ45-5e-Cu-PE-UTP-BLK-40M
Lead length
Special Notice: Leads from 10 to 50 Meters, Prices from £7.00p
Special Notice: Leads from 10 to 50 Meters, Prices from £7.00p
JW Hardy RJ45 Ethernet Equipment Lead.
JW Hardy - RJ45 CAT5e Copper Outdoor UTP Lead
Item Code: RJ45PC-5e-Cu-PE-UTP
Brand: JW Hardy
Manufacturer: JW Hardy
Product Code: RJ45-5e-Cu-PE-UTP
Description
These leads are designed for Ethernet Cabling System, utilizing Category 5 Enhanced cables with solid copper core of size 24AWG in an External LDPE sheath.
These leads with solid copper cores are ideal for POE (Power over Ethernet application) for Ethernet Systems that need cable routes to run from building to building.
Suitable for use with Catenarys, in ducts or on the side of buildings.
These leads are also suitable for systems of Analog CCTV ( note Balum Transformers required).
These leads are pre-terminated to RJ45 Plugs, these leads exceed the TIA/EIA Enhanced Category 5 specifications.
These leads are supplied in convenient lengths of:- 10, 20, 30, 40 and 50 Meter lengths.
Features
- 100 ohm
- Low Density Polyethylene Sheath
- Sheath Colour Black
Specification
| Mechanical Specification | ||
|---|---|---|
| Conductors: | 24 AWG; Solid Copper | |
| Sheath: | 5mm diameter; LDPE | |
| Sheath colour: | Black |
|
| Electrical Specification | ||
| Characteristic Impedance: |
100 ohm | |
| Capacitance: | 52pF per Meter | |
| Velocity Ratio: | 0.65 (65%) | |
