Audio Data Pair Cable - EcoFlex LSZH
Item Code : AudioDataPair-EcoFlex-Purple
Single Pair - Audio/Data Cable
Van Damme - Audio Data Pair Cable - EcoFlex LSZH
Item Code: AudioDataPair-EcoFlex-Purple
Brand: Van Damme
Manufacturer: Van Damme
AudioDataPair-EcoFlex-Purple
Description

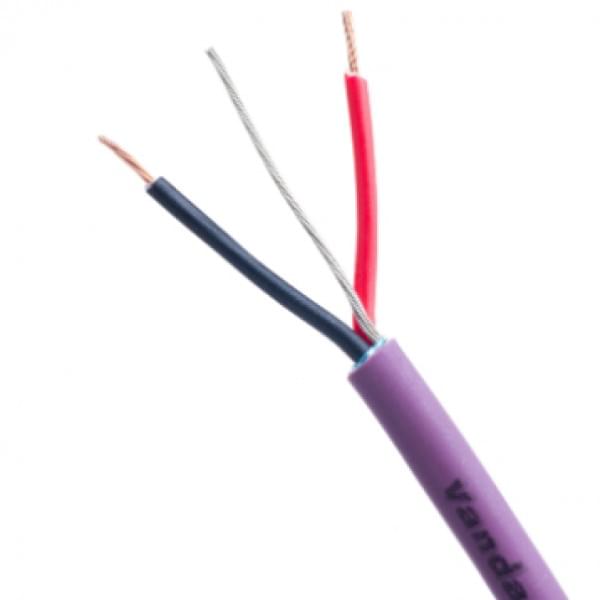

Van Damme Purple Series Digilog Ecoflex is a Low Smoke Zero Halogen (LSZH) jacketed audio data single pair specifically for installation use.
The use of LSZH cables is a specified essential in public buildings and new build construction projects.
Based electrically and mechanically on the Van Damme Green Series range this cable will carry AES/EBU and/or analogue balanced audio as well as paired data signals such as RS485, RS422 and DMX512.
Applications include Any 100 to 110 Ohm balanced data application such as RS422, RS485, DMX512 and timecode
Installation in marine vessels, schools and colleges, government premises and public buildings
Equipment rack wiring where LSZH materials have been specified
For the transmission of analogue and digital audio, paired data and midi signals in an installation environment.
Jacket material specified as the thermoplastic polymer SHF-1; compliant with IEC 60092-360:2014
Electrical Installations in ships - Sheathing materials for shipboard power and communication cables
Fully tested and compliant with the following IEC standards: IEC 60332.1 Fire retardancy of a single cable; IEC 60754.1 Amount of Halogen Gas Emissions; IEC 60754.2 Degree of acidity of released gases; IEC 61034.2 Measurement of smoke density
Ultra-pure oxygen free copper for outstanding Analogue Sound Signal integrity.
Specification
| Mechanical Specification | Conductor | 7 x 0.20 mm bare ultra-pure oxygen-free copper | ||
| Conductor size | 7 x 0.20 mm, 0.22 mm2, AWG 24/7. | |||
| Insulation | Foam skin polyethylene, Red/Blue | |||
| Insulation diameter | 1.4 ± 0.10 mm | |||
| Drain wire | 7 x 0.20 mm tinned ultra-pure oxygen-free copper | |||
| Drain wire size | 7 x 0.20 mm, 0.22 mm2, AWG 24/7 | |||
| Screen | 24 µm Aluminium/Polyester Foil > 150% coverage | |||
| Jacket material | SHF-1 LSZH Polymer | |||
| Overall diameter | 3.9 ± 0.15 mm | |||
| Colour | Red Lilac, RAL 4001 | |||
| Bend radius | 15 x overall diameter | |||
| Operating temperature | -35 to +70 ⁰C | |||
| Electrical Specification | Resistance Conductor | < 90 Ohm/km | ||
| Insulation | > 5000 MOhm/km | |||
| Capacitance | 40 pF/m Core to core 80 pF/m Core to screen | |||
| Impedance | 1 -4 MHz 110 ± 20% Ohms |
