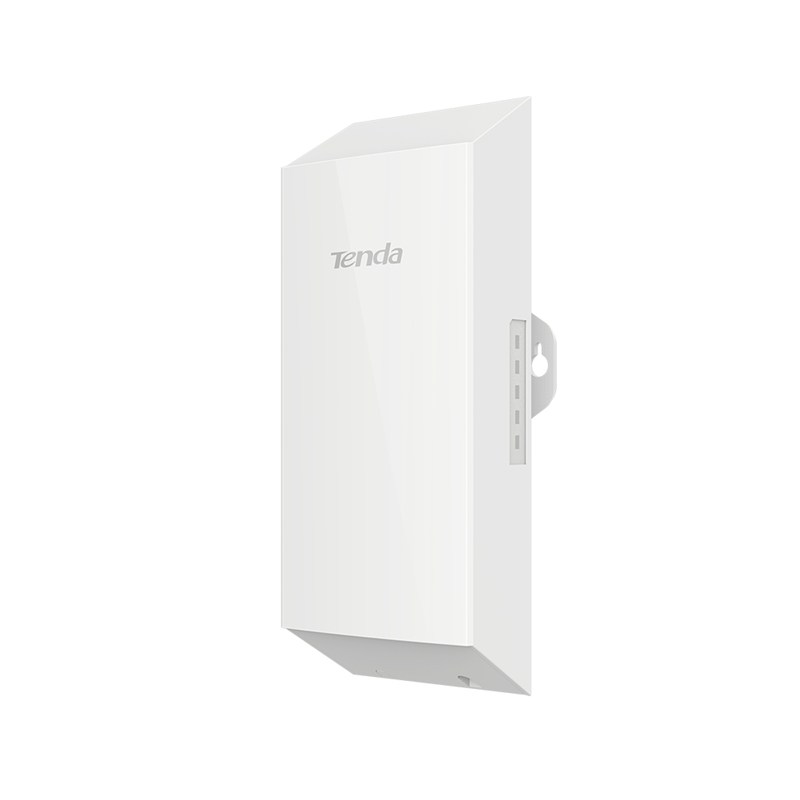

Tenda o1 - Wireless 2.5GHz 300Mbps Outdoor Access Point
Item Code : Tenda - o1
WiFi Access Points Outdoor
Tenda - Tenda o1 - Wireless 2.5GHz 300Mbps Outdoor Access Point
Item Code: Tenda - o1
Brand: Tenda
Manufacturer: Tenda
Tenda - o1
Description
This outdoor wall or Pole mounted Wireless Access Point (WiFi Transmitter/Receiver) model Tenda o1 is a stable and easy-to-use wireless access point also allows wireless Point to Point systems of upto 500 Meters. It is suitable for WIFI coverage in outdoor areas in hotels, small and medium in size, bars, cafes, large houses, WiFi for the Garden. The Tenda o1 operates in the 2.4GHz band with wireless speeds of up to 300Mbps. The 01 has a 8dBi directional antenna to provide an efficient way to pick up and maintains a stable signal for a wireless network connection range up to 500 Meters. With the Simple design and elegant appearance, it can be directly installed on to walls or Mast Mounted. The o1 can also be implemented in Commercial WISP CEP Systems.
Features
- 2.4GHz 11n 300Mbps
- 8dbi directional antenna
- IP64 waterproof enclosure
- AP,Station,WISP operating mode supported
- Up to 30 meters of flexible deployment with included PoE Injector
Specification
| Specification | ||
|---|---|---|
| Dimension | 190.35*80*67.5mm | |
| SSID | Hidden | |
| Mounting | Pole Mount wall Mount | |
| Wireless Client isolation | Long range video surveillance data transmission and WISP CPE | |
| Frequency Rang | 2.4GHz | |
| Wireless Link Rate | 300Mbps | |
| Antenna | Antennas Gain:8dbi Beamwidth:Horizontal: 60° Vertical: 30° | |
| Button | 1*Reset Button | |
| Maximum Power Consumption | 2.6W | |
| Waterproof Level | IP64 | |
| LED | PoE/LAN WiFi LED1 LED2 LED3 | |
| Power Method | DC or Passive PoE | |
| Passive PoE power supply | Passive power over ethenet via PoE/LAN (+4,5pins -7,8pins) up to 30 meters | |
| Input Voltage | 9-12V DC | |
| Reception Sensitivity | MCS0: -92dbm MCS7: -72dbm | |
| Operating Mode | AP/Station/WISP | |
| Standard&Protocol | IEEE 802.11b/g/n | |
| APSD Capable | Support | |
| VLAN Tagging for SSID | Support | |
| Backup/Restore Configuration | Support | |
| Username Managerment | Support | |
| Type | Support | |
| Colour | Support | |
| Retardation deviation | Support | |
| Transmit Power | Adjustable power by 1dBm | |
| Material | Support | |
| Size | Support | |
| Wireless Security | 64/128 WEP WPA-PSK WPA2-PSK WPA&WPA2-PSK WPA WPA2 | |
| SSID Isolation | Support | |
| Packing | Support | |
| DHCP Server | Support | |
| VPN Pass-through | PPTP L2TP | |
| Remote Web access | Support | |
| Schedule Reboot | Support | |
| Page Timeout | Support | |
| Ping Watchdog | Support | |
| Dyndns oip dyndns.org | ||
| Network Diagnoses | Ping Traceroute Signal Scan | |
| Maximum Power Consumption | Support | |
| Firmware Upgrade | Support | |
| Client Limitation For SSID | Support | |
| Wireless Access Control | Support | |
| Syslog | Support | |
| Managed By Controller | PC Software -- CPE Assitant | |
| Package Content | 1*Outdoor Point to Point CPE 1*Power Adapter 1*PoE Injector 2*Plastic Staps 1*Quick Installation Guide | |
| Temperature | Operating Temperature:-30℃ ~ 55℃ Storage Temperature:-40℃ ~ 70℃ | |
| Humidity | Operating Humidity: 10%~90% non-condensing Storage Humidity:10%~90% non-condensing | |
| Default Settings | Default login IP:192.168.2.1 Default Login Username:admin Default Login Password:admin | |
| Certification | FCC CE RoHS | |
