Tenda o3 - Wireless 2.5GHz 150Mbps Outdoor Access Point
Item Code : Tenda - o3
WiFi Access Points Outdoor
Tenda - Tenda o3 - Wireless 2.5GHz 150Mbps Outdoor Access Point
Item Code: Tenda - o3
Brand: Tenda
Manufacturer: Tenda
Description

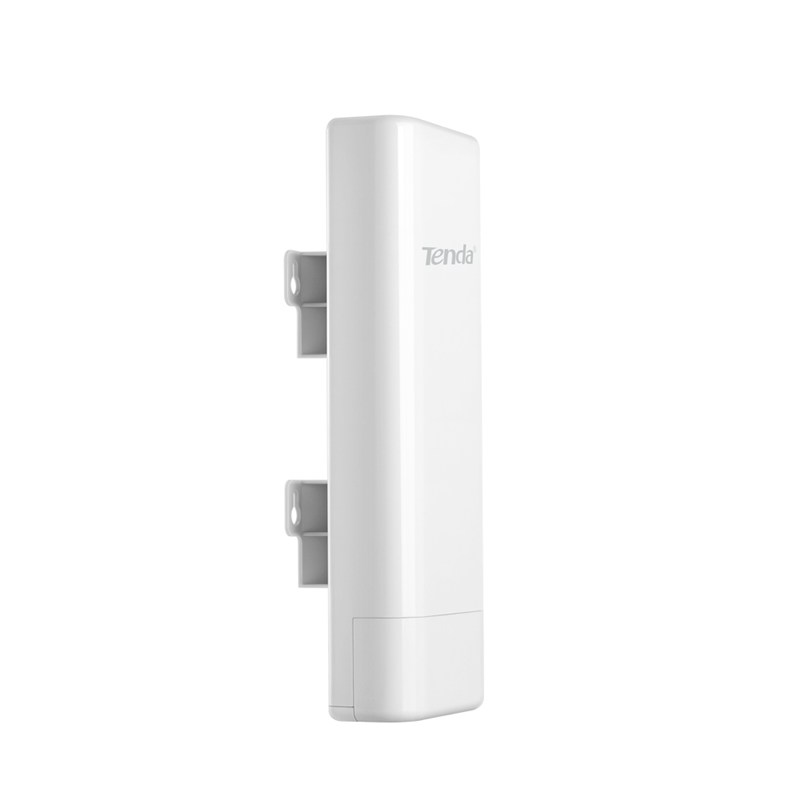

This outdoor wall or Pole mounted Wireless Access Point (WiFi Transmitter/Receiver) model Tenda o3 is a stable and easy-to-use wireless access point also allows wireless Point to Point systems of upto 5 Kilo Meter. It is suitable for WIFI coverage in outdoor areas in hotels, small and medium in size, bars, cafes, large houses, WiFi for the Garden. The Tenda o3 operates in the 2.4GHz band with wireless speeds of up to 150Mbps. The 03 has a 16dBi directional antenna to provide an efficient way to pick up and maintains a stable signal for a wireless network connection range up to 5 Kilo Meters. With the Simple design and elegant appearance, it can be directly installed on to walls or Mast Mounted. The o3 can also be implemented in Commercial WISP CEP Systems.
Tenda - o3
|
Specification
| Specification | ||
|---|---|---|
| Dimension | 270*94.86*67.5mm | |
| Frequency | 2.4GHz | |
| Maximum wireless speed | 150Mbps | |
| CPU Processor | Broadcom 300MHz | |
| Antenna Beamwidth | Horizontal: 60° Vertical: 30° | |
| Waterproof Level | IP64 | |
| Remote Web access | Support | |
| Schedule Reboot | Support | |
| Page Timeout | Support | |
| Dyndns oip dyndns.org | ||
| Network Diagnoses | Ping Traceroute Signal Scan | |
| Maximum Transmit Power | 800mw(29dbm) | |
| Reception Sensitivity | MCS0: -88dbm MCS7: -72dbm | |
| Maximum Concurrent Clients | 15 | |
| Interface | 1*FE PoE/WAN/LAN port 1*FE LAN Port Grounding Terminal 1*RST Button | |
| 3G Access | 12dbi Directional Antenna | |
| Maximum Power Consumption | 6W | |
| Lightning-proof | 4KV | |
| LED | PWR Bridge LAN WAN/LAN | |
| Power Supply | PoE Injector (12v 1A,Cat5e or Better Ethernet Cable Length > 60 meters) | |
| Operating Mode | AP/Station/Universal Repeater/Repeater/P2MP/WISP/Router | |
| Standard&Protocol | IEEE 802.11n/g/b | |
| Features | Enable/Disable Wireless Radio SSID Hidden Wireless Client isolation Sensitivity Threshold | |
WMM Capable APSD Capable Wireless Access Control Wireless Client list | ||
| Security | 64/128 WEP WPA-PSK WPA2-PSK WPA&WPA2-PSK WPA WPA2 | |
| Transmit Power | Adjustable power by 1dBm | |
| DHCP Server | DHCP Server Clients list | |
| VPN Pass-through | PPTP L2TP | |
| Management Tool | Time&Date Setting System Log Firmware update Backup/Restore Configuration Username Managerment | |
| Package Content | O3Power Adapter PoE Injector Ethernet cable Quick Installation Guide | |
| Temperature | Operating Temperature:-20℃ ~ 55 Storage Temperature:-40℃ ~ 70℃ | |
| Humidity | Operating Humidity:10%~90% non-condensing Storage Humidity:10%~90% non-condensing | |
| Default Settings | IP Address: 192.168.2.1 Login Username:admin Login Password:admin | |
| Certification | FCC CE RoHS | |
