TEG1024D - Switch 24-Port Gigabit Switch
Item Code : Tenda - TEG1024D
Product Details
Gigabit Ethernet Switch

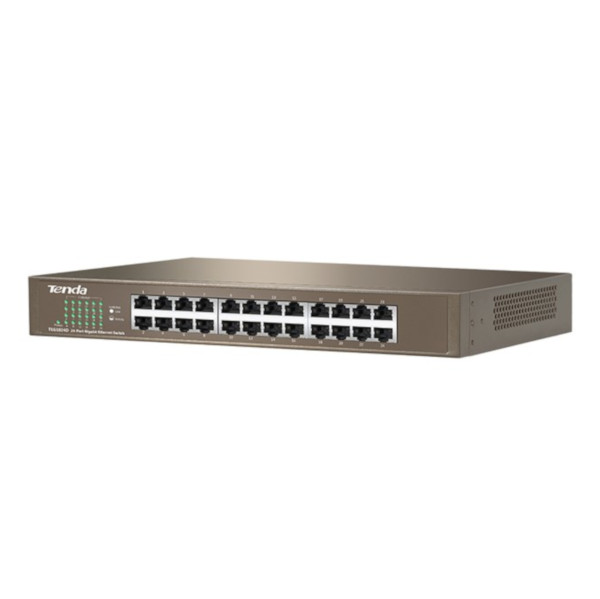

Tenda - TEG1024D - Switch 24-Port Gigabit Switch
Item Code: Tenda - TEG1024D
Brand: Tenda
Manufacturer: Tenda
Description
The Tenda TEG1024D 24*10/100/1000 Mbps auto-negotiation RJ45 ports, up to 2000 Mbps of full duplex transmission rate, line-speed forwarding by all ports, and large cache capacity ensure the timely transfer of large files and stable streaming video. Stay connected for 7*24.
Specification
Standard&Protocol
|
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3x
|
Indicator
|
24 x Link/Act
1 x Power |
Interface
|
24*10/100/1000M Base-T Ethernet ports (Auto MDI/MDIX)
|
Lightning Protection
|
6KV for power supply
6KV for all 24 RJ45 ports |
Store & Forward
|
Yes
|
exchange capacity
|
48 Gbps
|
Packet Forwarding Rate
|
35.7Mpps |
Mounting options
|
Desktop or 19inch Rack Mount ( Rack Mount Brackets included)
|
MAC Address Table
|
8K
|
Input Voltage
|
AC：100-240V～ 50/60Hz
|
Dimension
|
294 x 178 x 44mm 1U ( W x D x H )
|
Port Features
|
Standard:
The switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other.
|
Environment
|
Operating Temperature: -10℃~40℃
Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
