PoE30G-AT - PoE Injector 30Watt

Item Code : PoE30G-AT



Product Details

Tenda™   POE Gigabit Ethernet Switch

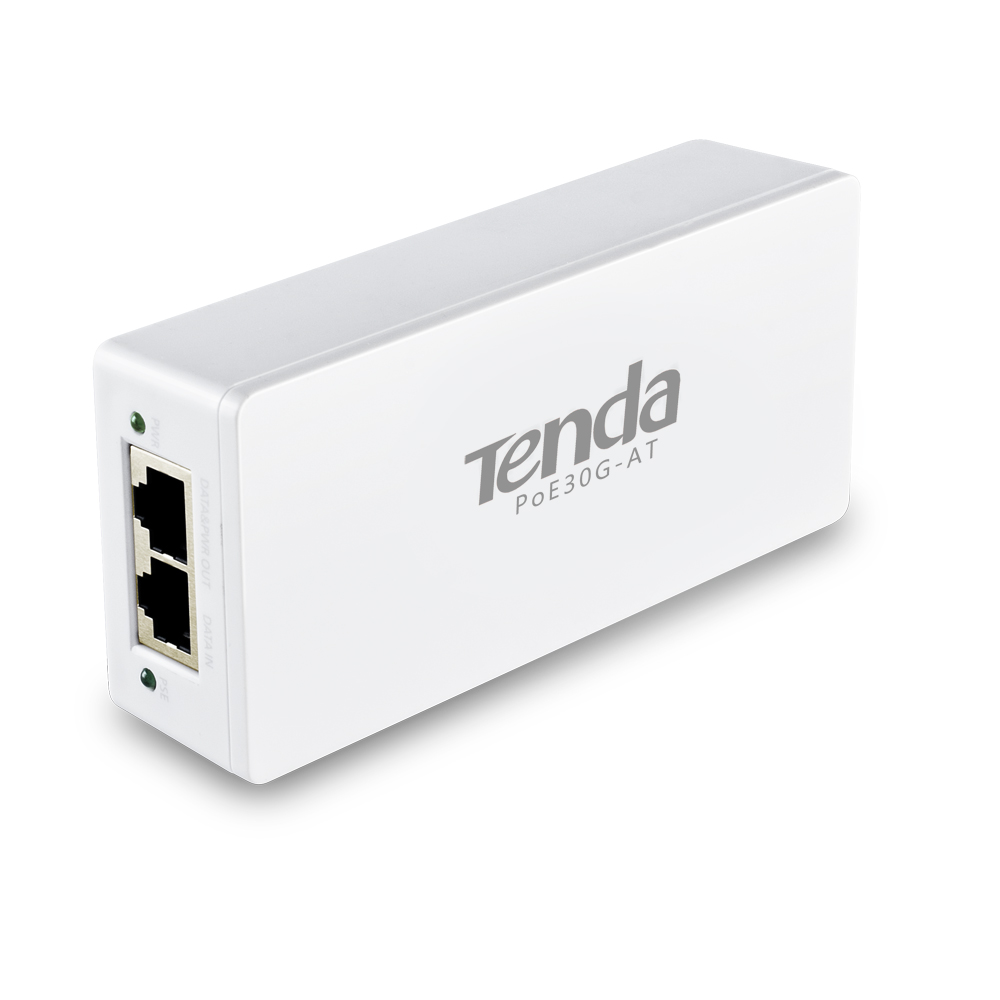

Tenda - PoE30G-AT - PoE Injector 30Watt

Item Code: PoE30G-AT

Brand: Tenda

Manufacturer: Tenda


Description

PoE30G-AT / Switch / PoE Injector delivers up to 30W output power per port

The Tenda PoE30G-AT is the IEEE802.3 AT Gigabit PoE injector, which fully conforms to the standard of wtih 802.3, transmitting power through Ethernet cable, the maximum transmission distance can reach 100 meters. The PoE injector has two Ethernet gigabit data ports and an output port combination of data and power. In addition, the device can be used for Ethernet device IEEE802.3af/ compatible PoE power applications such as wireless AP, VoIP phone and web CAM. The power supply of Ethernet cable not only provides system reliability, traditional power grid expansion, but also simplifies the deployment of power lines.

Specification

Description PoE Injector
Standard & Protocol Compatible with:-
IEEE802.3,
IEEE802.3u,
IEEE802.3ab,
IEEE802.3af,
IEEE802.3atStandard
CSMA/CD,
TCP/IP
Features Support the powered devices compatible with:-
IEEE802.3af、
IEEE802.3at Standard
Transmission range up to 100M
Plug and play
Port 1 GE port - 1 data&power output port supporting PoE
Indicator Power On (PWR)
Power over Ethernet (PoE)
Dimension 131mm*60mm*33mm
Power Output 30W
Operation Temperature 0℃~40℃
Storage Temperature -40℃~70℃
Operating Humidity 10%~90% (noncondensing)
Storage Humidity 5%~90% (noncondensing)
Certification CE\FCC\ROHS
