16-Port 100Mbps Switch - S16

Item Code : S16



Product Details

Tenda™   100 Megabit Ethernet Switch

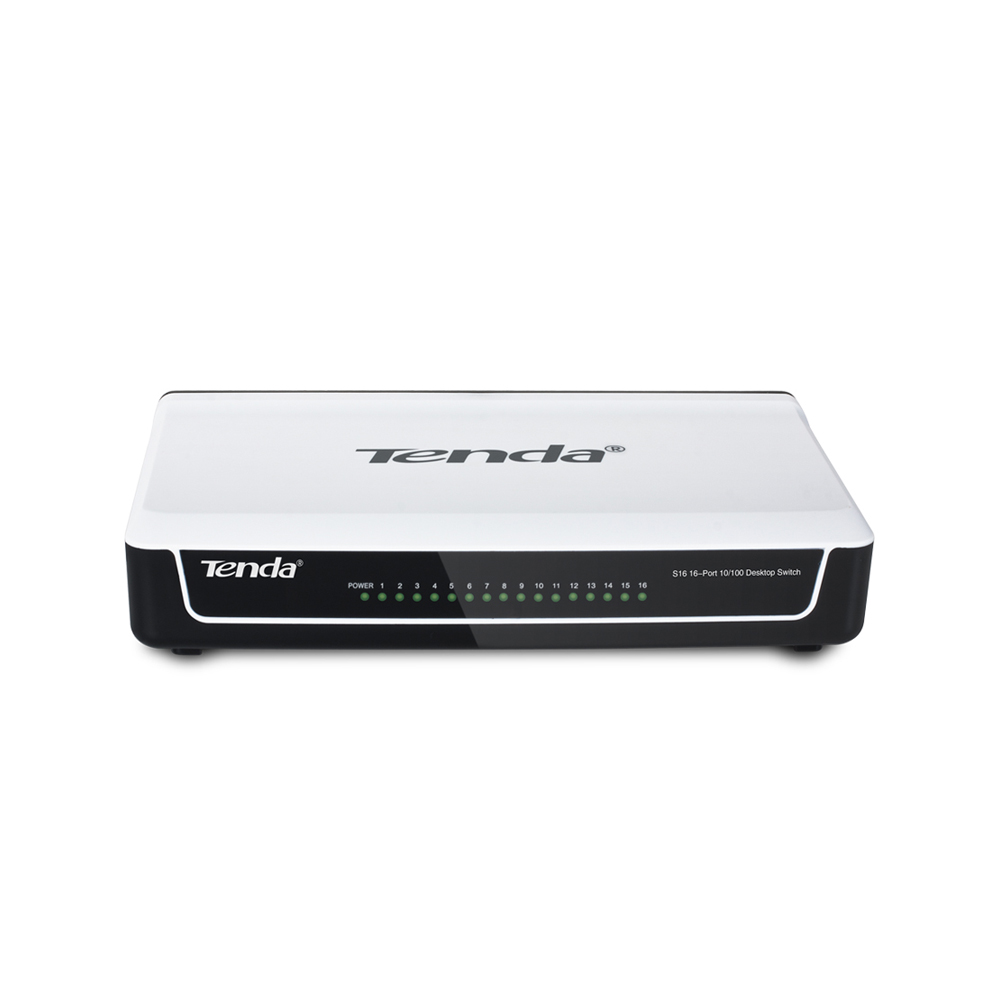

Tenda - 16-Port 100Mbps Switch - S16

Item Code: S16

Brand: Tenda

Manufacturer: Tenda

S16

Description

The Tenda 16-port Ethernet Switch S16 is a desktop switch specially designed for families and office use with 16 x 10/100 Mbps auto-negotiation ports with full duplex rate up to 200Mbps bring blazing fast Internet access.

Plug-and-play design makes installation easily in no time. No matter if you are a tech-savvy enthusiast or a first-time user the S16 is very easy and intuitive to setup without time-consuming operations, in fact the S16 is fully automated with no user intervention required.

With ultra-compact design the Tenda S16 also supports desktop and wall-mounting so you can put the S16 anywhere as you want and move flexibly.

Compatible with computer, printer, smart TVs, NAS, smart game console, IP-cameras, Tenda S16 makes your home network fun & easy.

Features

  • 16 Autosensing 10/100Mbps switched ports with auto MDI/MDI-X crossover detection
  • Compliant with IEEE802.3,IEEE802.3u,IEEE802.3X standard
  • 16 x LED indicators display the connection status
  • Store-and-forward mode
  • Supports to connect with IP-camera
  • Plug-and-play without configuration
  • Up to 200Mbps full duplex bandwidth on each port
  • Compact size fits into any environment
  • Address Learning and Aging, and Data Flow Control for enhanced transmission

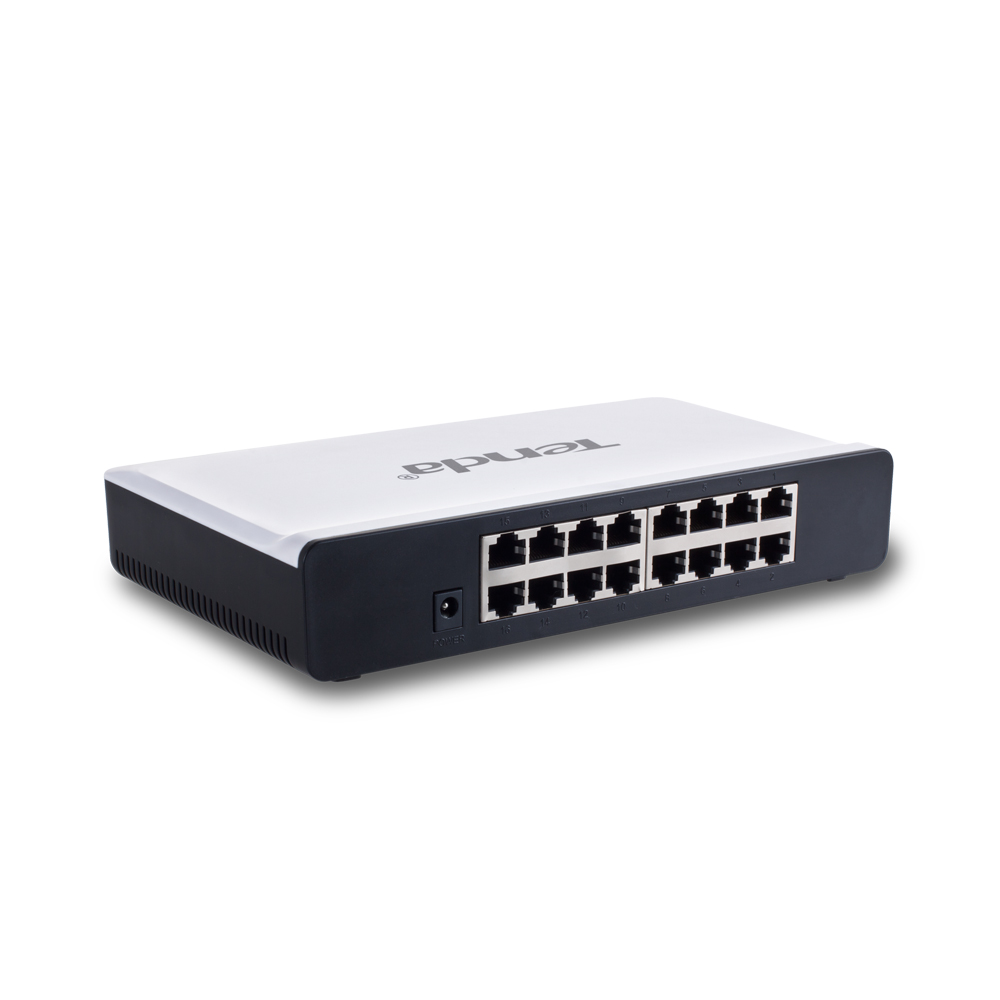

RJ45 Port View of S16

RJ45 Port View of S16

Specification

Specification
Standard&ProtocolIEEE 802.3
IEEE 802.3u
IEEE 802.3x
Port16 x 10/100M auto-negotiation RJ 45 ports (Auto MDI/MDIX)
Transmission Media 10Base-T: UTP Cat 3( or better)
100Base-TX: UTP Cat5
1000Base-T: Cat.5e UTP
Packet Forwarding Rate10Mbps:14880pps
100Mbps:148800pps
PowerOutput power: 9.0V 0.6A (external power adapter)
Input Power :AC:100~240V;50/60Hz
Dimension218mm x 135mm x 41.6mm(L x W x H)
Indicator1 x power indicator
16 x status indicator
Backbound Bandwidth 3.2 Gbps
MAC Address Table4K
Power ConsumptionStandby: 0.8W
Maximum:2.15W
Forwarding ModeStore-and-Forward
Access ControlCDMA/CD
TemperatureStorage Temperature: -40℃~70℃
Operating Temperature: 0℃~40℃
HumidityStorage Humidity: 5%~90% non-condensing
Operating Humidity: 10%~90% non-condensing
CertificationCE
FCC
RoHS
Package Content1 x Installation Guide
1 x 16-port Ethernt Switch
1 x Power Adapter (9V 1A)
