CC6V 6.5inch Ceiling Speaker

Item Code : 952.153UK

Product Details

adastra™   Combined, Low impedance(Z) - 100 Volt Line, Ceiling Loud Speakers

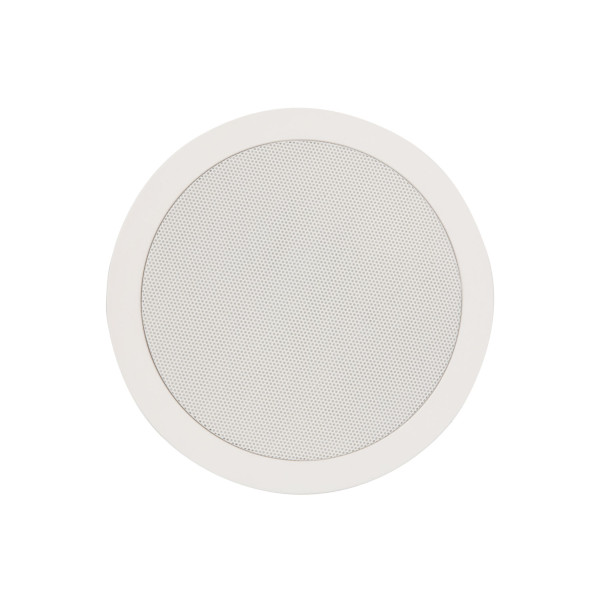

adastra - CC6V 6.5inch Ceiling Speaker

Item Code: 952.153UK

Brand: adastra

Manufacturer: Triax

2-way quick fit ceiling speakers with PP mica bass driver and directional dome tweeter giving an excellent frequency response, all housed in a white polymer frame with metal grille.

Product description:

CC6V 100V Ceiling Speaker with Control 6.5 Inch

  • Rotary selector switch for 100V line tappings or 8 Ohms
  • Fitted with "dog-ear" mounts for fixing to ceiling tiles 1-20mm in thickness
  • Spring loaded terminals for easy connection

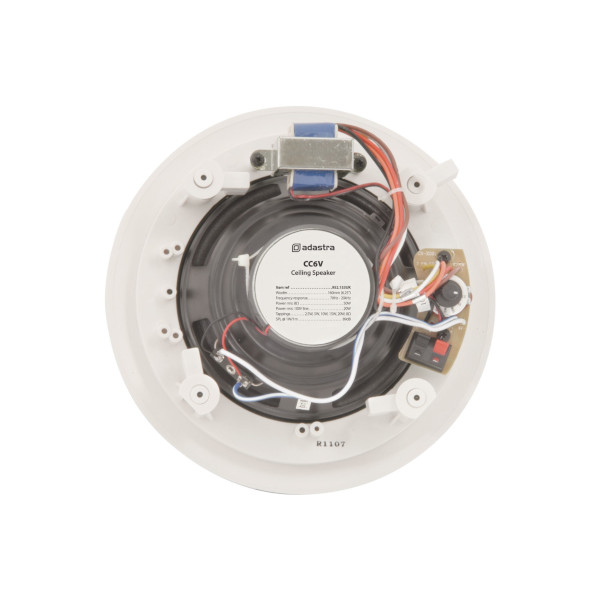

Rear View of CC6V 6.5inch Ceiling Speaker
EAN Number 5015972053614
Woofer 165mm in diameter (6.5inch)
38mm  in diameter (1.5inch)
Frequency response
70Hz - 20KHz
Power RMS
50Watt at 8ohm or 20Watt at 100Volt
Fixing hole cut out
193mm in diameter
Mounting depth
SPL @ 1W/1m
87dB (+-2dB)
Tappings 2.5, 5, 10, 15 or 20 Watt or 8 ohm 50 Watt
Dimensions 88mm in depth by 202mm in diameter
Weight 1.15Kg

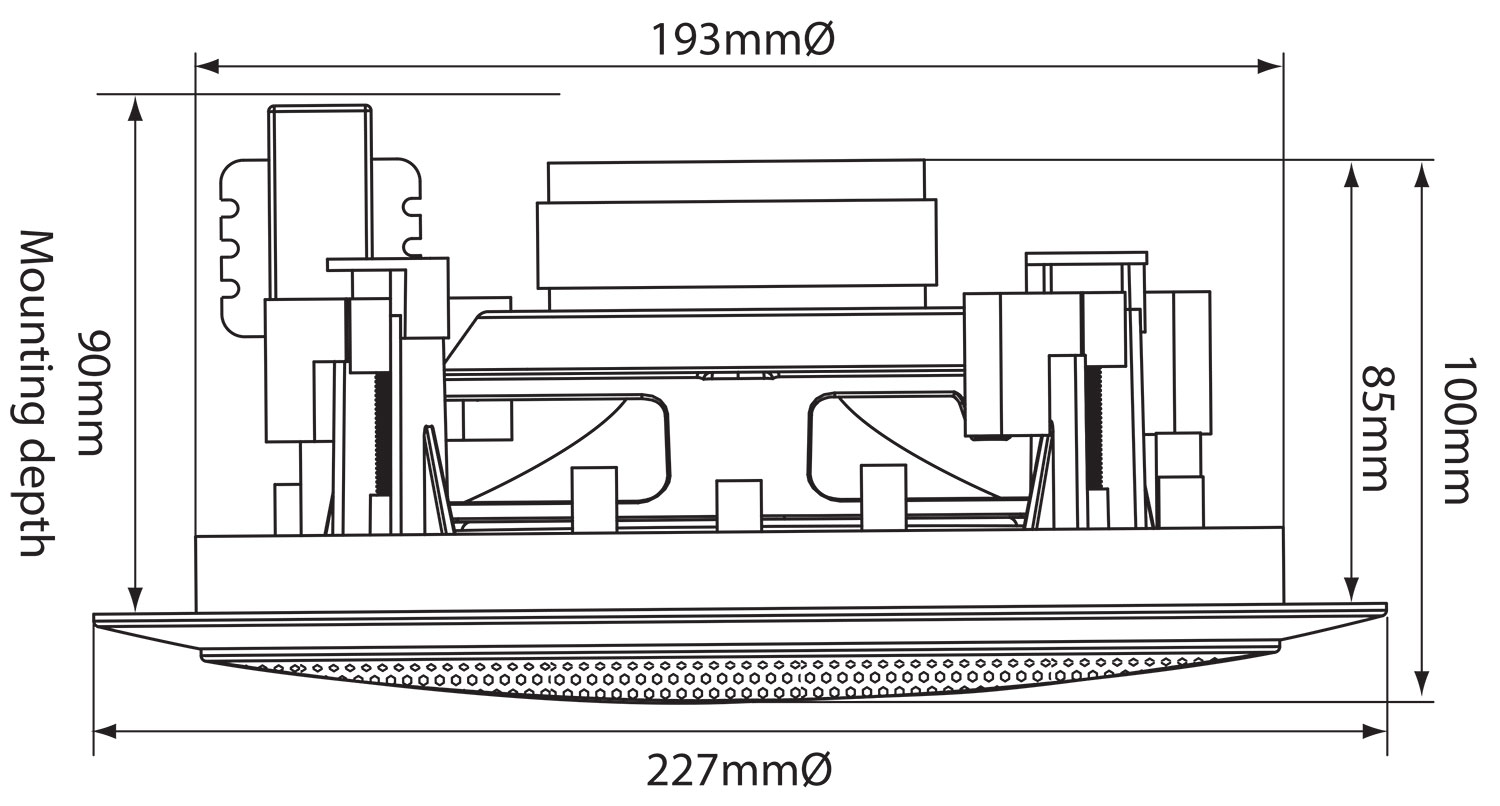

Diagram Dimensions
Technical Drawing of CC6V 6.5inch Ceiling Speaker
