Kramer - 16 Port Master or Room Controller with PoE - Kramer Model SL-240C
Item Code : SL-240C
Product Details
![Kramer™]()
Audio Visual Control
Kramer - Kramer - 16 Port Master or Room Controller with PoE - Kramer Model SL-240C
Item Code: SL-240C
Brand: Kramer
SL-240C
Description
The SL−240C is a compact master/space controller (Kramer Control brain) with PoE. It can operate over Ethernet with control interfaces that include: four bidirectional RS−232, four IR, four GPI/O, and four relays. It controls devices such as scalers, video displays, audio amplifiers, Blu−ray players, sensors, screens, shades, door locks, and lights. Multiple Kramer Ethernet control gateways can be used to add remote I/O ports.
Features
- Space Controller — Controls any AV device/display with its corresponding logic.
- High Performance Architecture — Enables a scalable and flexible programming platform.
- 4 RS–232 Bidirectional Control Ports — For controlling devices via bi–directional serial control protocols.
- 4 IR Emitter & 1 IR Receiver Control Ports — Control devices via IR control protocols and learn commands from IR remotes.
- 4 GPI/O Control Ports — Control devices via general purpose I/O ports, program configured as digital input, digital output or analog input interface for controlling sensors, door locks, audio volume and lighting control devices.
- 4 Relay Control Ports — Control devices via relay contact closure, such as opening and closing drapes, shades, blinds, and projection screen scrolling.
- Resilient powering with PoE and optional PSU (not included).
- Network Support — 10/100/1000Mbps Ethernet.
- LED Indicators — I/O port state and system status.
- Software Management Support — Kramer Control, API.

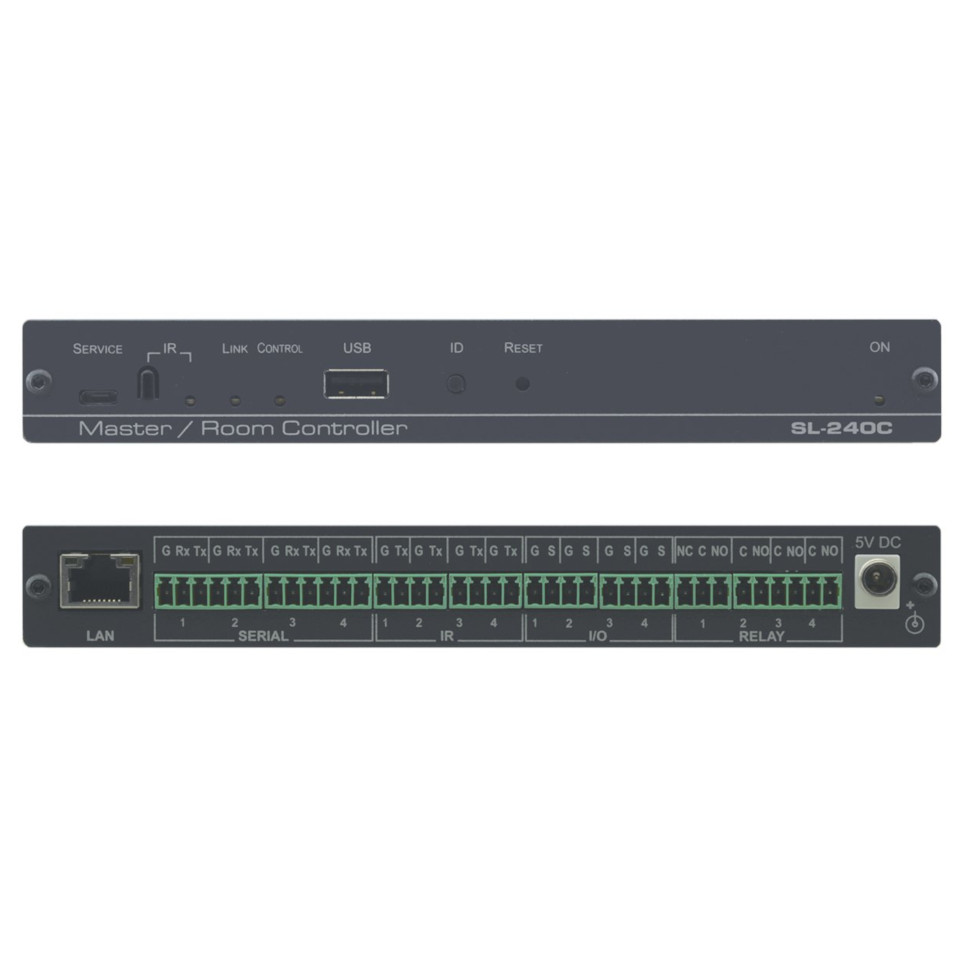

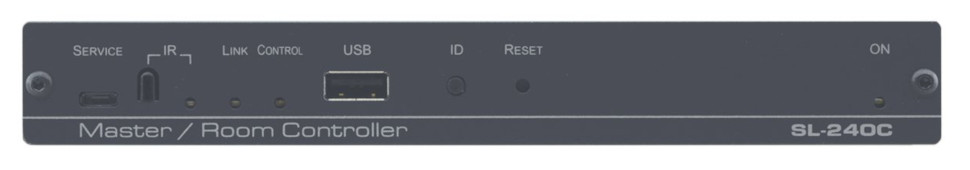

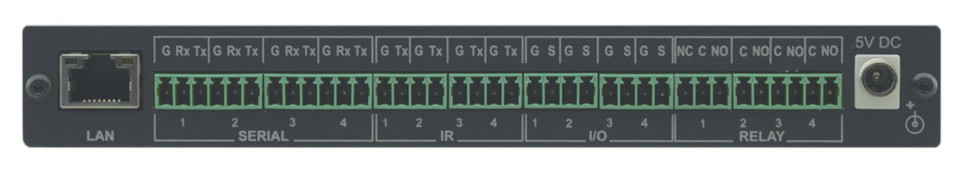

Kramer Controller SL-240C
|
|
|
|
Specification
| BIDIRECTIONAL PORTS | 4 RS–232 serial on 3–pin terminal blocks, 4 GPI/O on 2–pin terminal blocks, 1 Ethernet on a RJ–45 connector, 1 mini–USB connector for firmware upgrade | |
| INPUTS | 1 built–in IR sensor (for learning) | |
| OUTPUTS | 4 IR out and 4 relays on 2–pin terminal block connectors | |
| INDICATORS | LED indicator for each port and function | |
| PROCESSOR SPEED | 1GHz | |
| MEMORY | 512MB RAM, 4GB Flash | |
| POWER CONSUMPTION | 5V DC, 2A | |
| POWER SOURCE | PoE (for extra power resiliency, connect to the optional 5V DC power supply) | |
| Product Dimension | 18.75cm x 11.50cm x 2.54cm (7.38" x 4.53" x 1.00" ) W, D, H | |
| Product Weight | 0.4kg (1.0lbs) approx. | |
| Shipping Dimension | 34.50cm x 16.50cm x 5.20cm (13.58" x 6.50" x 2.05" ) W, D, H | |
| Shipping Weight | 1.0kg (2.2lbs) approx. |
