Audio Mixers

Description

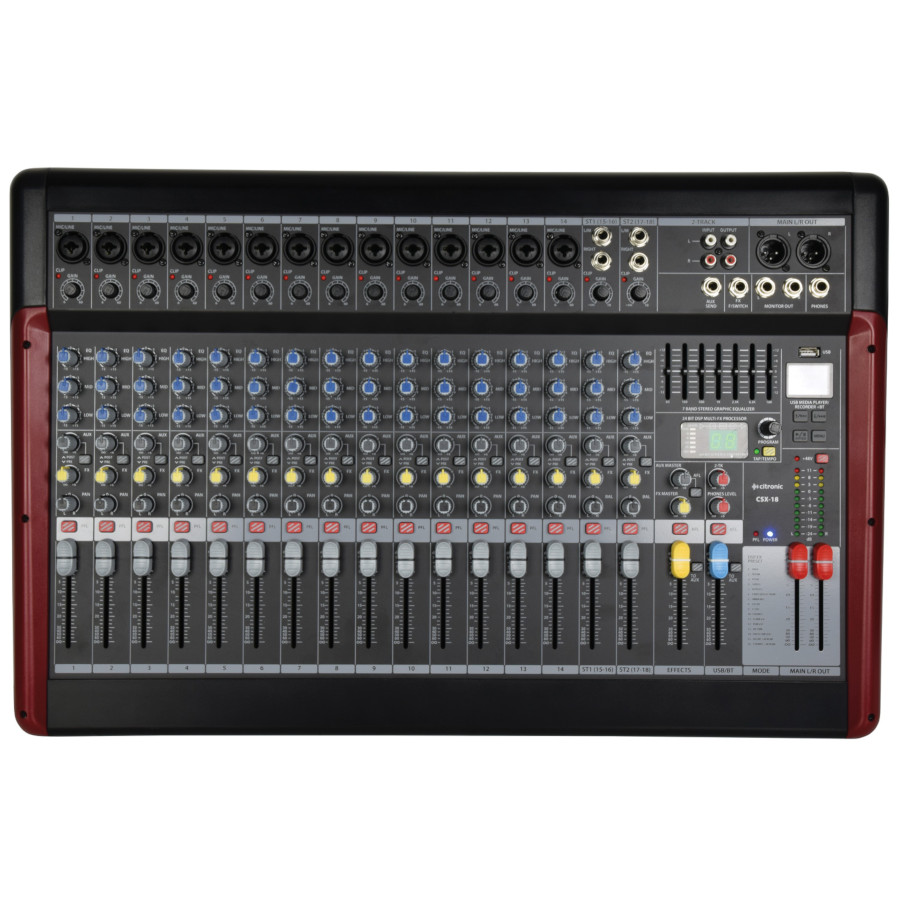

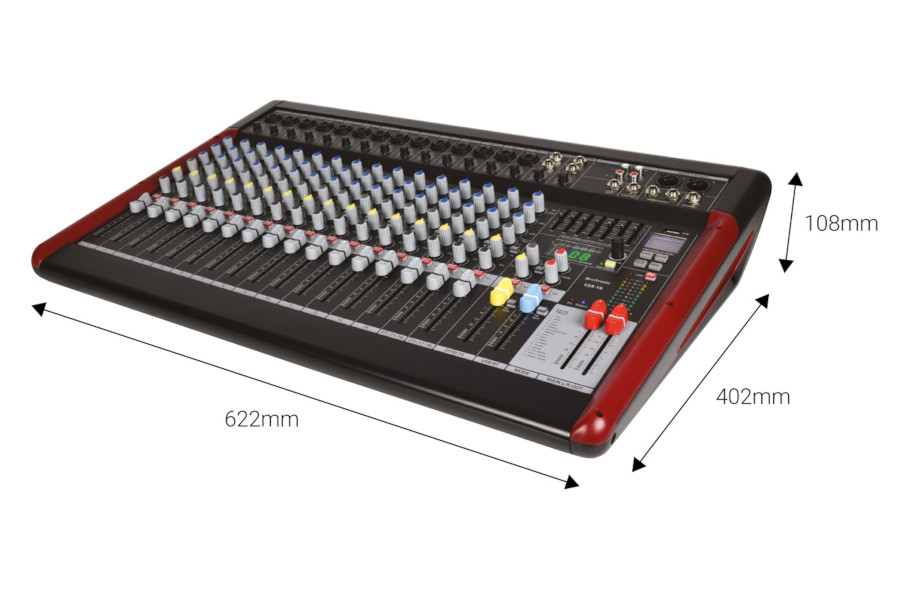

CSX Live Mixing Console with BT and DSP Effects

Fully featured live mixing console with 14 mono mic/line inputs on XLR/jack.

2 stereo line jack inputs.

All channels have gain, 3-band EQ, switchable pre/post aux output, FX send, pan, PFL switch and 60mm channel faders.

Phantom power is switchable to all XLR inputs for condenser microphones and active DI boxes.

Internal effects take the form of a 16-program 24-bit DSP engine with independent level fader and AFL switch for monitoring.

An inbuilt media player can accept a USB memory stick for playback of stored audio tracks and can also record the mix output for documenting rehearsals or performances.

Blue Tooth wireless compatibility enables pairing with a smart phone or tablet for remote playback.

Global EQ is handled by a 7-band graphic EQ and the overall mix is fed from master faders to left & right balanced XLR outputs.

A 2-track RCA line input has a level control for mixing in a playback source.

2-track RCA output can be connected on to recording equipment or as an additional output feed if required.

Low noise and clean audio path with enough features and routing options for live performances, conferences and theatre productions.
