Wall Bracket, Heavy Duty with Low Profile
Item Code : WB-HDLP
Product Details
JW Hardy Aerial`s Mast - Support Bracket
JW Hardy - Wall Bracket, Heavy Duty with Low Profile
Item Code: WB-HDLP
Brand: JW Hardy
Manufacturer: JW Hardy

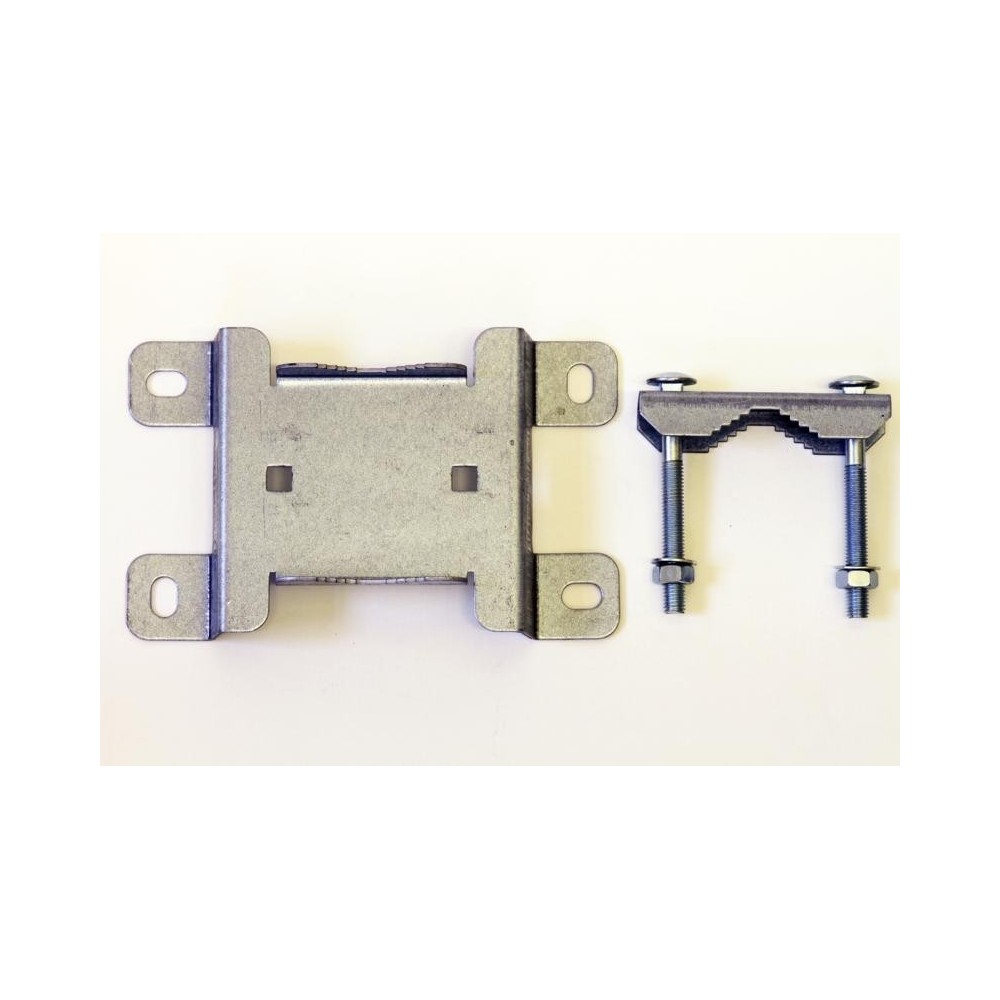

Wall Bracket, Heavy Duty with Low Profile

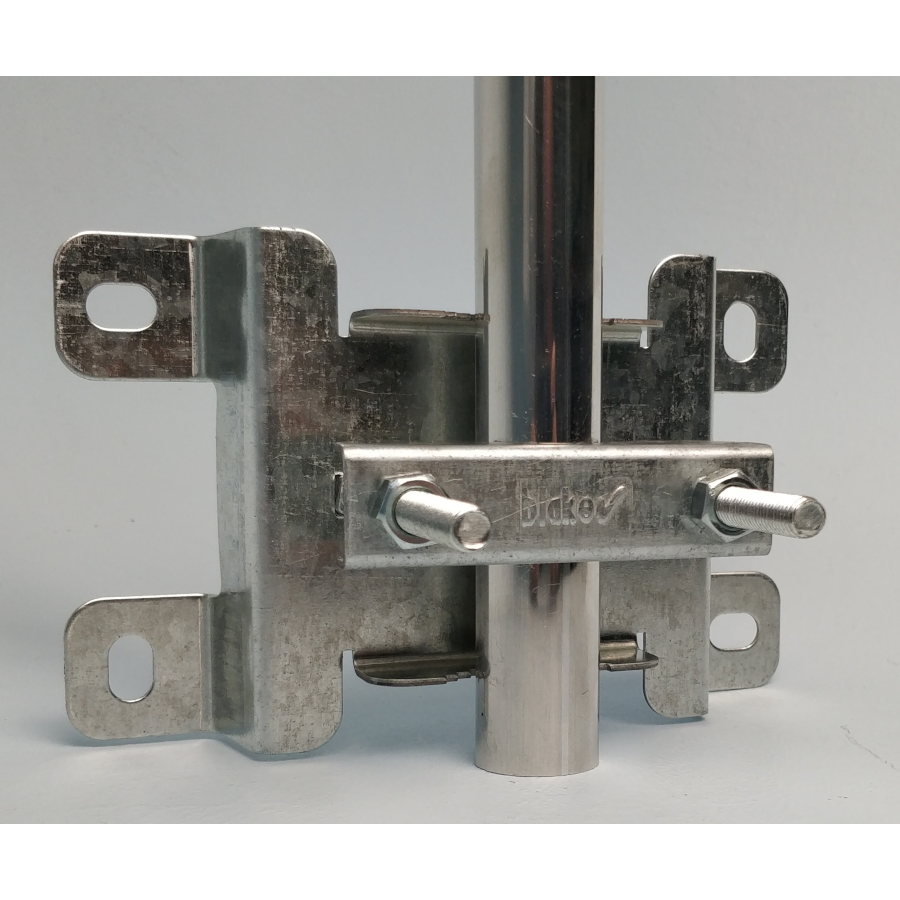

Note: The Mast as featured in the sales picture is not included in the price and is supplied as a separate item.
Wall Bracket Type: WB-HDLP
|
Specification
| Mast sizes diameters | between 1 inch (25.4 mm) to 1.5 inch (38 mm) | |
| Fixing Hole | 4 holes of 9 x 14mm (designed for use with 8mm Coach bolts) | |
| Fixing centres for Wall Bolts | 145mm Horizontal 75mm Vertical | |
| Dimensions | 170mm Width 105mm Height 110mm Depth off wall to include Mast Bolt length | |
| Mast Bolts + Nuts | 2 x Bolts with Nuts 7 x 80mm | |
| Materials (Bracket & Clamp) | Zinc Plate Steel | |
| Construction (Bracket & Clamp) | Wall Plate, Pressed Plate Mast Clamp, Pressed Plate | |
| Bolts with Nuts | Zinc Plated Steel. |
