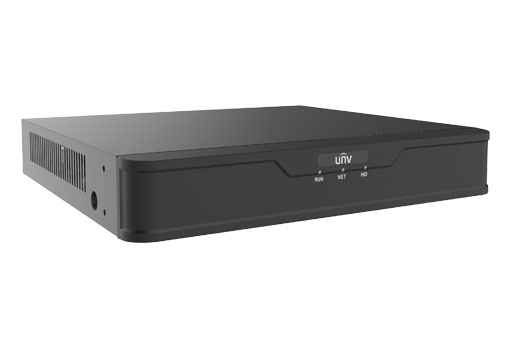

NVR 8channel, 80Mbps, 8MP, 8PoE

Item Code : TM-308 UNVR

Product Details

Network Video Recorder (NVR)

Item Code: TM-308 UNVR

Brand: Technomate

Manufacturer: UniView

Support Ultra 265/H.265/H.264 video formats
8-channel input
Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
Support 1-ch HDMI, 1-ch VGA,HDMI at up 4K(3840x2160) resolution
HDMI and VGA simultaneous output
Up to 8MP resolution recording
1 SATA HDD up to 10 TB
Support cloud upgrade

Video/Audio Input	IP Video Input	8-ch
	Two-way Audio Input	1-ch, RCA
Network	Incoming Bandwidth	80Mbps
	Outgoing Bandwidth	64Mbps
	Remote Users	128
	Protocols	P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output	HDMI Output	3840x2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
	VGA Output	1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
	Recording Resolution	4K/8MP 5MP 4MP 3MP 1080p 960p 720p D1 2CIF CIF
	Audio Output	1-ch, RCA
	Synchronous Playback	8-ch
	Corridor Mode Screen	3 4 5 7 9
Decoding	Decoding format	Ultra 265 H.265 H.264
	Liveview/Playback	4K/8MP 5MP 4MP 3MP 1080p 960p 720p D1 2CIF CIF
	Capability	2 x 4k@30, 3 x 5MP@30, 4 x 4MP@30, 5 x 3MP@30, 8 x 1080p@30
HDD	SATA	1 SATA interface
	Capacity	up to 10TB for each disk
External Interface	Network Interface	1 RJ45 10M/100M self-adaptive Ethernet Interface
	USB Interface	Rear panel: 1 x USB2.0, Rear panel: 1 x USB3.0
PoE	Interface	8 independent 100 Mbps PoE network interfaces
	Max Power	Max 30W for single port Max 108W in total (13.5W for each)
	Supported Standard	IEEE 802.3at, IEEE 802.3af
General	Power Supply	52V DC Power Consumption: ≤8 W (without HDD)
	Working Environment	-10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing)
	Dimensions (W×D×H)	260mm × 240mm × 47mm (10.2"×9.4"×1.9 ")
	Weight	1kg (2.20 lb) without HDD
