Small Universal Bracket, Small Foot Zinc Plated
Item Code : SB-Foot
Product Details
JW Hardy Aerial`s Mast - Support Bracket
JW Hardy - Small Universal Bracket, Small Foot Zinc Plated
Item Code: SB-Foot
Brand: JW Hardy
Manufacturer: JW Hardy
Foot

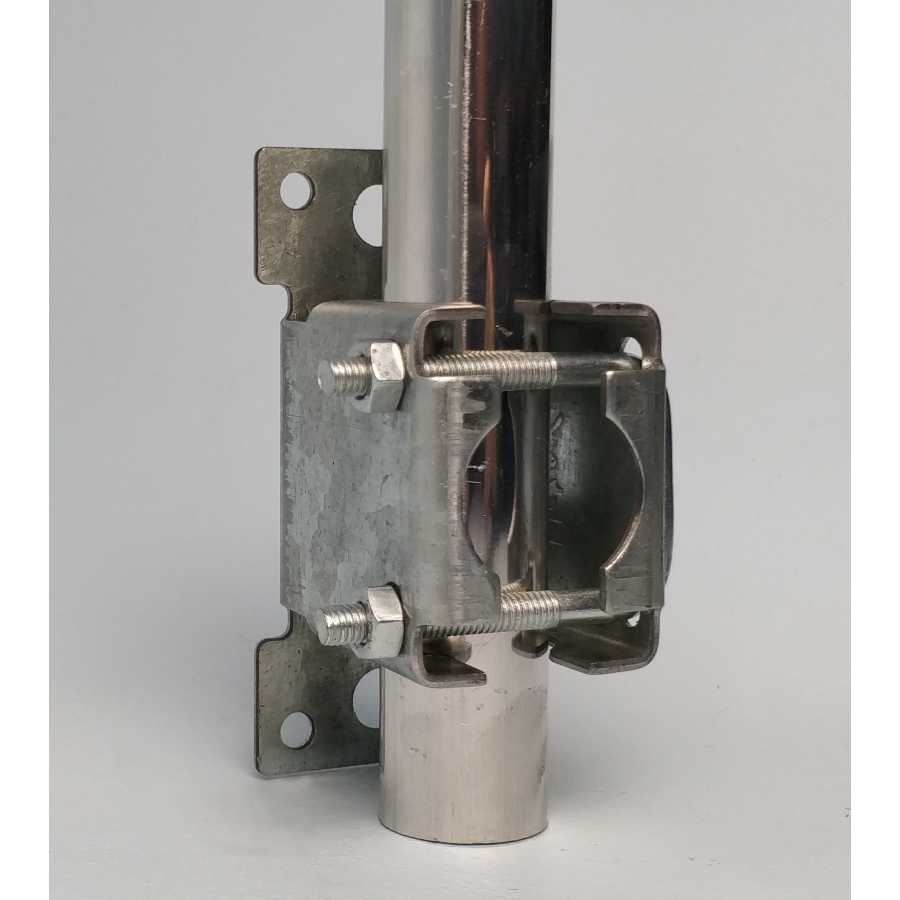

Note: The Mast as featured in the sales picture is not included in the price and is supplied as a separate item.
Small Bracket for Wall/Faica or Loft Type: SB-Foot
|
Specification
| Mast sizes diameter | only 1 inch (25.4 mm) | |
| Fixing Method 1 | 2 x 10mm Plug with 8mm Coach Bolt 2 holes of 10mm diameter Vertical Fixing Centres 80mm | |
| Fixing Method 2 | 4 x 4-5mm wood screws 4 holes of 6mm diameter Horizontal fixing centers 30mm Vertical Fixing Centers 88mm | |
| Dimensions | 44mm Width. 102mm Height. 58mm Depth. | |
| Materials (Bracket) | Zinc Plate Steel | |
| Construction (Bracket) | Pressed Plate | |
| U Bolts with Nuts | Zinc Plated Steel |
