1U Tuneable Dual UHF Beltpack Microphone System : citronic RU105-N

Item Code : RU105-N



Special Notice: This Item is only sold when part of an installed Audio System.

Special Notice: This Item is only sold when part of an installed Audio System.

Product Details

Citronic™   UHF Microphone

Citronic - 1U Tuneable Dual UHF Beltpack Microphone System : citronic RU105-N

Item Code: RU105-N

Brand: Citronic

Manufacturer: Citronic


Description

Single channel PLL tuneable UHF wireless system with beltpack transmitter with a neckband microphones & a lavalier microphone.

The receiver unit is compatible with standard 19" racks when using the included rack ears.

The RF carrier frequency is selected on the receiver and synchronized to the transmitter via infra-red at the touch of a button.

Up to 4 RU105 systems can be operated together on the EU licence-free band.

Caution: this single channel receiver can only be used with one microphone at a time, the kit of parts however comes with both a neckband microphones and a lavalier microphone it is the users choice/preference to which microphone is used.

Features

  • PLL tunable with 81 UHF frequencies
  • Licence free operation in UK & EU
  • Pilot tone & mute circuit for stable signal
  • Rack-mounting accessories included
  • Supplied with mains adaptor and 2 x AA batteries
  • List of Supplied Items with this Kit RU105-N.

  • 1 x UHF receiver
  • 1 x Beltpack transmitter
  • 1 x Neckband microphone
  • 1 x Lavalier microphone
  • 2 x AA batteries
  • 1 x UHF antenna
  • 1 x Antenna lead
  • 1 pair of Rack-mounting ears
  • 1 x Mains power adaptor

Images of RU105-N

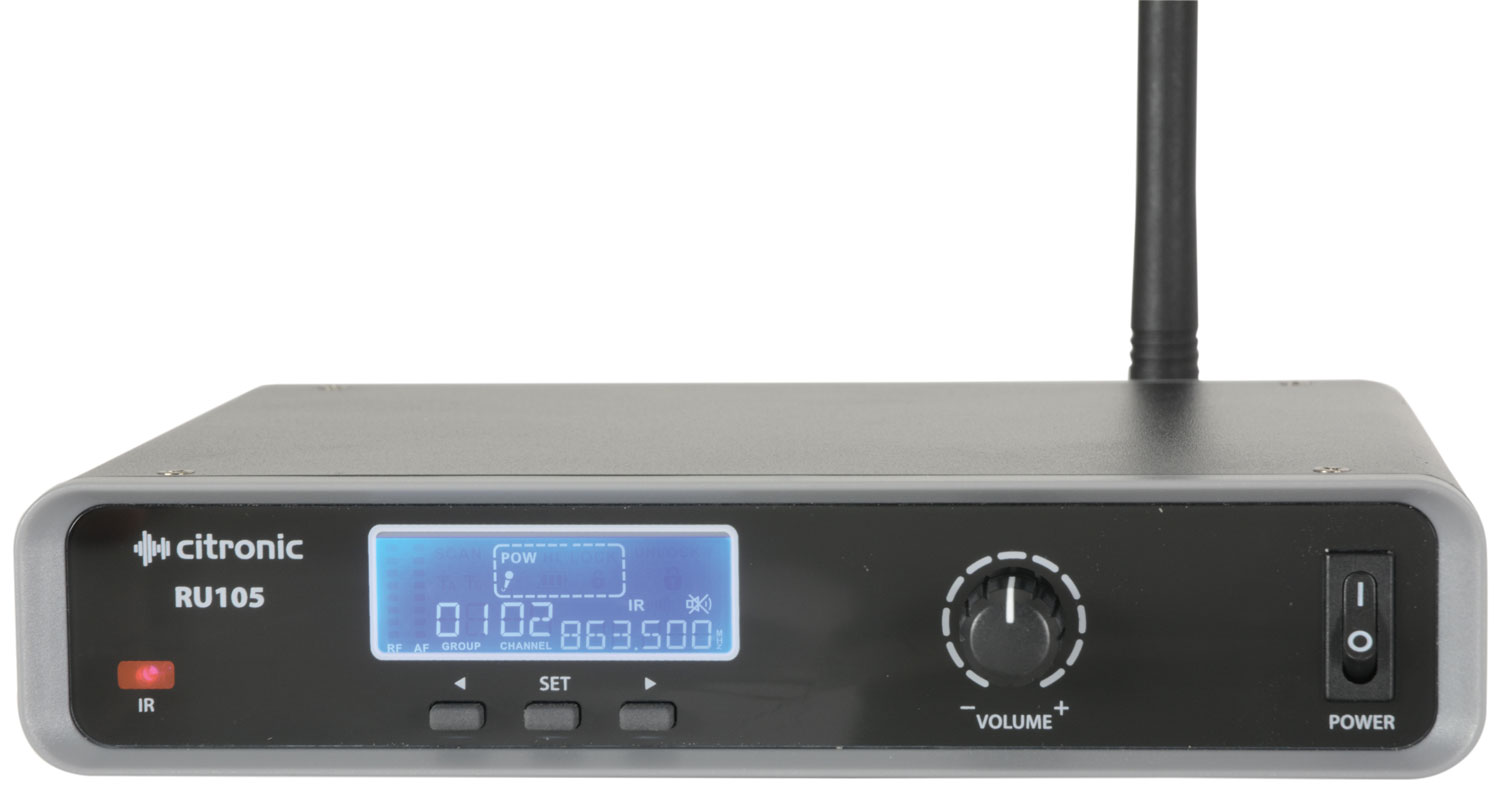

Front of Receiver RU105-N

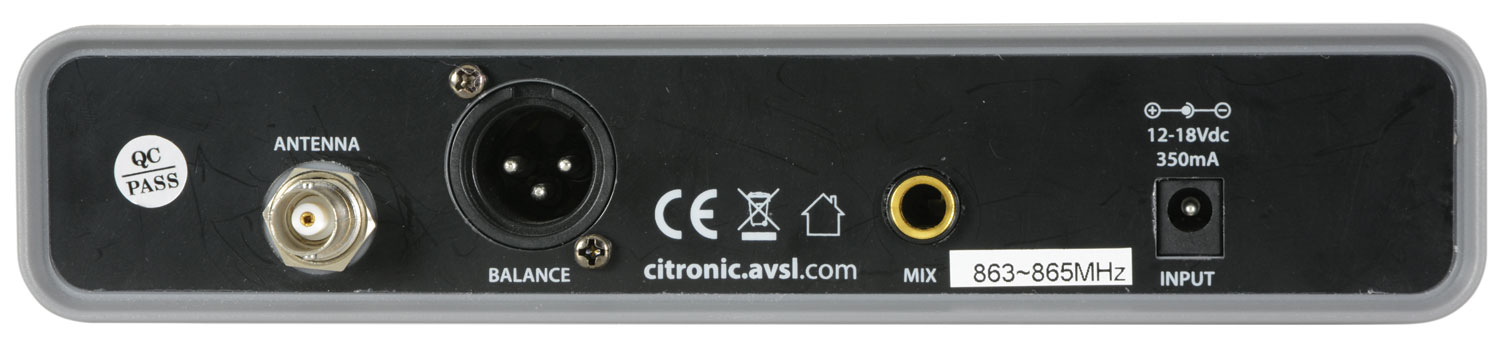

Rear of Receiver RU105-N

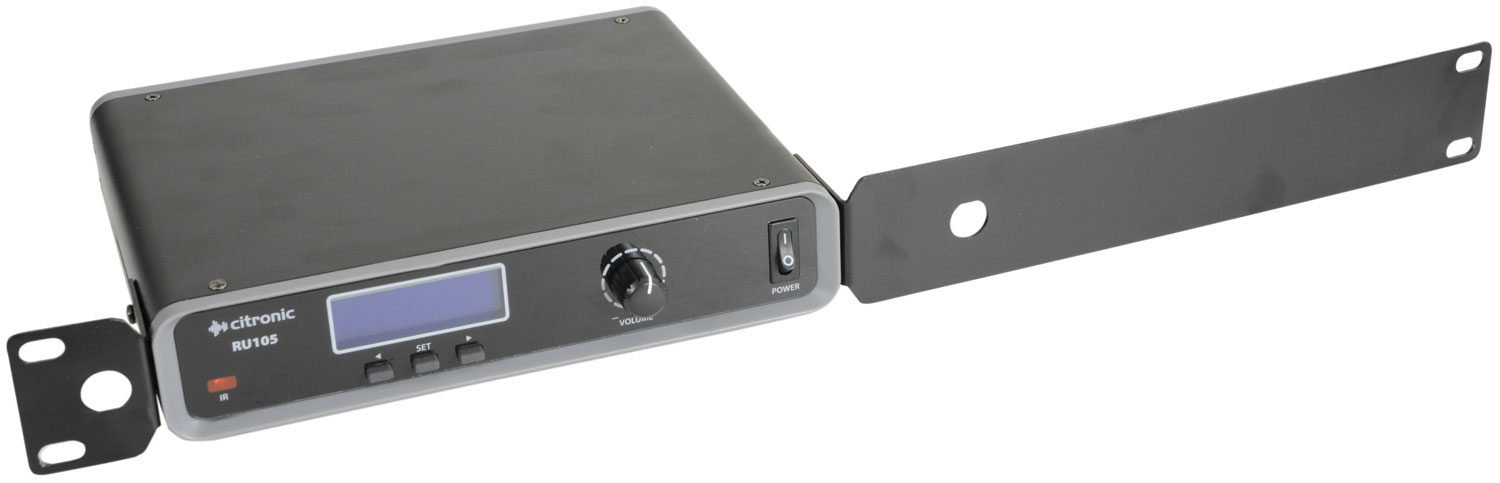

Front of Recever with 19 inch Rack Mount Ears RU105-N

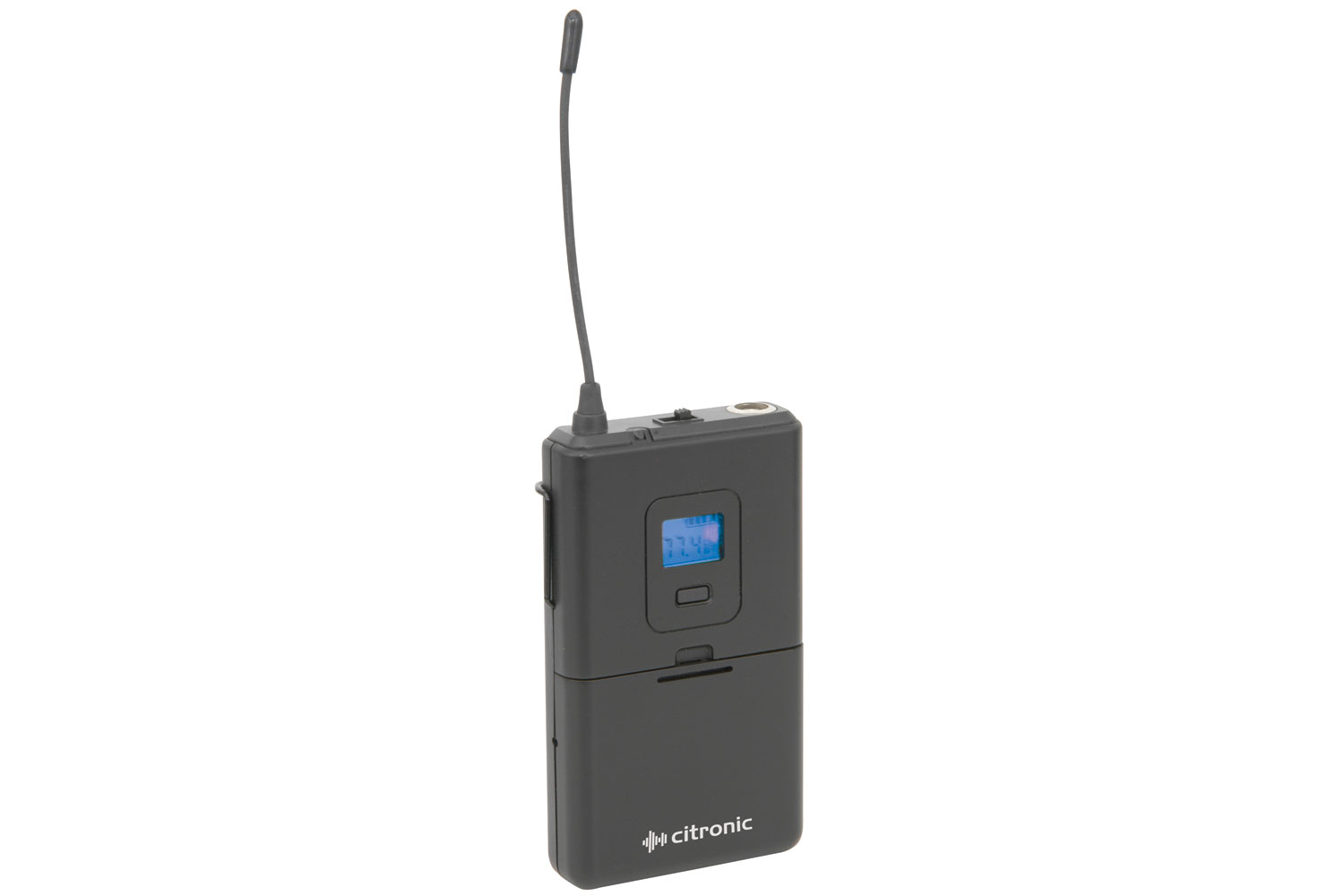

Belt Pack Transmitter RU105-N

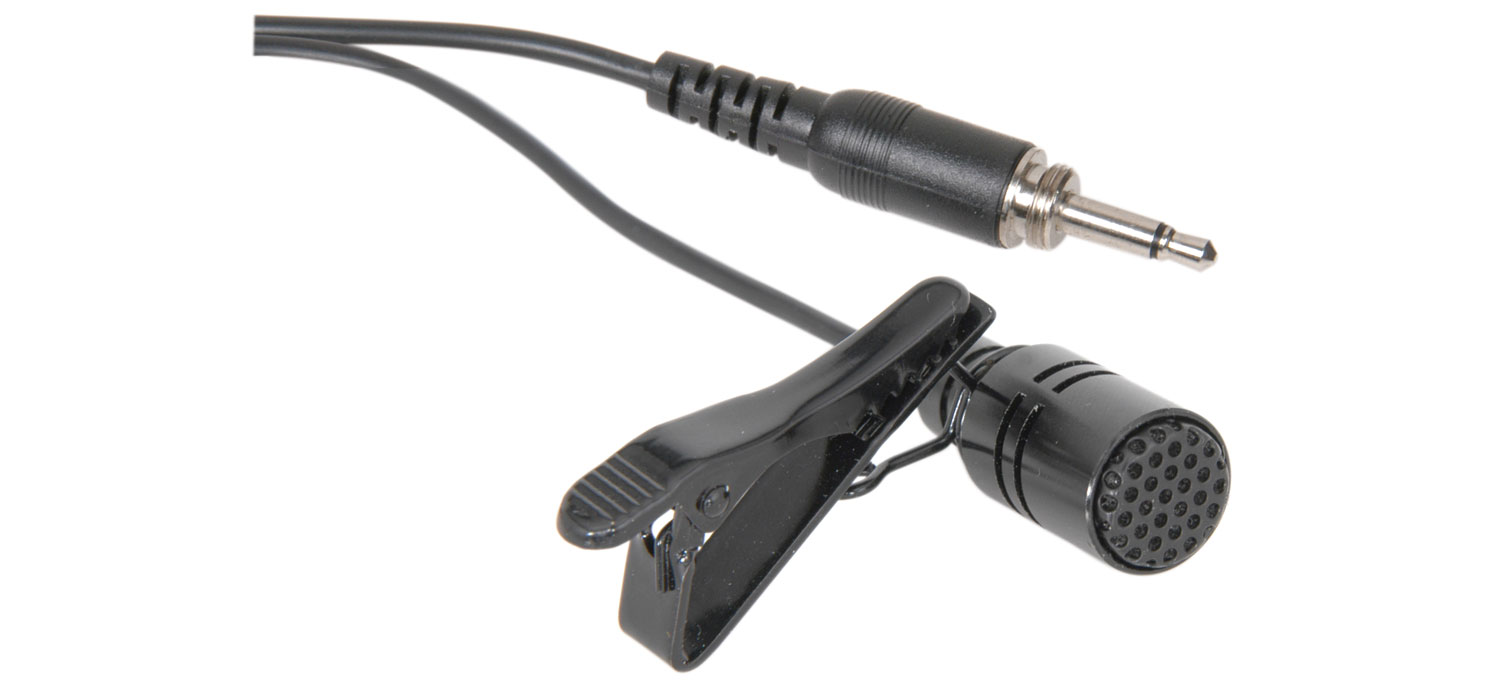

Lavalier microphone RU105-N

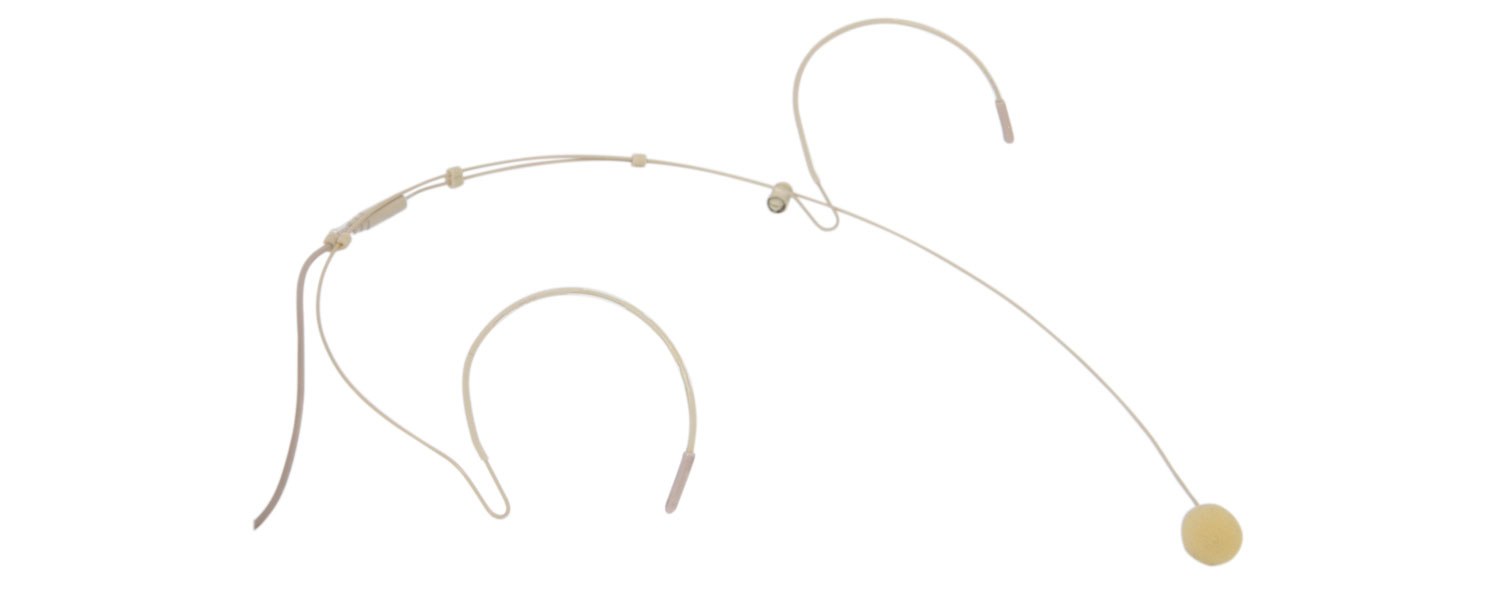

Neckband microphone RU105-N

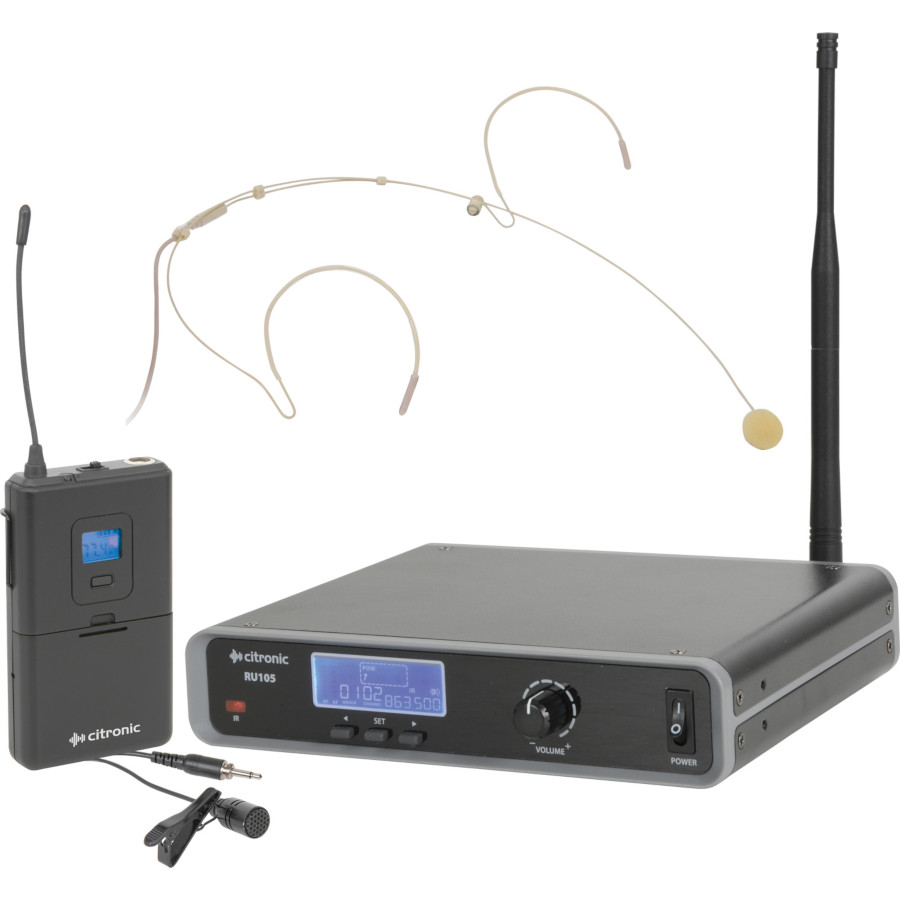

System RU105-N

Specification

Power supply 12-18Vdc, 350mA (mains adaptor included)
Batteries 2 x AA (for transmitter - included)
Carrier frequency 863 - 865MHz (81 selectable frequencies)
Range 60m
Signal to noise ratio >105dB
THD <0.5% @ 1KHz
Frequency response 50Hz-18KHz ±1 dB
Image rejection >85dB
Output impedance 2.2k Ohms
Output level 400mV (balanced), 200mV (unbalanced)
Dimensions receiver 44 x 198 x 190mm
Weight receiver 710g
Dimensions transmitter 110 x 67 x 24mm
Weight transmitter transmitter 75g (with no battery)
