White TV / Radio / Sat 1 / Sat 2

Item Code : 304264 - NM T W Quad



Product Details

Triax™   Triax Euro Module White

Triax - White TV / Radio / Sat 1 / Sat 2

Item Code: 304264 - NM T W Quad

Brand: Triax

Manufacturer: Triax

Quick Reference links for Triax Euro module System.

Description:

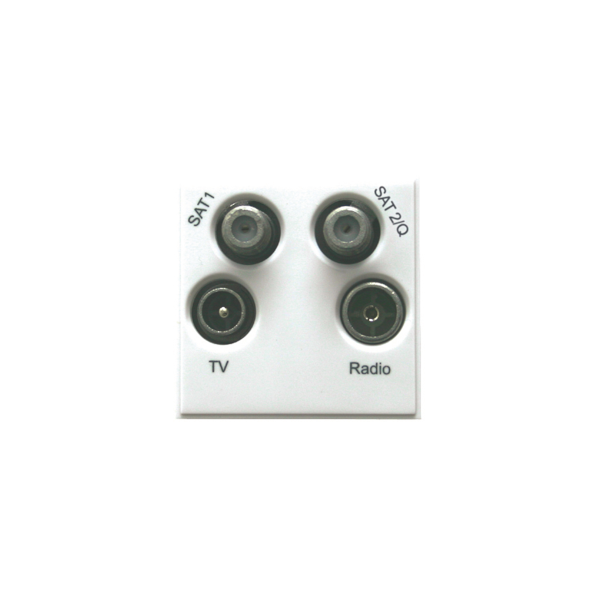

This euro module has 4 ports TV, Sat 1, Sat2/Q, Radio, and requires two coaxial feed cables. This module has the size name of `Full module` with a size of 50 x 50mm.

Quad (TV/Radio/Sat I/Sat II) Module White (50 x 50mm)

Specifications

ORDER INFORMATION
EAN Number 5702663042643
CHARACTERISTICS
Return Path 5...2400 MHz
FREQUENCY
Frequency Range FM 87.5...230 MHz
Frequency Range TV 470...862 MHz
Frequency Range SAT 950...2300 MHz
Frequency Range SAT 2 5...2400 MHz
LOSS
Through Loss IN-FM 3.0 dB
Through Loss IN-TV 2.5 dB
Through Loss IN-SAT 3.0 (1.5 @SAT2) dB
OPERATIONAL
DC Passthrough SAT Yes
CONNECTORS
Connector FM IEC-female
Connector TV IEC-male
Connector SAT F-female
MECHANICAL
Design UK Grid style, 50x50mm
Product Height 50 mm
Product Width 50 mm
Colour White
Net Weight 0,095 kg
Tara Weight 0,019 kg
Total Weight 0,114 kg
Remarks Screened,Two Terminal and Clamp cable entries Fits 15mm Patress Return normally used as SAT 2DC through power On SAT Return
