XLR : Chassis Socket 3 Pin, cable screw fix : NC3FD-S-1-B

Item Code : NC3FD-S-1-B



Product Details

Neutrik™   XLR Connectors

Neutrik - XLR : Chassis Socket 3 Pin, cable screw fix : NC3FD-S-1-B

Item Code: NC3FD-S-1-B

Brand: Neutrik

Manufacturer: Neutrik

XLR : Chassis Socket 3 Pin, cable screw fix : NC3FD-S-1-B

Description

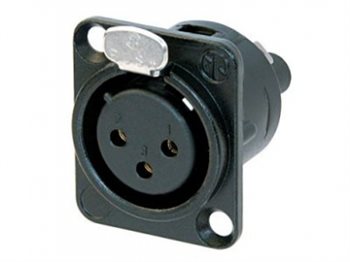

XLR 3 Pin Female Chassis Screw Term Black Body Gold Pins

NC3FD-S-1-B

3 pole female receptacle
D-size metal body
Screw terminals accommodating wire range 0.14mm to 0.5mm (AWG 26 -20)
Black metal housing
Gold contacts
UL recognized component

Specification

Connector Type XLR
Gender female
Body colour Black
Contacts gold
Rated current per contact 3 A
Dielectric strength 1.5 kV dc
Rated voltage 50 V
Wire size 0.14 mm - 0.5 mm
Wire size 26 AWG - 20 AWG
Wiring Screw terminals
Locking device latch lock
Mounting direction front
Chassis shape D
Protection class IP 40
