Neutrik - Chassis XLR 3 pin, Solder Cup - NC3MD-LX-BAG
Item Code : Neutrik - Chassis XLR 3 pin Female, Solder Cup - NC3FD-LX-BAG
Product Details
XLR Connection Patch Panels
Neutrik - Neutrik - Chassis XLR 3 pin, Solder Cup - NC3MD-LX-BAG
Item Code: Neutrik - Chassis XLR 3 pin Female, Solder Cup - NC3FD-LX-BAG
Brand: Neutrik
Manufacturer: Neutrik
Neutrik - Chassis XLR 3 pin Female, Solder Cup - NC3FD-LX-BAG
Description

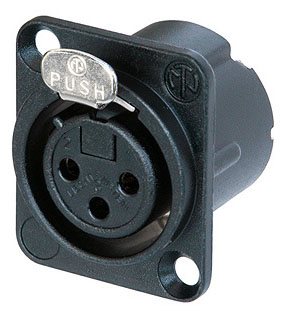

NC3FD-LX-BAG 3 pin XLR chassis connector, black D-size flange, countersunk thru holes, solder cup termination.The XLR panel mount connectors are the standard chassis connectors for Microphone / amplifier interconnections.
The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding.
Features
- All metal housing offers best overall RF protection and electromagnetic shielding
- New duplex ground contact for excellent contact integrity between chassis and cable connector
- Unique cage type female contact on 3 pole version increases conductivity and reduces wear on the mated male contact
- Female contact incorporates a solder barrier to prevent solder running into the contact mating area
- Larger solder contacts for easier termination
- Optional connection to easily join pin1 to chassis ground
- D-style housing provides installation compatibility with industry standard D mounting dimensions
