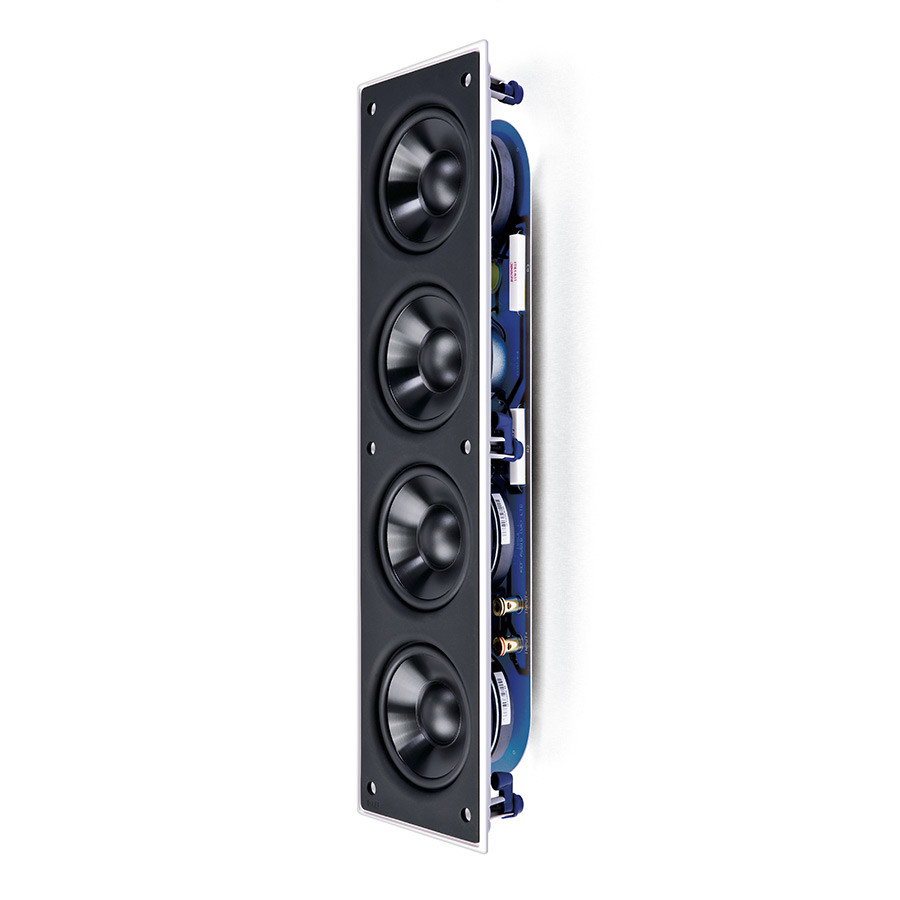

KEF - In Wall 4 ohm 490x128x81mm - Ci4100QL-THX
Item Code : Ci4100QL-THX
Special Notice: This Item is only sold when part of an installed Audio System.
Special Notice: This Item is only sold when part of an installed Audio System.
Architectural Speaker
KEF - KEF - In Wall 4 ohm 490x128x81mm - Ci4100QL-THX
Item Code: Ci4100QL-THX
Bar Code: 637203211164
Brand: KEF
Manufacturer: KEF
Important Notice.
This item is a trade only supplied & Installed Item.
This selected KEF Loudspeaker is only available for sale when part of an installed Audio Visual System, if it is required for you to purchase this as an individual item then please follow this link DealerLocator , to establish your nearest KEF recommended Retailers.
Description
The Ci4100QL-THX is an in-wall speaker certified to THX SELECT2 standard. A deep understanding of the filmmaking process and surround sound is at the very heart of every THX certified 2.1, 5.1 and 7.1 speaker system.
Featuring KEF’s sophisticated ’sit anywhere’ Uni-Q driver array, which places the tweeter in the acoustic centre of the bass/midrange cone, this allows both the tweeter and woofer to act as a single point source that disperses the sound widely and evenly throughout the room. Together with the discreet Ultra Thin Bezel (UTB) design, offering the slimmest possible visible rim around the speaker, the Ci Q Series range gives you tremendous freedom to position the speakers where you please.
Ci4100QL-THX is an in-wall speaker certified to THX SELECT2 standard. A deep understanding of the filmmaking process and surround sound is at the very heart of every THX certified 2.1, 5.1 and 7.1 speaker system. Engineered with design characteristics of professional studio speakers, THX recreates the tonal balance of the filmmaker's final mix in your living room. The results? Action sequences are impactful, and dialogue-driven moments are natural and engaging.
THX certified in-wall speakers deliver the appropriate frequency response and high output and imaging quality of a traditional box speaker. This provides the best of both worlds - THX surround sound performance from components that blend harmoniously with any room decor.
Easy to install and stunning to behold (both visually and acoustically), KEF's all-new range of rectangular in-wall speakers are designed and engineered for serious music and home theater systems.
Technical Drawing Ci4100QL-THX
Specification
Model | Ci4100QLb | |
Colour | White | |
Nominal Impedance | 4 Ω | |
Sensitivity | 89dB | |
Crossover frequency | 2.2kHz | |
Frequency Response | 55Hz - 28kHz (±6dB) open backed | |
Drive Units | LF: 3 x 100mm (4 in.) MF: 100mm (4 in.) HF: 19mm (0.75 in.) Uni-Q | |
Recommended Amplifier Power | 10-150W | |
Product external dimensions | H x W x D : 490 x 128 x 81 mm (19.29 x 5.04 x 3.19 in.) | |
Cut-out dimensions | H x W : 476 x 114mm (18.74 x 4.49 in.) | |
Mounting depth from surface | 76mm (3.0 in.) | |
Net Weight | 3 kg (6.61 lbs) |
