16 TVI + 4 IP Camera, 2..4MP DVR, TM-116H

Item Code : TM-116H



Special Notice: Note: Price does not include Hard Disk Drive (HDD)

Special Notice: Note: Price does not include Hard Disk Drive (HDD)

Product Details

Technomate™   Digital Video Recorders (DVR) 4 Mege Pixel

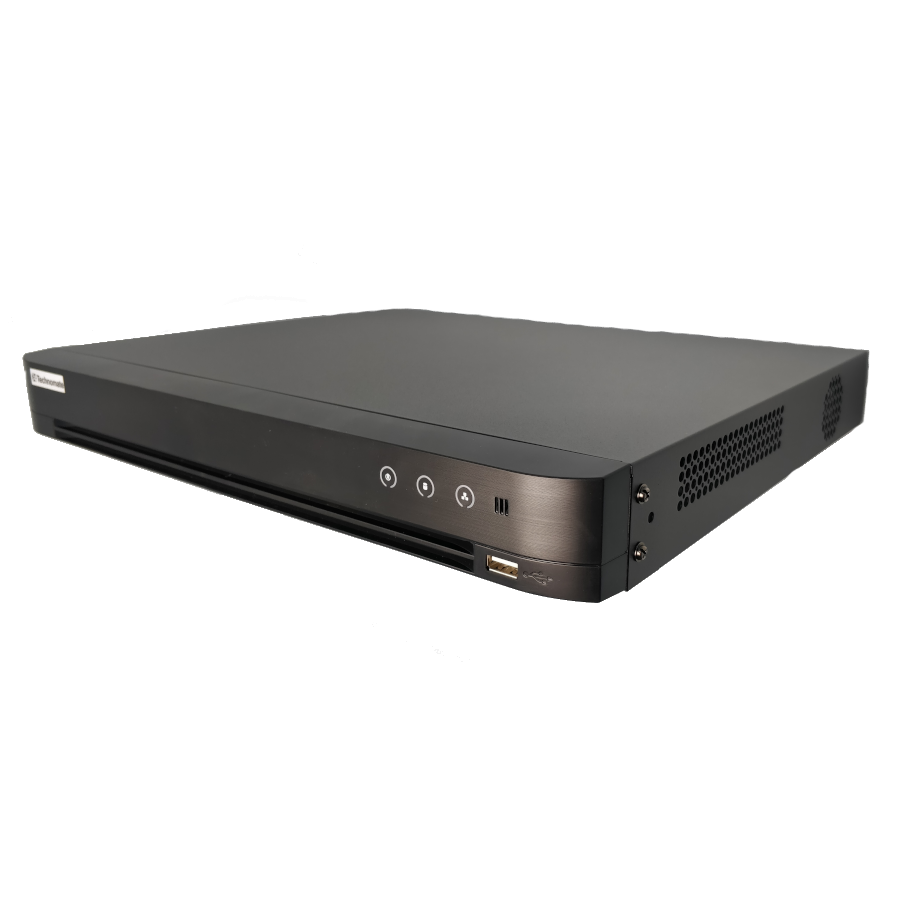

Technomate - 16 TVI + 4 IP Camera, 2..4MP DVR, TM-116H

Item Code: TM-116H

Brand: Technomate

Manufacturer: Hikvision


Description

Technomate 16 Channel Digital Video Recorder type 4MP.



• Cautionary Note:

Price does not include Hard Disk Drive (HDD)

We Stock HDD of Seagate Manufacturer, Type SkyHawk in sizes of:-

1 Terabyte, 2 Terabyte, 3 Terabyte, 4 Terabyte, 6 Terabyte, 8 Terabyte.

Please see Hard Disk Drives (HDDs)

Features

  • Connectable to HD-TVI, AHD, IP, CVI & analogue cameras
  • Up to 1ch 4MP ONVIF conformant IP cameras input
  • Long distance transmission over twisted pair cable & coax cable
  • H.265+ compression improves encoding efficiency by up to 50% & reduces data storage costs
  • HDMI output at up to 1920 × 1080
  • Smart search for efficient playback

Detailed Veiw for connections to TM-116H

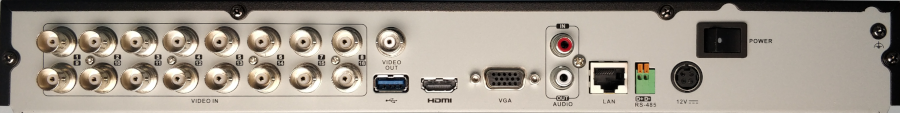

Rear View of TM-116H

Specification

Recording
Encoding resolution Main stream:
When 1080p lite mode not enabled:
For 4 MP stream access:
4 MP lite@15 fps;
1080p lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
For 3 MP stream access:
3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps
For 1080p stream access:
1080p/720p@15 fps;
VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
For 720p stream access:
720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
When 1080p Lite mode enabled:
4 MP lite/3 MP@15 fps;
1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Video bit rate 32 Kbps to 6 Mbps
Dual stream Support
Stream type Video, Video & Audio
Audio compression G.711u
Audio bit rate 64 Kbps
Video and Audio
IP video input 2-ch (up to 10-ch)
IP enhanced mode on:
4-ch (up to 12-ch),
each up to 4 Mbps
HDTVI input 4 MP,
3 MP,
1080p@30 fps,
1080p@25 fps,
720p@60 fps,
720p@50 fps,
720p@30 fps,
720p@25 fps
AHD input 4 MP,
1080p@25 fps,
1080p@30 fps,
720p@25 fps,
720p@30 fps
HDCVI input 4 MP,
1080p@25 fps,
1080p@30 fps,
720p@25 fps,
720p@30 fps
CVBS input PAL/NTSC
Audio input 1-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio output 1-ch, RCA (Linear, 1 KΩ)
Two-way audio 1-ch, RCA (2.0 Vp-p, 1 KΩ)
(using the first audio input)
Synchronous play back 8-ch
HDMI/VGA output 1-ch,
1920 × 1080/60Hz,
1280 × 1024/60Hz,
1280 × 720/60Hz,
1024 × 768/60Hz,
HDMI/VGA simultaneous output
CVBS output 1-ch, BNC (1.0 Vp-p, 75 Ω),
resolution:
PAL: 704 × 576,
NTSC: 704 × 480,
Network
Remote connections 128
Network interface 1, RJ45 10M/100M self-adaptive Ethernet interface
Auxiliary interface
SATA 2 SATA interfaces
Capacity Up to 10 TB capacity for each disk
Alarm in/out N/A
USB interface 2 × USB 2.0
General
Power supply 12 VDC
Working temperature -10 °C to +55 °C (+14 °F to +131 °F)
Working humidity 10% to 90%
Weights (without HDD) ≤ 1.78 kg (3.9 lb)
Consumption(without HDD) ≤ 25 W
Dimensions(W × D × H) 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
