Compact 4 Channel Mixer with Blue Tooth and DSP Effects

Item Code : CSD-4



Special Notice: This Item is only sold when part of an installed Audio System.

Special Notice: This Item is only sold when part of an installed Audio System.

Product Details

Citronic™   Audio Mixers

Citronic - Compact 4 Channel Mixer with Blue Tooth and DSP Effects

Item Code: CSD-4

Brand: Citronic

Manufacturer: Citronic


Description

CSD Compact Mixers with BT and DSP Effects

Compact format audio mixer with 2 mono input channels and a stereo line input. Each mono channel has a combo XLR/jack input with individually switchable mic/instrument impedance and +48V phantom power for the XLR.

Input channels have High/Low EQ and Pan controls.

The B/T pairing button enables wireless connection to a smart phone or tablet for playback.

THe CSD-4 mixer feature a 16 program DSP effects section with digital reverbs, delays and modulation effects for vocals and instruments.

Output is delivered on a pair of balanced XLR connectors and offers very low noise operation for high quality studio or live performances.

Features

  • B/T wireless pairing for smartphone or tablet
  • 16 program, 24-bit DSP effects engine
  • Individually switchable +48V phantom power
  • Supplied with DC power adaptor

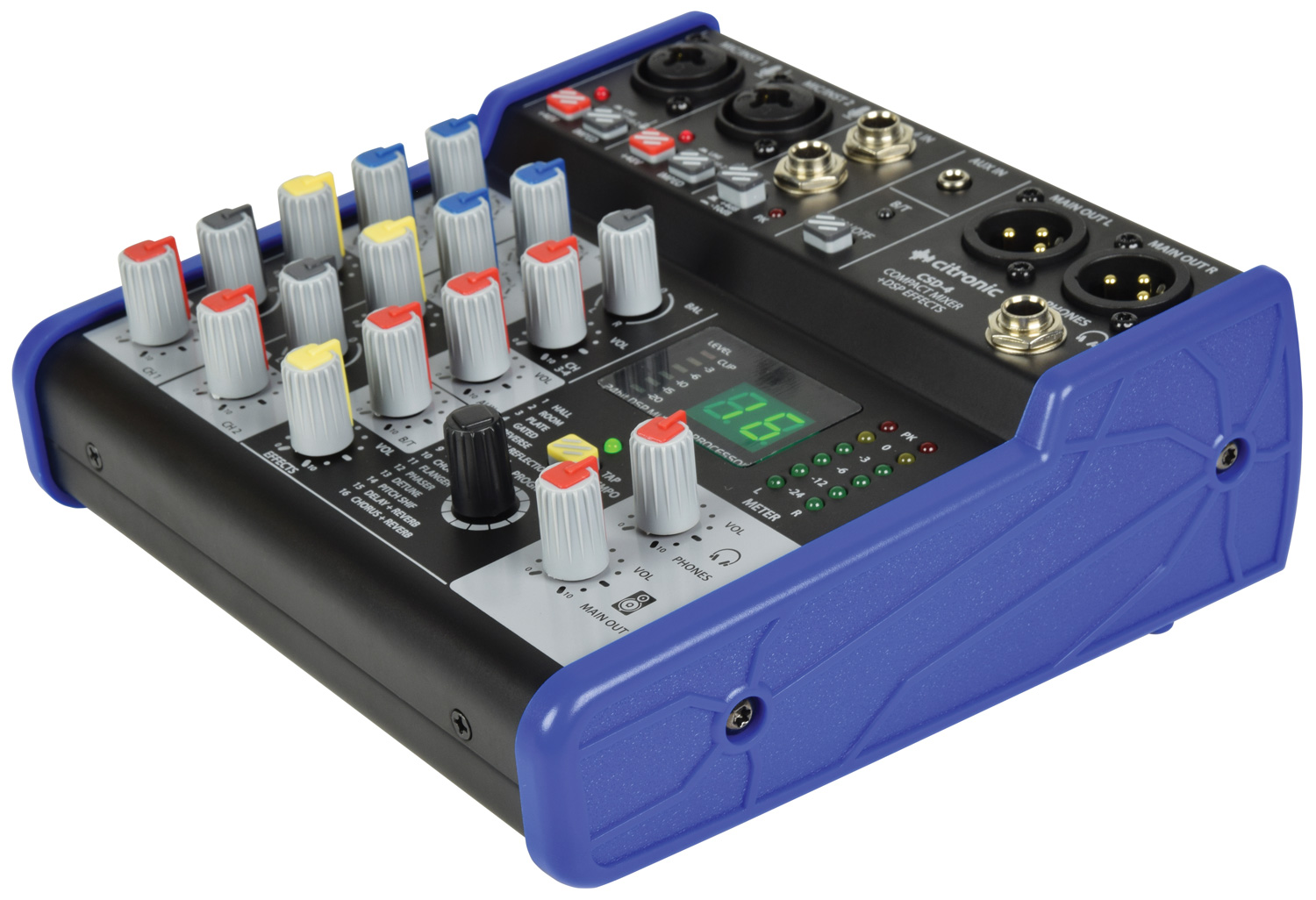

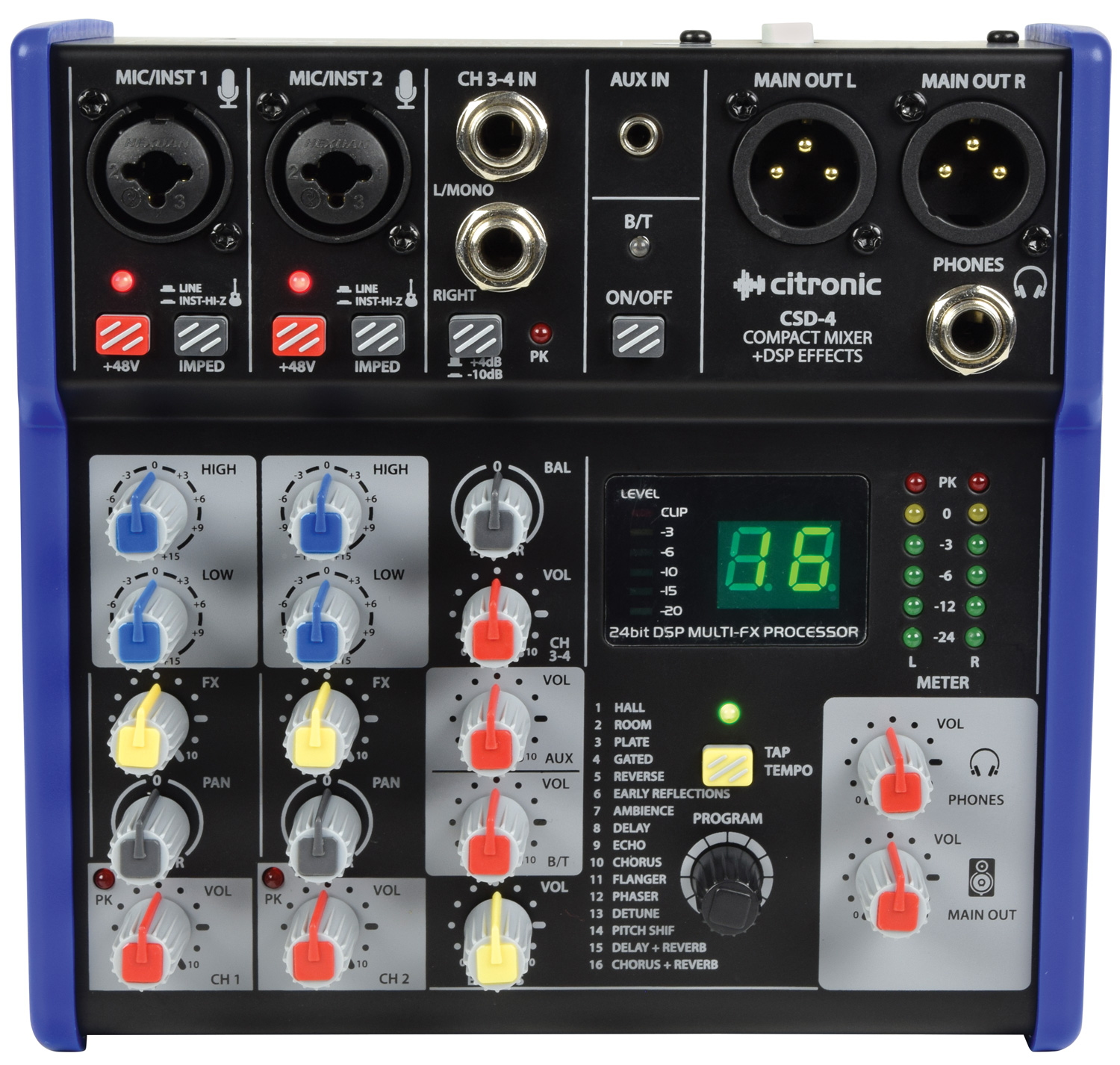

Perspective View CSD-4

Perspective View CSD-4
Power Supply CSD-4

Specification

Power supply 5Vdc 1A (adaptor included)
Power consumption 5W Maximum
Equalisation Low ±15dB @ 80Hz
Equalisation High ±15dB @ 12kHz
Phantom power +48V individually switchable
for XLR inputs only
Effects 16 program DSP
(24-bit sigma-delta, 40kHz)
Audio source Blue Tooth wireless receiver
Blue Tooth version wireless version 2.1 + EDR
Inputs 2 x combo XLR/jack
1 x Stereo jack
Input impedance for mic. 2k Ohms
Input impedance for instrument 1M Ohms
Input impedance for line 20k Ohms
Frequency response 20Hz - 20kHz ±0.5B
THD +N <0.03% @ 1kHz
Dynamic range 102dB
Crosstalk 92dB Stereo
Output Left + Right balanced XLR
Output impedance 120 Ohms
Output level 3V RMS Maximum
Dimensions 171 x 166 x 66mm
Weight 0.92Kg
