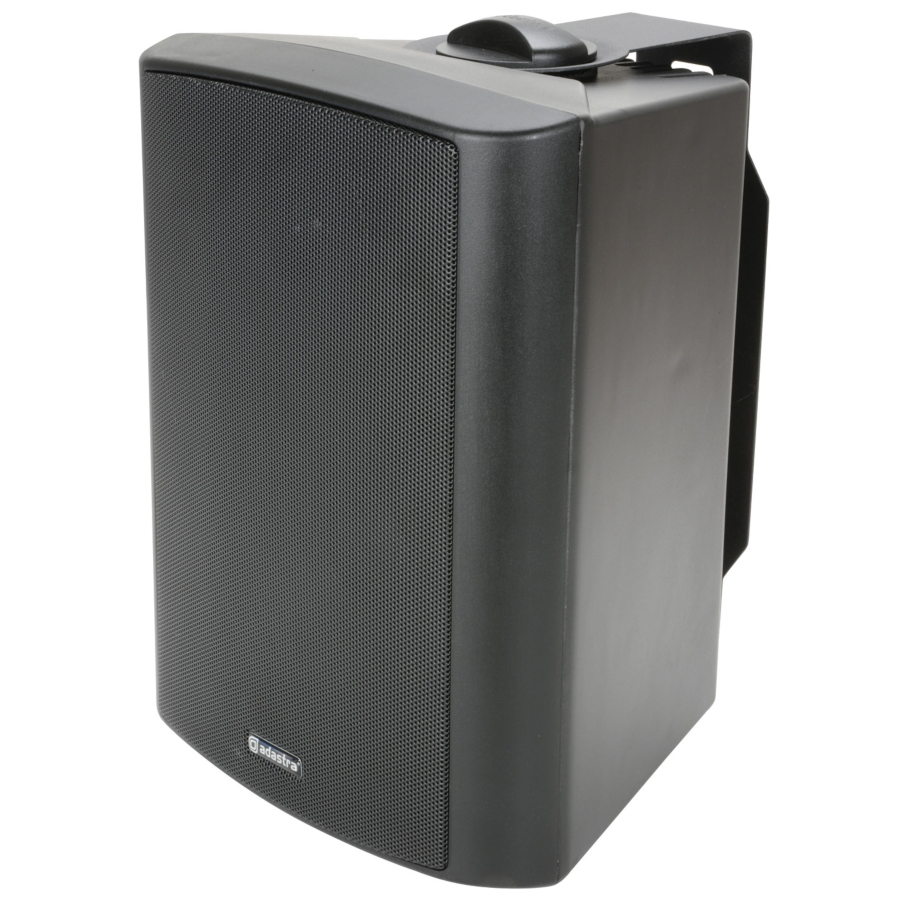

In Door Passive 6.5 inch Speaker 8ohm or 100V Black : Adastra BC6V-B
Item Code : BC6V-B
Product Details
100 Volt Line Wall Loud Speakers
adastra - In Door Passive 6.5 inch Speaker 8ohm or 100V Black : Adastra BC6V-B
Item Code: BC6V-B
Brand: adastra
Manufacturer: adastra
Description
BC Series - 100V Indoor Speakers
A range of indoor speakers, with ABS enclosures and a sturdy metal grille. Suitable for free standing or wall mounting via adjustable fixing bracket. The trapezoidal design allows for the enclosures to be mounted neatly into corners, making them ideal for most applications
Features
- 2 way speaker system with crossover network
- Rotary selector switch for 100V line tappings or 8 Ohms operation
- Wall mounting bracket supplied
- Alternative M6 threaded mounting points
- Spring terminal connection
- Supplied singly
- Colour White
- Supplied in box and sold in singles

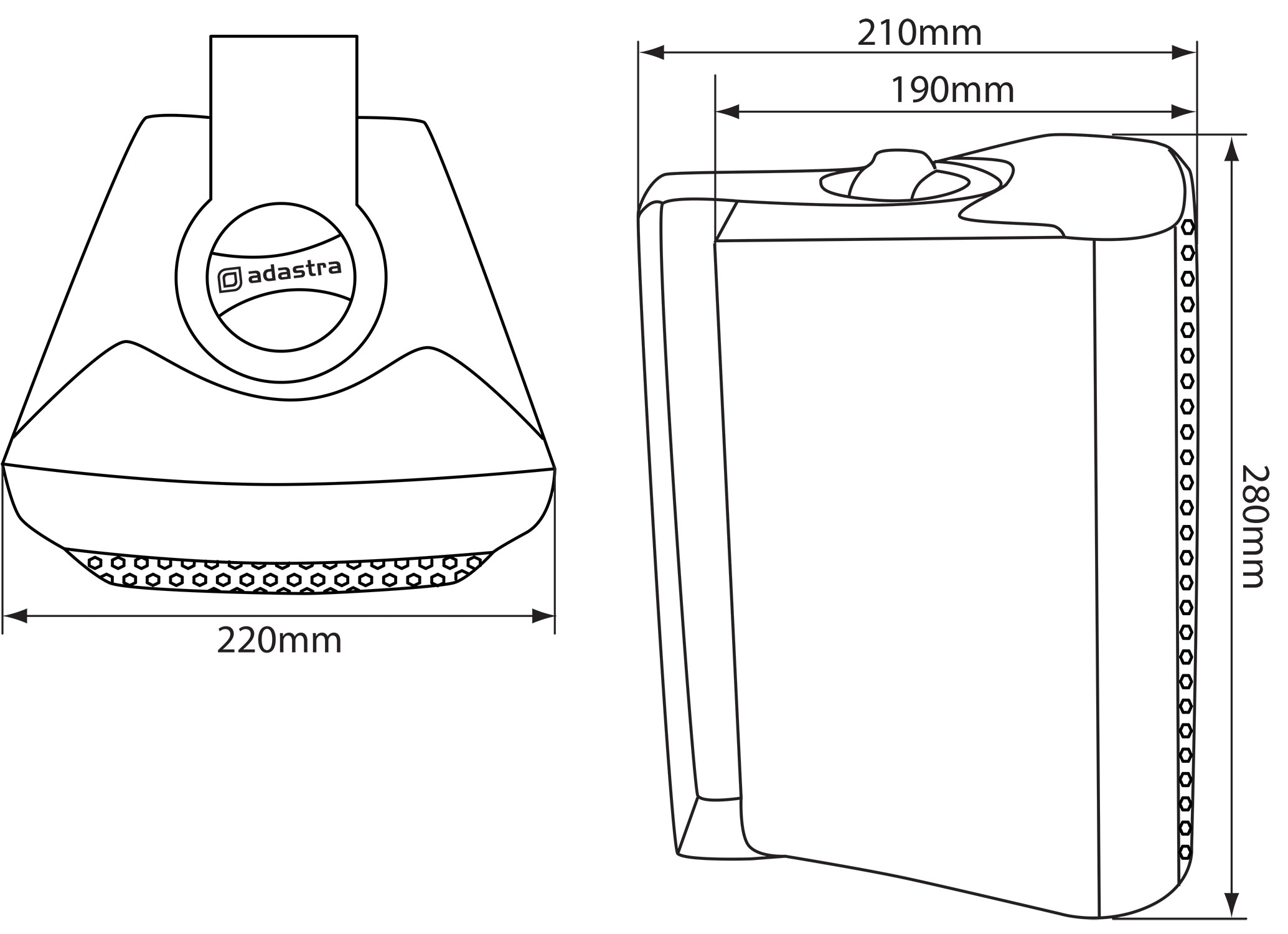

Technical drawing BC6V-B
|
|
|
Specification
| Colour | Black | |
| Woofer | 165mmØ (6.5 inch) reinforced paper cone | |
| Tweeter | 25mm (1'') balanced dome | |
| Frequency response | 90Hz - 20kHz | |
| Power handling : max. | 120W | |
| Power handling : rms | 60W | |
| SPL @ 1W/1m | 89dB | |
| Tappings | 5/10/20/40W + 8 Ohms | |
| Impedance : 100V | 250, 500, 1k, 2k Ohms | |
| Dimensions | 220 x 280 x 210mm | |
| Weight | 3.08kg | |
| Package type | Gift Box | |
| Package dimensions | 246 x 328 x 218mm | |
| Package quantity | 1 unit (one individual speaker) |
