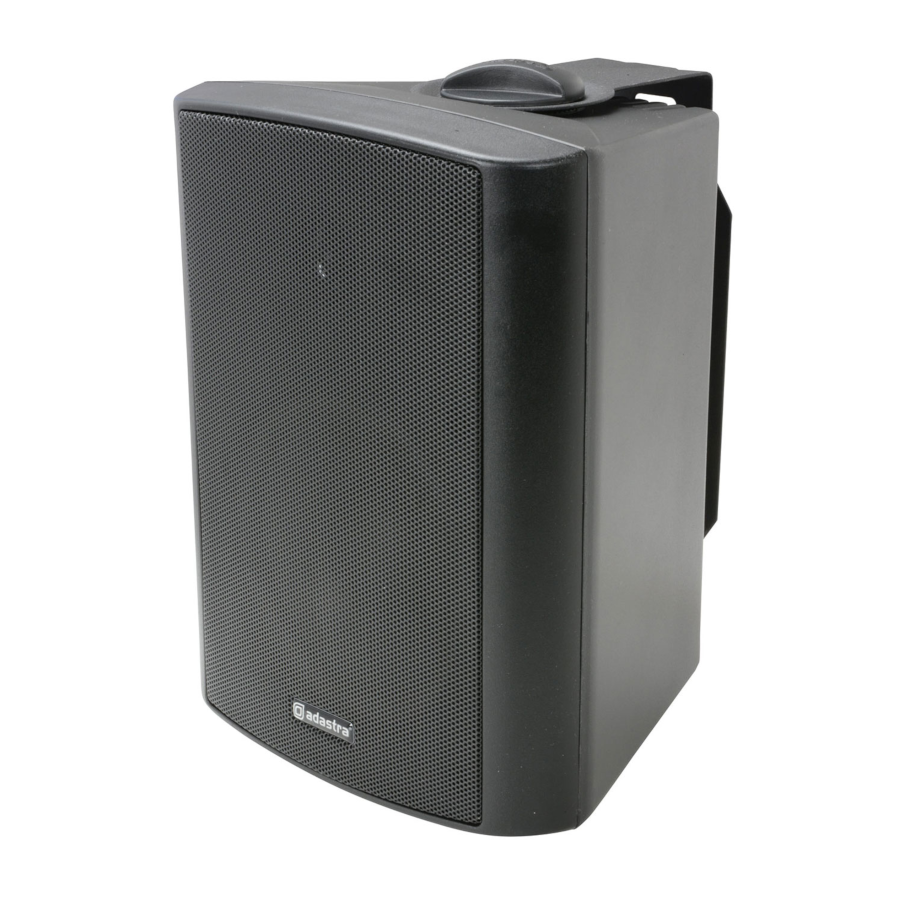

In Door Passive 5.25 inch Speaker 8ohm or 100V Black : Adastra BC5V-B

Item Code : BC5V-B



Product Details

adastra™   100 Volt Line Wall Loud Speakers

adastra - In Door Passive 5.25 inch Speaker 8ohm or 100V Black : Adastra BC5V-B

Item Code: BC5V-B

Brand: adastra

Manufacturer: adastra


Description

BC Series - 100V Indoor Speakers

A range of indoor speakers, with ABS enclosures and a sturdy metal grille. Suitable for free standing or wall mounting via adjustable fixing bracket. The trapezoidal design allows for the enclosures to be mounted neatly into corners, making them ideal for most applications

Features

  • 2 way speaker system with crossover network
  • Rotary selector switch for 100V line tappings or 8 Ohms operation
  • Wall mounting bracket supplied
  • Alternative M6 threaded mounting points
  • Spring terminal connection
  • Supplied singly
  • Colour Black
  • Supplied in box and sold in singles

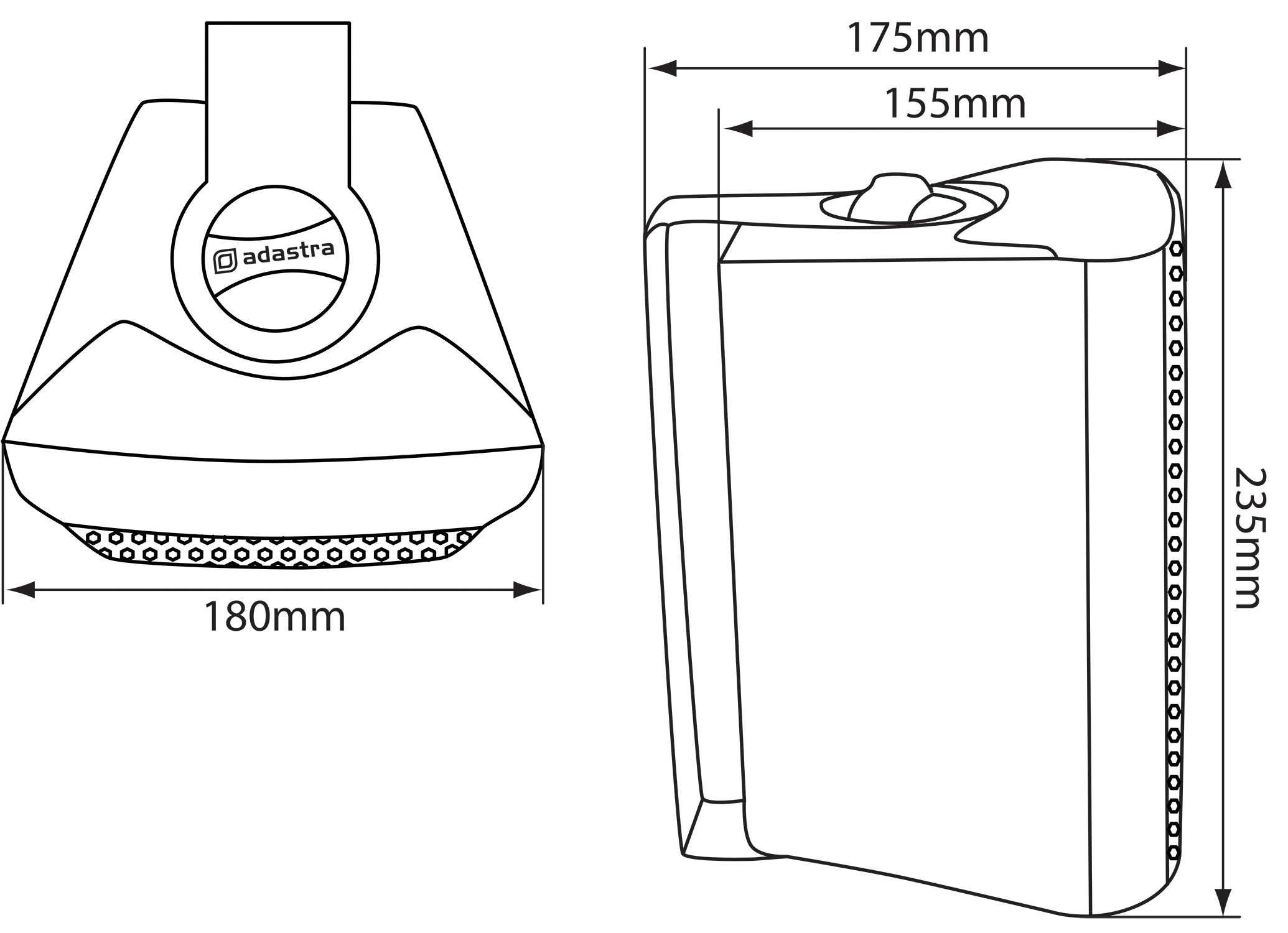

Technical drawing BC5V-B

Technical drawing with dimensions of speaker BC5V-B

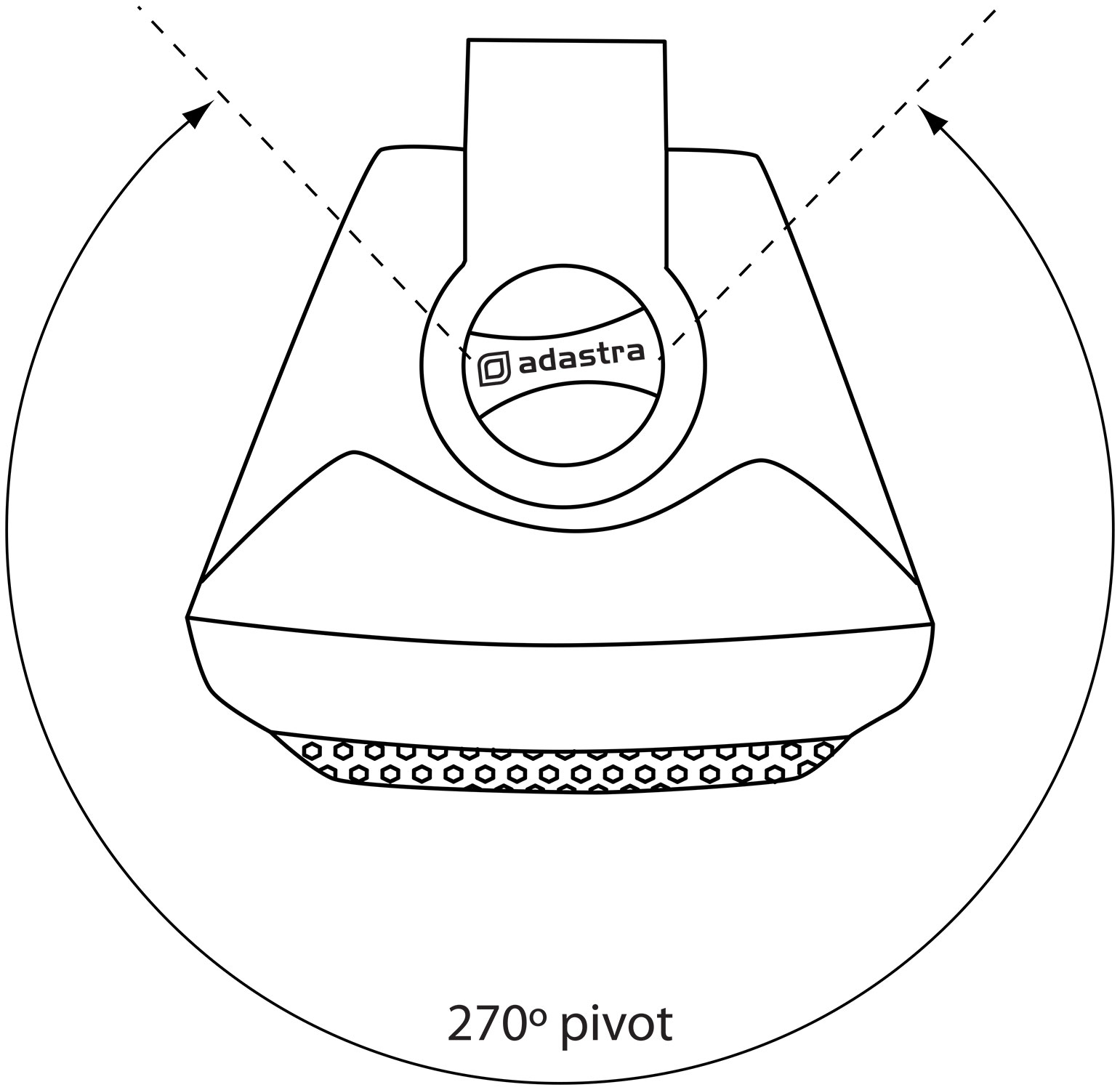

Speaker adjustment BC5V-B

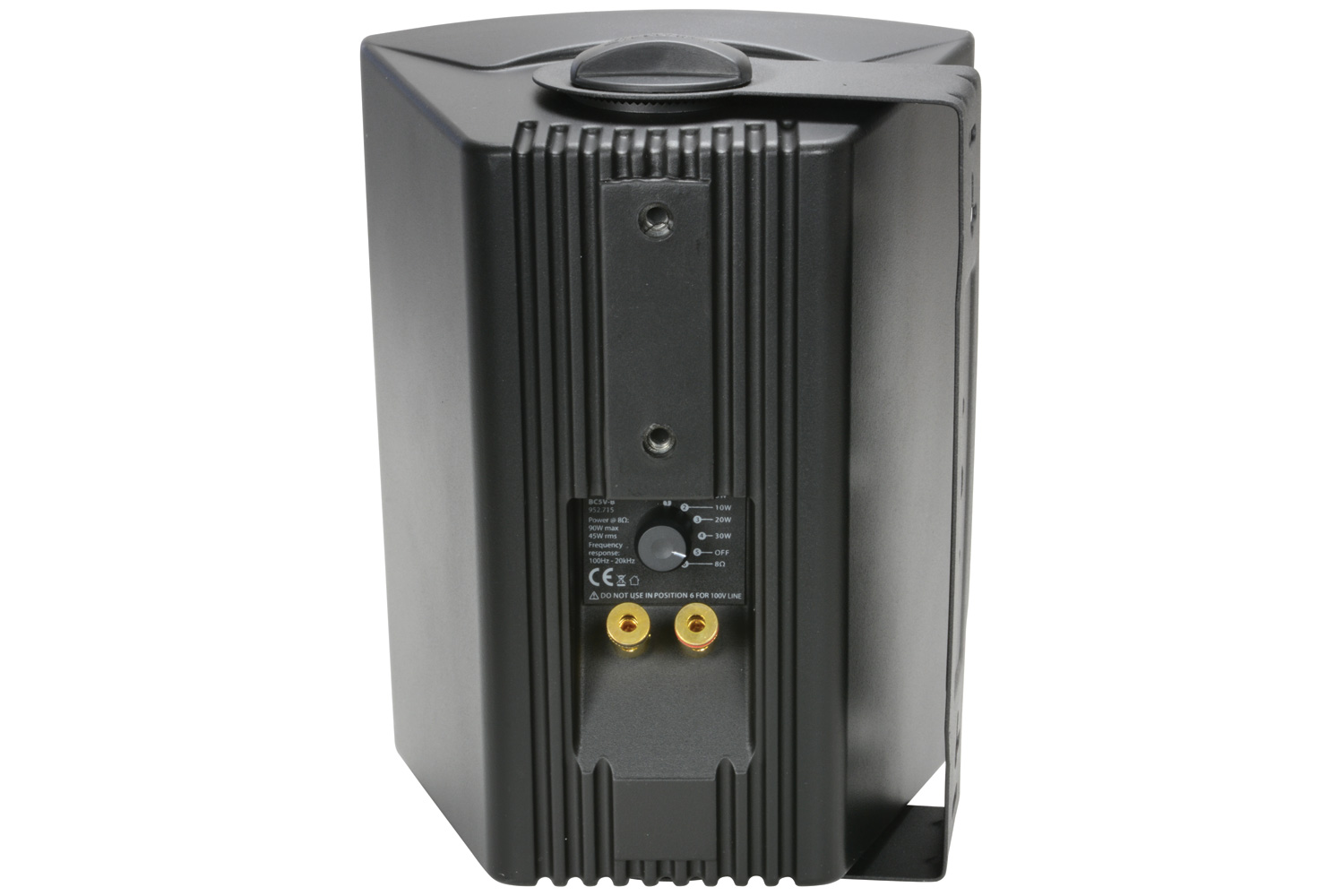

Rear view BC5V-B

Specification

Colour Black
Woofer 130mmØ (5.25 inch) reinforced paper cone
Tweeter 25mm (1 inch) balanced dome
Frequency response 100Hz - 20kHz
Power handling : max. 90W
Power handling : rms 45W
SPL @ 1W/1m 89dB
Tappings 5/10/20/30W + 8 Ohms
Impedance : 100V 333, 500, 1k, 2k Ohms
Dimensions 180 x 235 x 175mm
Weight 2.38kg
Package type Gift Box
Package dimensions 185 x 275 x 205mm
Package quantity 1 unit (one individual speaker)
