Denon HEOS - 4 Zone Serio Amplifier - HEOS DRIVE HS2
Item Code : HEOS DRIVE HS2
Special Notice: This Item is only sold when part of an installed Audio System.
Special Notice: This Item is only sold when part of an installed Audio System.
Zoned Mixer Amplifier
Denon - Denon HEOS - 4 Zone Serio Amplifier - HEOS DRIVE HS2
Item Code: HEOS DRIVE HS2
Brand: Denon
Manufacturer: KEF
Important Notice.
This item is a trade only supplied & Installed Item.
This selected Zoned Amplifier is only available for sale when part of an installed Audio Visual System, if it is required for you to purchase this as an individual item then please follow this link DENON UK DealerLocator , to establish your nearest DENON recommended Dealer.
Description

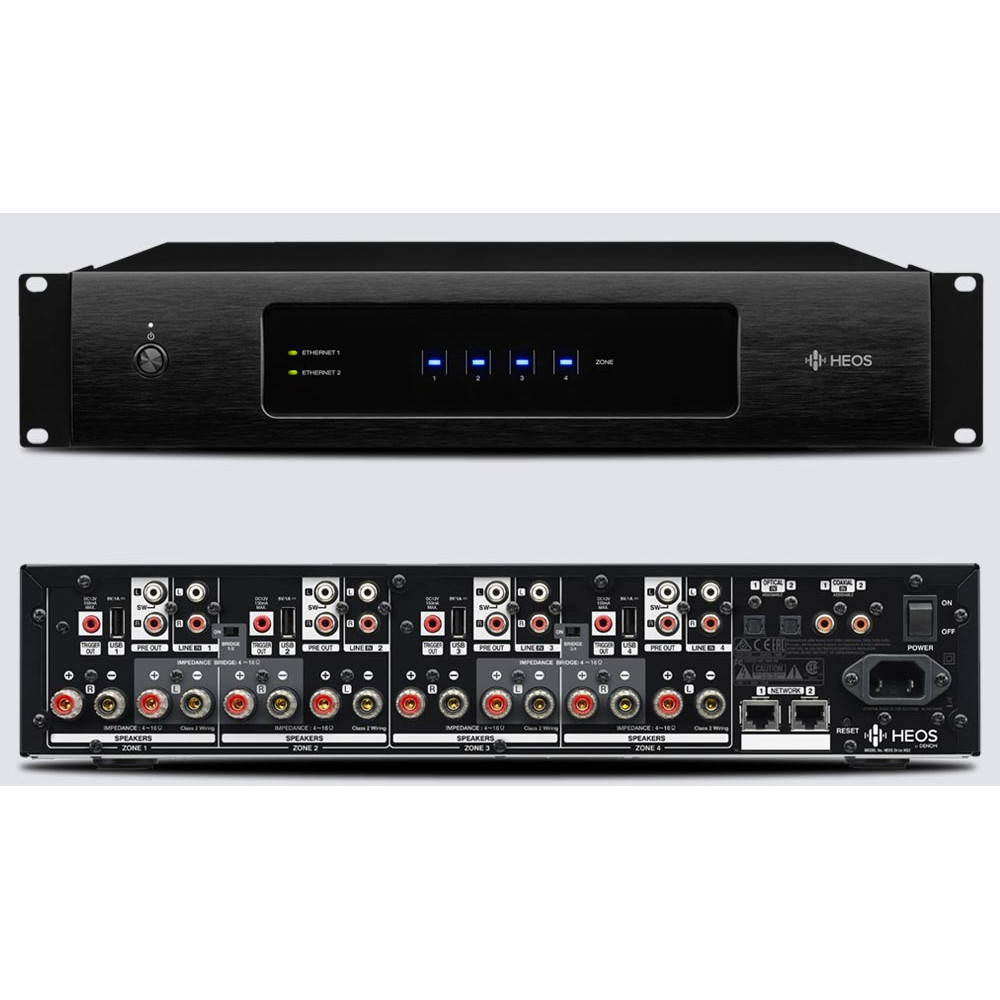

Whole home multi-zone audio in a single chassis.
Designed by custom integration specialists for custom integration professionals, HEOS Drive HS2 is a unique 4 zone whole home audio distribution system with 8 channels of Class D amplification, all in a 2RU single chassis that features both Dolby Digital and Dolby Digital+ decoding with stereo downmixing.
Rated at 60 watts per channel into each of the 8 channels (20Hz~20kHz, .05% THD, 8 ohms, All Channels Driven), 1 or 2 stereo amp pairs can be bridged for single channel high power output (130 watts), and the HEOS Drive HS2 features low impedance drive capability (4 ohms).
Each zone features a stereo pair of pre-amp outputs, and each zone can be configured for stereo or mixed mono output. The matrix switching system features 2 optical digital inputs, 2 coaxial digital inputs and 4 analog stereo inputs, any of which can be assigned to any zone, and every zone features a dedicated USB port for connection to an external USB drive.
Equipped to handle virtually any combination of speaker configurations, HEOS Drive HS2 features built-in DSP high pass/low pass filters - set any output to full range, subwoofer or satellite speaker modes, with adjustable crossover points.
The speaker outputs feature 4-way binding posts that are compatible with banana plug terminations, and there are 4 12V trigger outputs. The chassis features quiet fan cooling for long term stability and operational reliability.
Dual RJ-45 Ethernet LAN ports are provided, for connection to the network and sharing the internet connection with other devices, and HEOS Drive HS2 is 3rd party control compatible.
HEOS Drive HS2 comes with removable feet and attachable rack ears, allowing rack or shelf placement.
Once installed and connected, HEOS Drive HS2 setup and configuration is fast and easy via our HEOS app (iOS and Android).
Features
- Whole home amplified multi-zone audio (4 HEOS zones)
- 8 Channels Class D digital amplification; 60 wpc 8 ohms; 4 ohms compatible; bridge mode
- Pre-amp outputs for each zone
- Dual RJ-45 Ethernet LAN ports
- Stereo/Mono selectable output
- Only 2RU high; removable rack ears included
- 3rd Party Controllable
- TV-Sound Grouping allows you to enjoy TV sound throughout the HEOS ecosystem
- Dolby Digital/Dolby Digital+ downmixing to stereo
Specification
Audio System | ||||
---|---|---|---|---|
Amplification | 8 Channels Class D Digital Amplification | 60 watts per channel (20Hz~20kHz, .05%THD, 8 ohms, All channels driven) | ||
Amplification | Bridged Amplifier Mode | 130 watts per channel | ||
Pre-Amplifier | 4 Pairs Stereo Pre-amp Outputs | Drive external power amplifiers | ||
USB | 4 USB Ports | 1 for each zone |
Music Sources | ||||
---|---|---|---|---|
Music Subscription Services | The HEOS app lets you choose from popular subscription streaming services including | Rhapsody, Pandora, Spotify, TuneIn, iHeartRadio, SiriusXM, also other services that offer DRM-free tracks. More services will be added soon. | ||
Internet Radio Stations | Choose from your favorite internet radio stations and listen streamed audio tracks of | MP3, AAC WMA . | ||
Music Formats Supported | HEOS Drive HS2 supports music files of:- | MP3 WMA purchased WMA downloads, AAC (MPEG4) FLAC (lossless) WAV. | ||
Sampling rates supported | 32 kHz, 44.1 kHz 48 kHz. | |||
Picture Formats Supported | HEOS Drive HS2 supports album art picture formats of | JPG, PNG, BMP GIF | ||
USB Drives Supported | HEOS Drive HS2 supports USB thumb drives via the built-in USB port. | Music content on a USB drive can be played back locally, or on any or all HEOS players on your network. | ||
Important Notice | Availability of music services may vary by region. Not all services may be available at time of purchase. Some services may be added or discontinued from time to time based on decisions of the music service providers or others. Visit usa.denon.com/us/heos for announcements and details |
Networking | ||||
---|---|---|---|---|
Wired Connection | Connect to the network using 1 of the 2 RJ-45 wired LAN ports. |
General | ||||
---|---|---|---|---|
Power Supply | 100~240 Volts AC, 50~60 Hz auto-switching | |||
What's In The Box | HEOS Drive HS2, AC power cord x 4, Ethernet Cable, Quick Start Guide, 2 rack ears | |||
Controls & Indicators | Power/standby; Ethernet status 1/2; Zones 1~4 active status | |||
Weight | 15.9 lbs; 7.2 Kg | |||
Multiple Language Support | English, French, Spanish | |||
Dimensions (H x W x D) | 88mm x 430mm x 402 mm (without rack ears) 88mm x 483mm x 402 mm (with rack ears) 3.5 x 17 x 15.6 inches (without rack ears) 3.5 x 19.125 x 15.6 inches (with rack ears) | |||
Operating Temperature Range | 41°F~95°F; 5°C~35°C | |||
Product Finish | Black |
